PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
1.55 MAX
.075
1 .360
4.) THE ABOVE UNIT IS A SEALED ASSEMBLY AND SHOULD BE RETURNED TO THE FACTORY SHOULD
SERVICE BE REQUIRED
A
RECOMMENDED TORQUE ON A 9/32 HEX: 75-85 IN-LBS
3
2 MOUNTING TORQUE ON A 5/8 HEX: 120-130 IN-LBS
1 DIMENSIONS SHOWN ARE FOR .36 WALL THICKNESS, COUNTERBORE FOR THICKER WALLS
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.01
XXX ±.005

ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
2
.79
.356
PORT PER MS33649-4
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
TITLE
DECIMALS X ± 0.3
XX ± 0.13

ANGLES 2 DEGREES
FILLETS AND RADII
0.07 - 0.13
2
REV
NR
ELECTRICAL CONNECTOR
CO-AXIAL
WITH RETAINING RING
120°
 .562

.454
DRAWN CHECKED
JDM 9/20/17 JDM 9/20/17

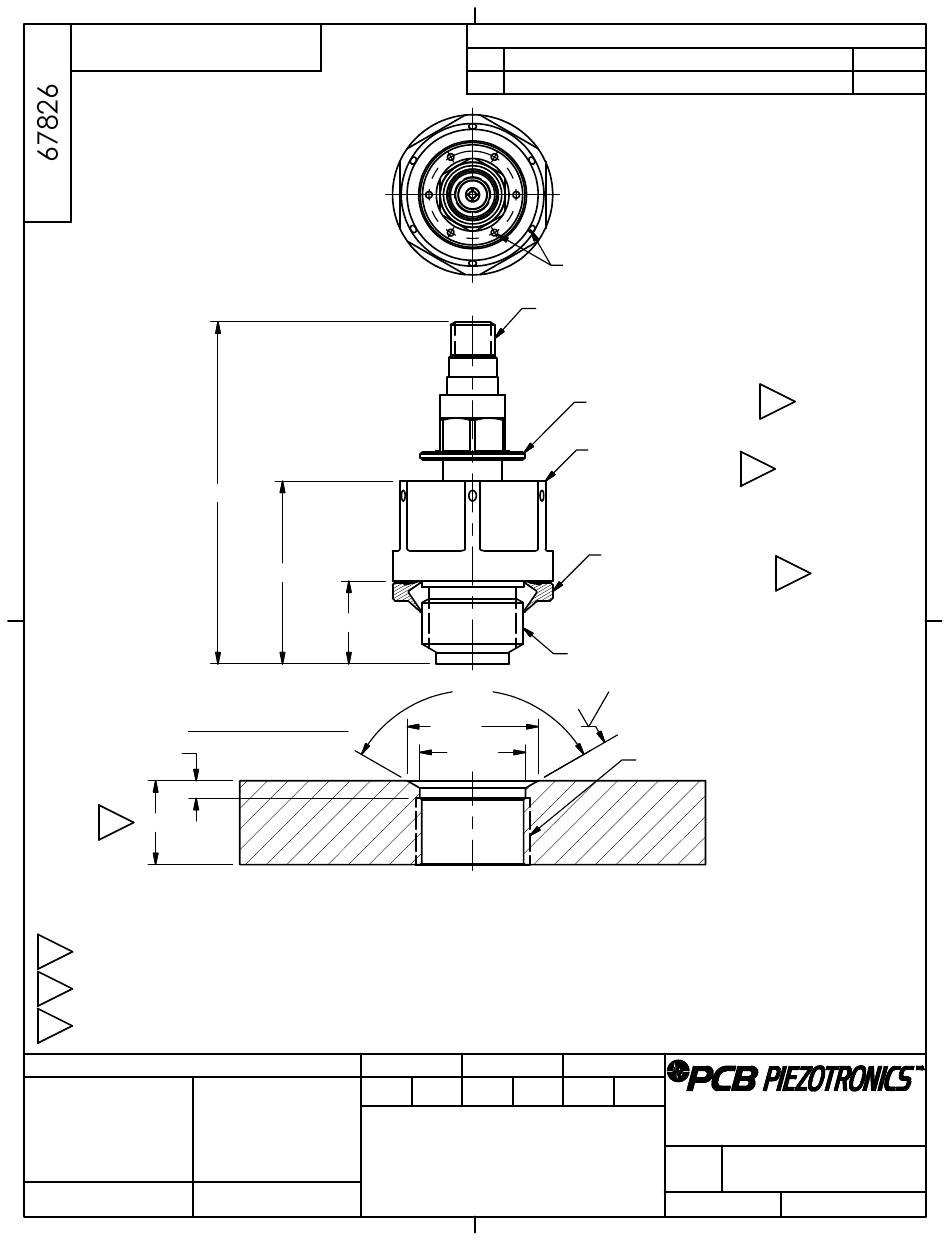

INSTALLATION DRAWING
CRYOGENIC PRESSURE TRANSDUCER
1
REVISIONS
DESCRIPTION
RELEASED TO DRAFTING
SAFETY WIRE HOLES
10-32 UNF - 2A
9/32 HEX CLAMP NUT
5/8 HEX
THREAD ADAPTOR
SEAL (K)
ROCKETDYNE PT. NO.
12100CR4
(MTL 304)
7/16-20 UNF - 2A
32
7/16-20 UNF - 3B
ENGINEER
DRK 9/20/17
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: 2X
1
DIN
47140
3
2
2
67826
SHEET 1 OF 1
