Summary of Contents for Highlite International SHOW GEAR E748001

  • Page 1 USER MANUAL ENGLISH V1.0 Tree & Pole Bracket MKII Product code: E748001...
  • Page 2 Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.

  • Page 3: Table Of Contents

    Tree & Pole Bracket MKII Table of contents 1. Introduction ............................1.1.

  • Page 4: Introduction

    Tree & Pole Bracket MKII Introduction 1.1. Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

  • Page 5: Symbols And Signal Words

    Tree & Pole Bracket MKII 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 6: Safety

    Tree & Pole Bracket MKII Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1.

  • Page 7: Requirements For The User

    Tree & Pole Bracket MKII 2.2. Requirements for the User DANGER This product may not be used by ordinary persons. This product may be used by instructed or skilled persons. Installation and maintenance may be carried out by instructed or skilled persons. Service shall be carried out only by skilled persons. Contact your Highlite International dealer for more information.

  • Page 8: Description Of The Device

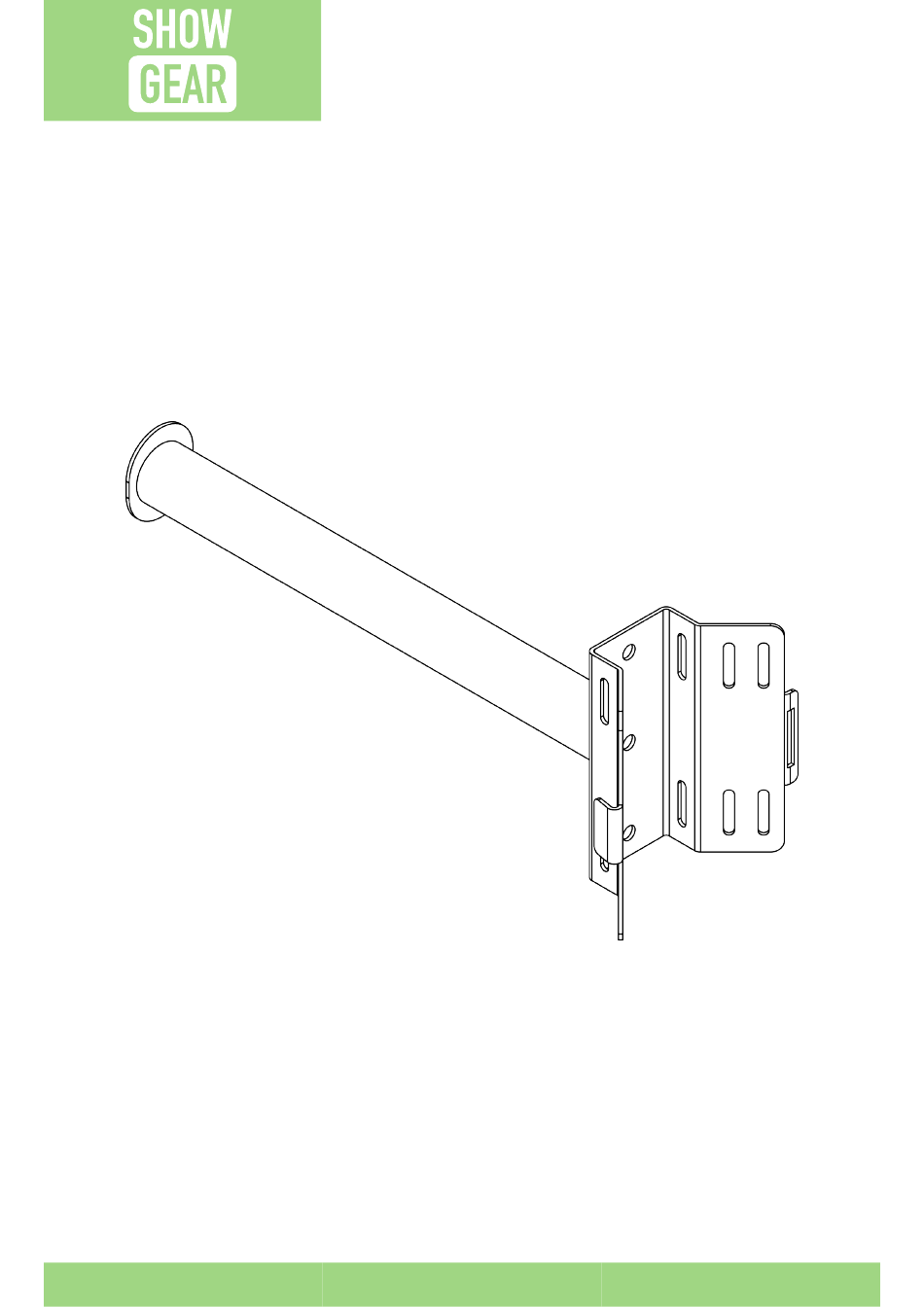

    Tree & Pole Bracket MKII Description of the Device The Showgear Tree & Pole Bracket MKII allows you to easily mount lighting fixtures against a pole or tree. The bracket has a 47,5 cm long steel tube on which objects weighing up to 50 kg can be mounted by using 48– 50 mm clamps.

  • Page 9: Product Specifications

    Tree & Pole Bracket MKII 3.2. Product Specifications Model: Tree & Pole Bracket MKII Mechanical Specifications: 50 kg Material Steel  Finish Powder coating  Color Black  Length 559 mm Height 200 mm Width 188 mm Diameter 50 mm Weight 1,97 kg Lashing: Type: Endless ratchet strap Lashing capacity (LC) 800 daN Standard hand force (SHF) 50 daN...

  • Page 10: Installation

    Tree & Pole Bracket MKII Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed or skilled persons. Minimum 2 persons are necessary to install the device. 4.2.

  • Page 11: Mounting Of The Device

    Tree & Pole Bracket MKII 4.4. Mounting of the Device CAUTION Restrict the access under the work area during installation. Minimum 2 persons are necessary to install the device. • • Do not apply higher force to the ratchet than the maximum hand force marked on the label of the endless ratchet strap.

  • Page 12: Connecting Multiple Devices

    Figure 7 Note: The Tree & Pole Bracket MKII is compatible with other Showgear products and can be connected to them. Contact your Highlite International dealer for more information. This is a list of the compatible Showgear products: • •...

  • Page 13: Mounting Of External Devices

    Tree & Pole Bracket MKII 4.6. Mounting of External Devices WARNING Do not exceed the working load limit of the device. The maximum working load of the device is ≤ 50 kg. • • Do not mount external devices to the Tree & Pole Bracket MKII that exceed the working load limit of the Tree &...

  • Page 14: Inspection And Maintenance

    Corrective Maintenance • • Do not modify the device. • • Refer repairs and servicing to skilled persons. Contact your Highlite International dealer for more information. 5.3. Basic Cleaning Instructions • • Use a damp cloth to clean the ratchet.

  • Page 15: Deinstallation

    Tree & Pole Bracket MKII Deinstallation 6.1. Safety Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. Deinstallation must be carried out only by instructed or skilled persons. CAUTION Restrict the access under the work area during deinstallation. Minimum 2 persons are necessary to deinstall the device.
