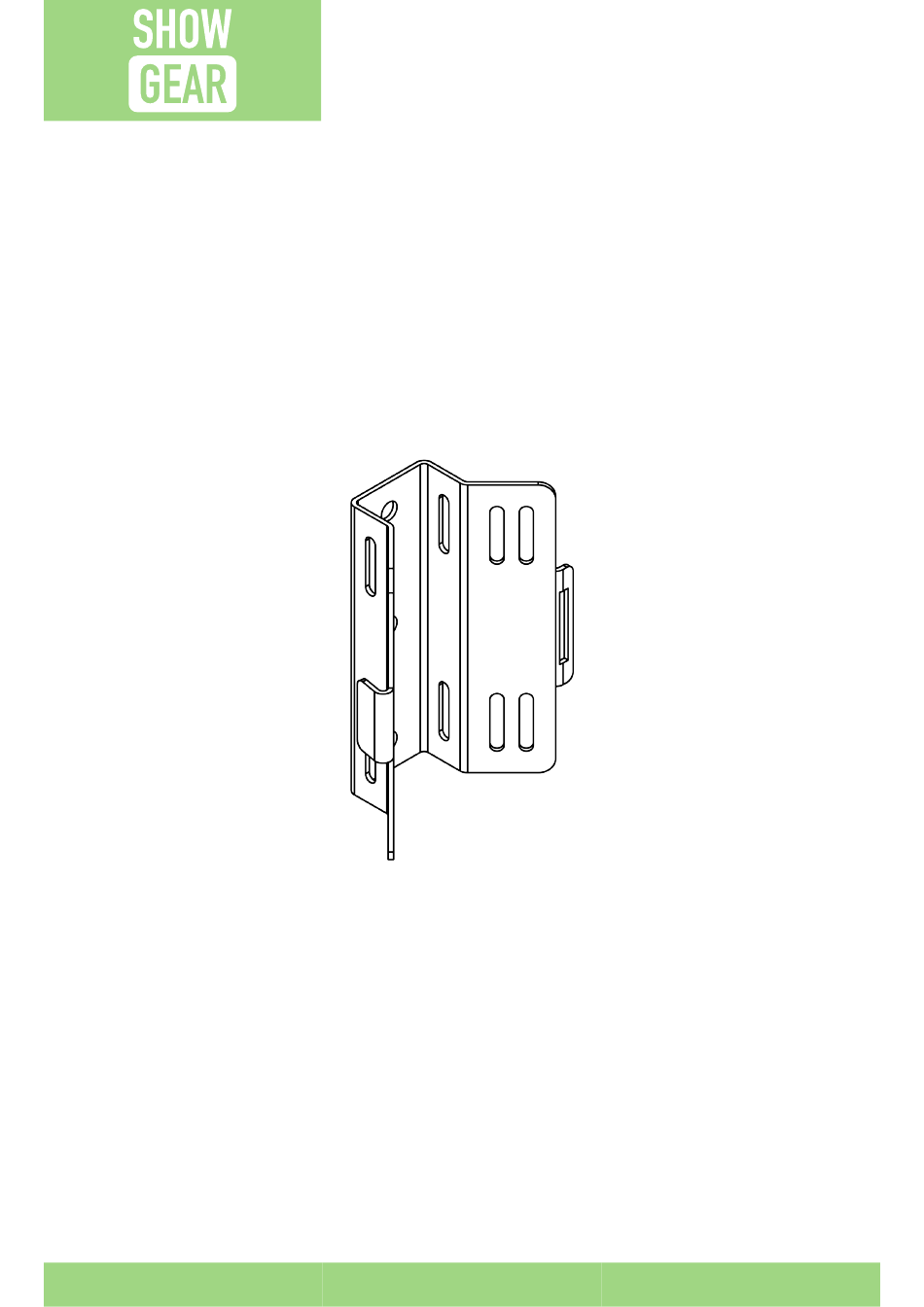

- Page 1 USER MANUAL ENGLISH V1.0 Mast Bracket Product code: E748004...
- Page 2 Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
Mast Bracket Table of contents 1. Introduction ............................1.1. -
Page 4: Introduction
Mast Bracket Introduction 1.1. Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Symbols And Signal Words
Mast Bracket 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
Mast Bracket Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions WARNING Incorrect installation can cause serious injuries and damage of property. -
Page 7: Requirements For The User
Mast Bracket 2.2. Requirements for the User DANGER This product may not be used by ordinary persons. This product may be used by instructed or skilled persons. Installation and maintenance may be carried out by instructed or skilled persons. Service shall be carried out only by skilled persons. Contact your Highlite International dealer for more information. -
Page 8: Description Of The Device
Mast Bracket Description of the Device The Showgear Mast Bracket allows you to easily mount lighting fixtures against a mast or tree. Hooks on the side of the bracket make it possible to attach brackets to each other. 3.1. Overview Figure 2 12 x strap slots Connection slot... -
Page 9: Product Specifications
Mast Bracket 3.2. Product Specifications Model: Mast Bracket Mechanical Specifications: 50 kg Material Steel Finish Powder coating Color Black Length 73 mm Height 200 mm Width 153 mm Weight 0,91 kg Lashing: Type: Endless ratchet strap Lashing capacity (LC) 800 daN Standard hand force (SHF) 50 daN Standard tension force (STF) 80 daN... -
Page 10: Installation
Mast Bracket Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed or skilled persons. Minimum 2 persons are necessary to install the device. 4.2. Personal Protective Equipment During installation, deinstallation and rigging wear personal protective equipment in compliance with the national and site-specific regulations. -
Page 11: Mounting Of An External Device
Mast Bracket 4.4. Mounting of an External Device WARNING Do not exceed the working load limit of the device. The maximum working load of the device is ≤ 50 kg. • • Do not mount external devices to the Mast Bracket that exceed the working load limit of the Mast Bracket. •... -
Page 12: Mounting Of The Device
Mast Bracket 4.5. Mounting of the Device CAUTION Restrict the access under the work area during installation. Minimum 2 persons are necessary to install the device. • • Do not apply higher force to the ratchet than the maximum hand force marked on the label of the endless ratchet strap. -
Page 13: Connecting Multiple Devices
03) Repeat steps 1–2 to connect more devices next to each other, if necessary. Figure 9 Note: The Mast Bracket is compatible with other Showgear products and can be connected to them. Contact your Highlite International dealer for more information. This is a list of the compatible Showgear products: • • E748001 Tree &... -
Page 14: Inspection And Maintenance
Corrective Maintenance • • Do not modify the device. • • Refer repairs and servicing to skilled persons. Contact your Highlite International dealer for more information. 5.3. Basic Cleaning Instructions • • Use a damp cloth to clean the ratchet. -
Page 15: Deinstallation
Mast Bracket Deinstallation 6.1. Safety Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. Deinstallation must be carried out only by instructed or skilled persons. CAUTION Restrict the access under the work area during deinstallation. Minimum 2 persons are necessary to deinstall the device. - Page 16 Showgear is a brand of Highlite International B.V.
