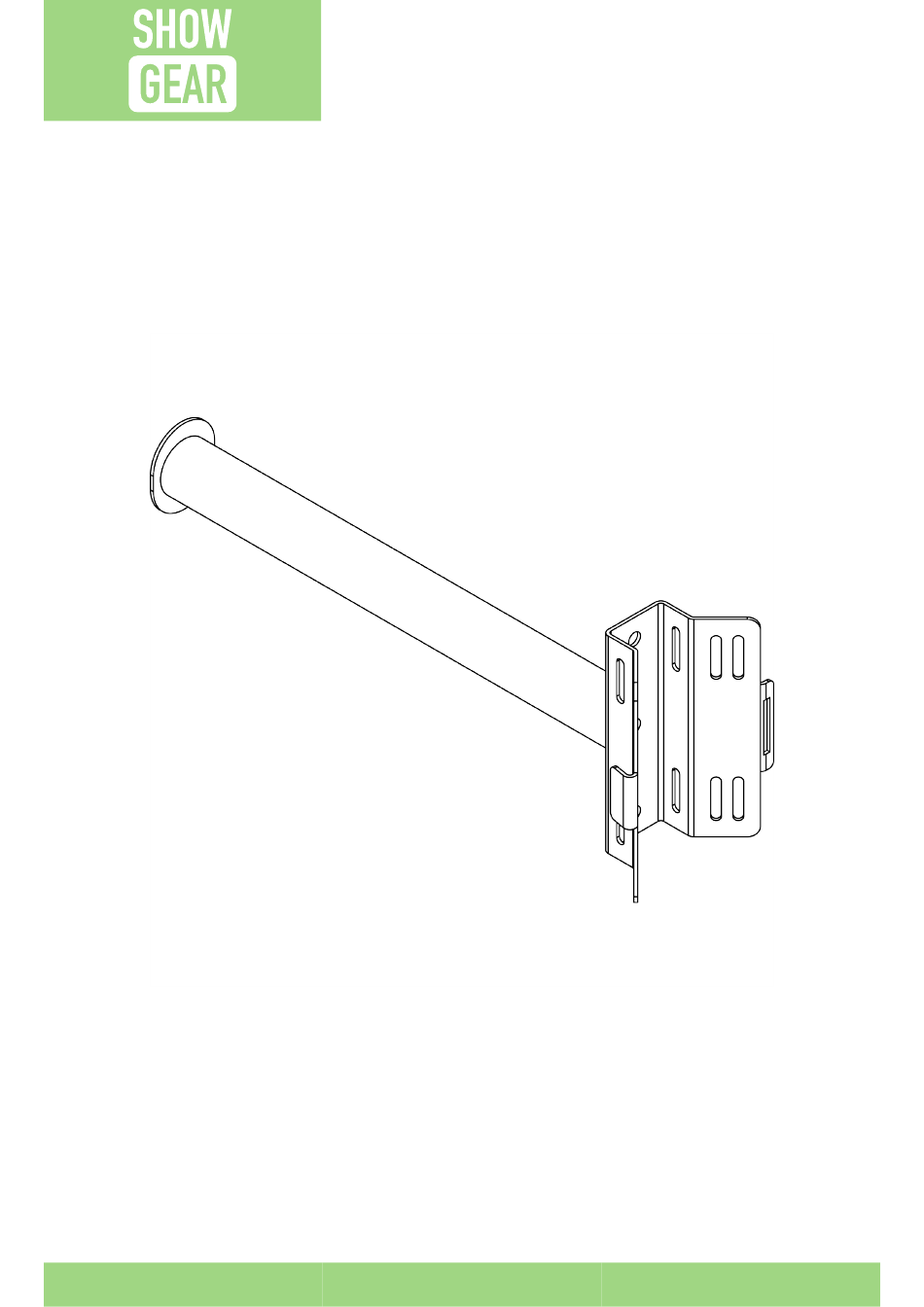

- Page 1 USER MANUAL ENGLISH V1.0 Mast & Pole Bracket Product code: E748003...
- Page 2 Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.
-
Page 3: Table Of Contents
Mast & Pole Bracket Table of contents 1. Introduction ............................1.1. -
Page 4: Introduction
Mast & Pole Bracket Introduction 1.1. Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Symbols And Signal Words
Mast & Pole Bracket 1.4. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 6: Safety
Mast & Pole Bracket Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions WARNING Incorrect installation can cause serious injuries and damage of property. -
Page 7: Requirements For The User
Mast & Pole Bracket 2.2. Requirements for the User DANGER This product may not be used by ordinary persons. This product may be used by instructed or skilled persons. Installation and maintenance may be carried out by instructed or skilled persons. Service shall be carried out only by skilled persons. Contact your Highlite International dealer for more information. -
Page 8: Description Of The Device
Mast & Pole Bracket Description of the Device The Showgear Mast & Pole Bracket allows you to easily mount lighting fixtures against a mast or pole. The bracket has a 47,5 cm long steel tube on which objects weighing up to 50 kg can be mounted by using 48– 50 mm clamps. -
Page 9: Product Specifications
Mast & Pole Bracket 3.2. Product Specifications Model: Mast & Pole Bracket Mechanical Specifications: 50 kg Material Steel Finish Powder coating Color Black Length 551 mm Height 200 mm Width 153 mm Diameter 50 mm Weight 1,8 kg Lashing: Type: Endless ratchet strap Lashing capacity (LC) 8 daN Standard hand force (SHF) 8 daN... -
Page 10: Installation
Mast & Pole Bracket Installation 4.1. Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed or skilled persons. Minimum 2 persons are necessary to install the device. 4.2. -
Page 11: Mounting Of The Device
Mast & Pole Bracket 4.4. Mounting of the Device CAUTION Restrict the access under the work area during installation. Minimum 2 persons are necessary to install the device. Do not apply higher force to the ratchet than the maximum hand force marked on the label of the endless ratchet strap. -
Page 12: Connecting Multiple Devices
04) Repeat steps 2–3 to connect more devices next each other, if necessary. Figure 7 Note: The Mast & Pole Bracket is compatible with other Showgear products and can be connected to them. Contact your Highlite International dealer for more information. This is a list of the compatible Showgear products: • •... -
Page 13: Mounting Of External Devices
Mast & Pole Bracket 4.6. Mounting of External Devices WARNING Do not exceed the working load limit of the device. The maximum working load of the device is ≤ 50 kg. Do not mount external devices to the Mast & Pole Bracket that exceed the working load limit of the Mast &... -
Page 14: Inspection And Maintenance
Corrective Maintenance • • Do not modify the device. • • Refer repairs and servicing to skilled persons. Contact your Highlite International dealer for more information. 5.3. Basic Cleaning Instructions • • Use a damp cloth to clean the ratchet. -
Page 15: Deinstallation
Mast & Pole Bracket Deinstallation 6.1. Safety Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. Deinstallation must be carried out only by instructed or skilled persons. CAUTION Restrict the access under the work area during deinstallation. Minimum 2 persons are necessary to deinstall the device. - Page 16 Showgear is a brand of Highlite International B.V.
