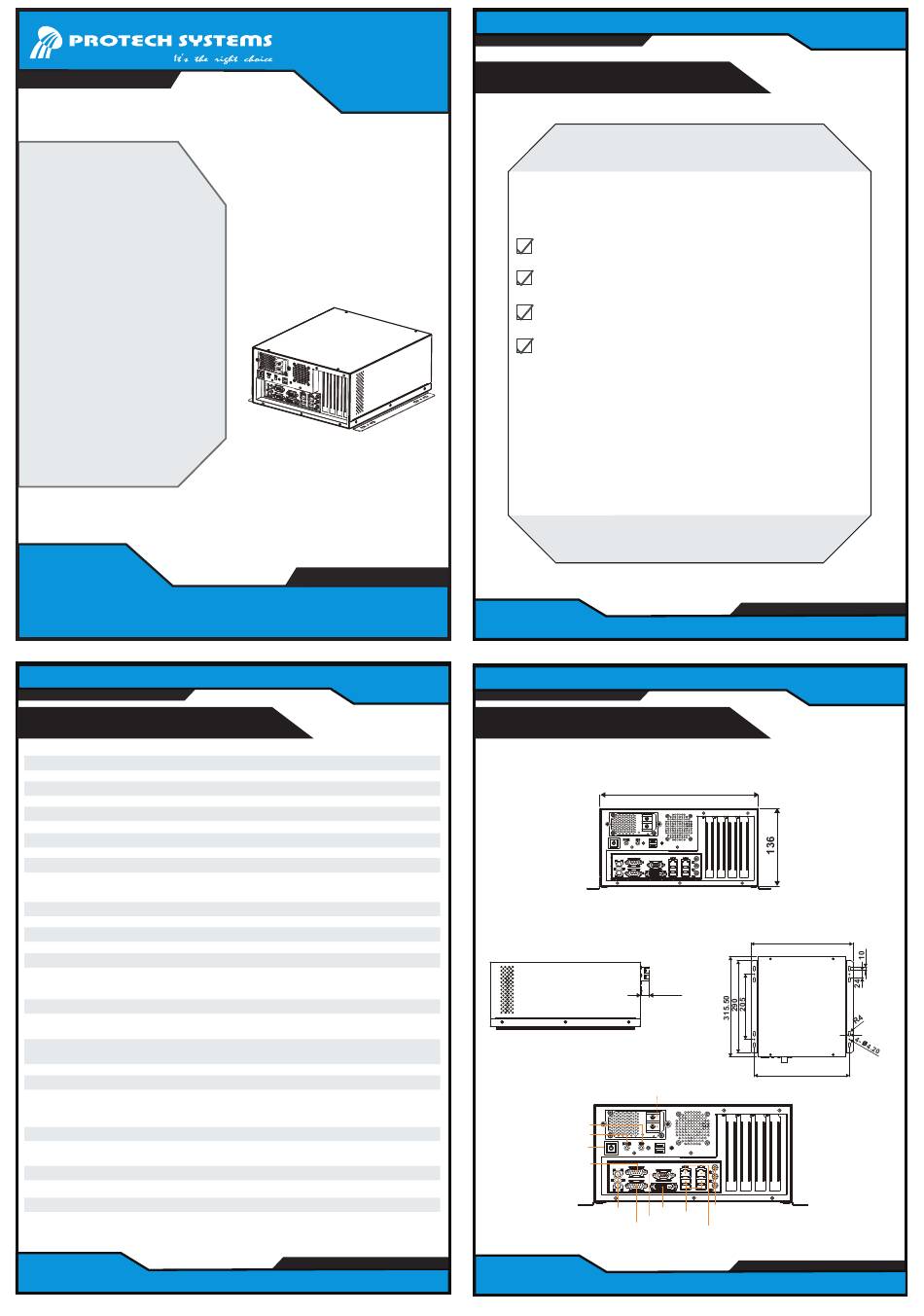

BS-W025
Quick
Reference
Guide
Specifications
System
th
th
CPU Support
6
/7
Gen. Intel
Chipset
Intel
Q170 / H110 / C236
®
Memory Support
Up to 4 x DDR4 2133MHz UDIMM(H110 SKU only 2 UDIMM)
Drive Bay for Storage
Supports 2 x 2.5" HDD/SSD
Watchdog
1~255 seconds watchdog timer selectable
Power Supply
Supports DC 24V input
System Fan
2 x system fans
Dimensions
277mm(W) x136mm(H) x 315.5mm(D)
Certificate
FCC/CE
OS Support
Windows 10(64) / Windows 8.1(64) / Windows 7 Pro(32/64)
I/O Ports (Internal)
SATA
6 x SATA3.0
Serial Ports
4 x COM (internal): COM3-6 for RS-232
USB
1 x USB2.0 port
Digital I/O
8in/8out(onboard wafer)
LPC
1 x LPC pin header (for optional TPM module)
Mini PCIe
1 x mini-PCIe slot
I/O Ports (Front side)
Power Switch
1 x Power Switch
Display
1 x VGA up to 1920x1200 @60Hz
1 x DVI-D up to 1920x1200@60Hz
Serial Ports
COM1 for RS-232
COM2 for RS-232/422/485 (selectable under BIOS)
USB
4 x USB 3.0 / 2 x USB 2.0
Keyboard/Mouse
2 x PS/2 with mini DIN connectors
LAN
2 x GbE LAN, Wake-On-LAN, PXE
LAN 1: Intel
LAN 2: Intel
Audio
1 x Line In / 1 x Line Out / 1 x Mic In
Expansion Slot
Q170/C236 SKU: 1 x PCIe (x16), 2 x PCIe (x4),1 x PCIe (x1)
H110 SKU: 1 x PCIe (x16), 1 x PCIe (x4),1 x PCIe (x1)
Power Input
DC 24V Power Input Connector
Environment
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F) ; Humidity: 20% ~ 90%
Storage Temp.
-20°C ~ 80°C (-4°F ~ 176°F); Humidity: 20% ~ 90%
All Rights Reserved. Copyright 2020
BS-W025
Core™ i7/i5/i3 & Pentium/Celeron
®
(supports RAID 0/1 in Q170/C236 SKU)
PHY-I219 LM (10/100/1000 Mbps)
®
LAN I210 AT (10/100/1000 Mbps)
®
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
BS-W025
This Quick Reference Guide
Driver/ Manual DVD
Mini Jumper (2.0 mm)
Ver. Q3
System View
Front View
processor
®
Side View
I/O View
Power LED
277
Top View
18.50
24V DC In
HDD LED
Power
Button
COM 2
Audio
DVI-D
PS/2 Keyboard/
USB
Connector
Mouse Connector
VGA
Connector
COM 1
RJ-45
10/100/1000
LAN Connector
BS-W025
x1
x1
x1
x6
BS-W025
Unit: mm
320.74
5
299.14
