IMPETUS IE 500 User Manual

Ecb generator
Hide thumbs Also See for IE 500:
Table of Contents

Advertisement

Quick Links

Download this manual
&
(ECB Generator)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IE 500 and is the answer not in the manual?

Questions and answers

Related Manuals for IMPETUS IE 500

Summary of Contents for IMPETUS IE 500

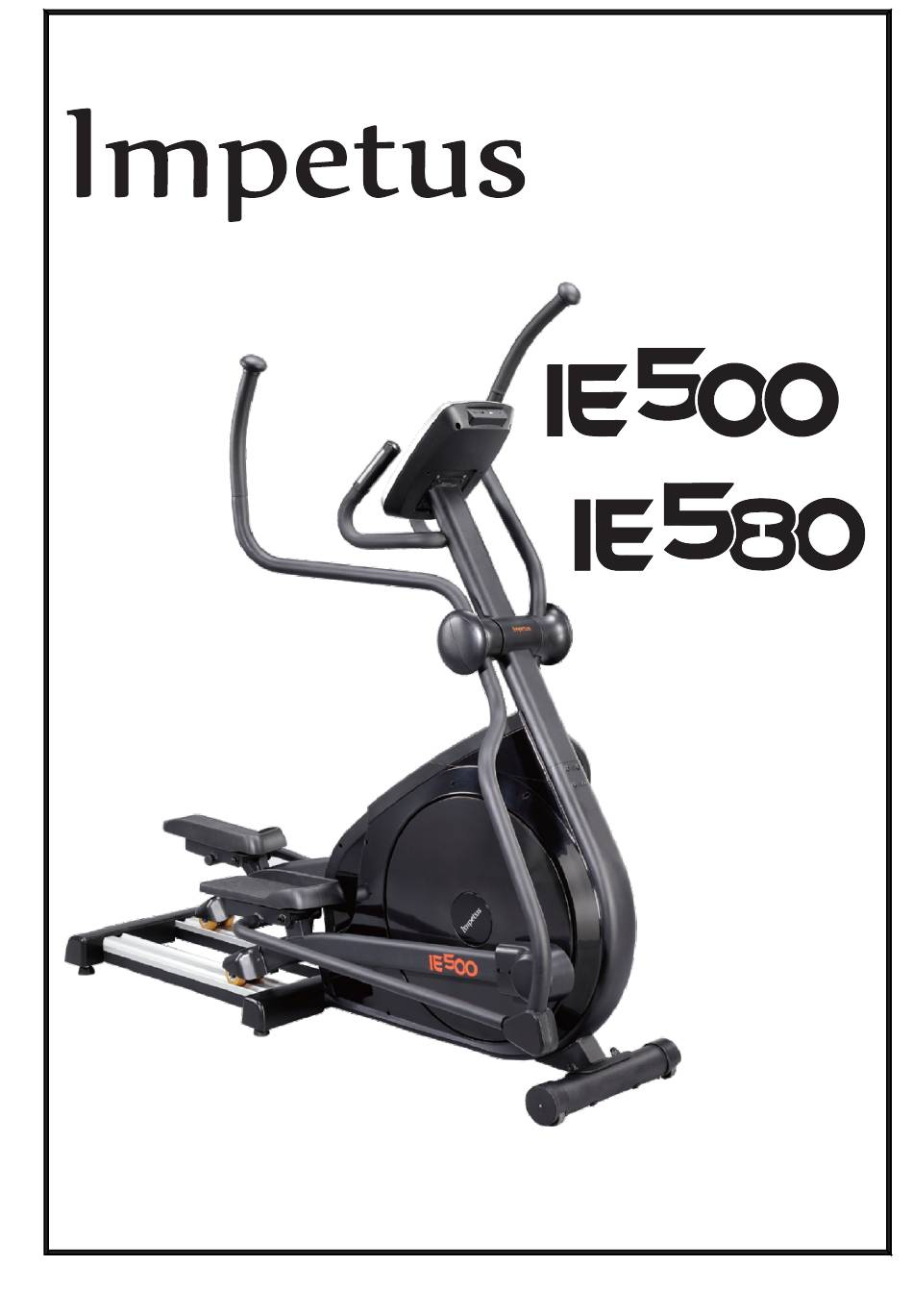

  • Page 1 & (ECB Generator) USER MANUAL...

  • Page 2: Table Of Contents

    INRODUCTION / IMPORTANT INFORMATION PACKING LIST HARDWARE PACK PACKING LIST ASSEMBLY INSTRUCTIONS HOW TO MOVE THE TRAINER HOW TO ADJUST THE BALANCE OF THE TRAINER ADDITIONAL INFORMATION TELEMETRIC HEART RATE CHEST STRAP WARM UP / COOL DOWN CLEANING & MAINTENANCE...

  • Page 3: Inroduction / Important Information

    INTRODUCTION / IMPORTANT INFORMATION A. Introduction This user manual contains assembly, operation, maintenance and safety information. Please read and retain this manual for future reference. B. Safety guidelines a. Read the user manual and all accompanying literature. Follow it carefully before using your machine.
  • Page 4 IMPORTANT: THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR EQUIPMENT IS KGS. WARNING: Before commencing with any exercise program, please consult your family physician. If at any time during exercise you feel faint, dizzy or experience pain, stop and consult your family physician. The safety level of the equipment can be maintained only if it is examined regularly for damaged and wear.

  • Page 5: Packing List

    PACKING LIST Handlebar post (#2A) Water bottle holder (#86) Console (#A1) Right handlebar (#7A) Main frame (#1A) Left handlebar (#8A) Connecting arm (#6A) Lower handlebar cover (49 & 50) Connecting arm (#5A) Upper handlebar cover (54 & 55) Post cover (52 & 53) Pedal arm cover (#51) HARDWAER PACK PACKING LIST #94 BOLT M10*P1.5*88MM(L37.5)-2PCS...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION STEP 1 1. Attach the PEDAL ARM COVER (#51) to the PEDAL ARM using SCREW (#84). 2. Connect WIRES (#98 & B7) to WIRES (#B1& B3). 3. Attach the HANDLEBAR POST (#2A) to the MAIN FRAME (#1A) using 2 SCREWS (#99), 2 SCREWS (#85) and 4 WASHERS (#114).
  • Page 7 STEP 2 1. Attach the WATER BOTTLE HOLDER (#86) to the MAIN FRAME (#1A).
  • Page 8 STEP 3 1. Remove the pre-installed SCREW (#71), WASHER (#80) and NUT (#76) from the CONNECTING ARM (#5A) . 2. Attach the CONNECTING ARM (#5A) to the PEDAL ARM (#4A) using a SCREW (#71), a WASHER (#80) and a NUT (#76) removed earlier. Make sure BUSHING (#29) is attached on the PEDAL ARM (#4A) as the graph shown before the assembly.
  • Page 9 STEP 4 83 76 1. Attach the LEFT HANDLEBAR (#8A) to the HANDLEBAR POST (#2A) using WASHER (#83) and NUT (#76). 2. Connect the lower LEFT HANDLEBAR (#8A) to the UNIVERSAL JOINT (#22) using 2 BUSHING (#30), WASHER (#119), SCREW (#64) and NUT (#75) as the picture shown. 3.
  • Page 10 STEP 5 1. Attach the FRONT POST COVER (#52) and REAR POST COVER (#53) to the HANDLEBAR POST (#2A) using 4 SCREWS (#84). 2. Attach the UPPER HANDLEBAR COVER ( #54 &#55) to the RIGHT HANDLEBAR (#7A). 3. Install the LOWER HANDLEBAR COVER (#49 & #50) at the UNIVERSAL JOINT (#22). 4.
  • Page 11 STEP 6 CONSOLE (#A1), and loosen the bottom Un-screw the top 2 SCREWS at the back of the 2 SCREWS without removing them. 2. Slide the CONSOLE (#A1) onto the bracket as the graph shown. 3. Adjust the allignment of the CONSOLE (#A1), and tighten 4 SCREWS at the back of the CONSOLE (#A1).

  • Page 12: How To Move The Trainer

    HOW TO MOVE THE TRAINER HANDLE TRANSPORT WHEEL 1. Hold the handle and lift the trainer up, so the transport wheels touch the floor. 2. Move the trainer to your designated position while lifting the trainer. 3. Carefully let down the trainer. HOW TO ADJUST THE BALANCE OF THE TRAINER Make sure the trainer is placed on the flat floor, and rotate the leveling foot clockwise or...

  • Page 14: Warm Up / Cool Down

    IE 500 & 580 WARM UP / COOL DOWN Suggested Stretches The following stretches provide a good warm-up and cool-down. Move slowly as you stretch. Ham String Stretch Sit with one leg extended. Bring the sole of the opposite foot toward you, resting it against the extended leg's inner thigh.

  • Page 15: Cleaning & Maintenance

    CLEANING & MAINTENANCE Inspect and tighten all parts of the exercise trainer regularly. Replace any worn parts immediately. To clean the exercise trainer, use damp cloth and a small amount of mild soap. IMPORTANT: To avoid damage to the console, keep liquids away from the console and keep the console out of direct sunlight.

This manual is also suitable for:

Ie 580
