Four Elms Road - Edenbridge
Kent - TN8 6AB - UK
Technical Overview

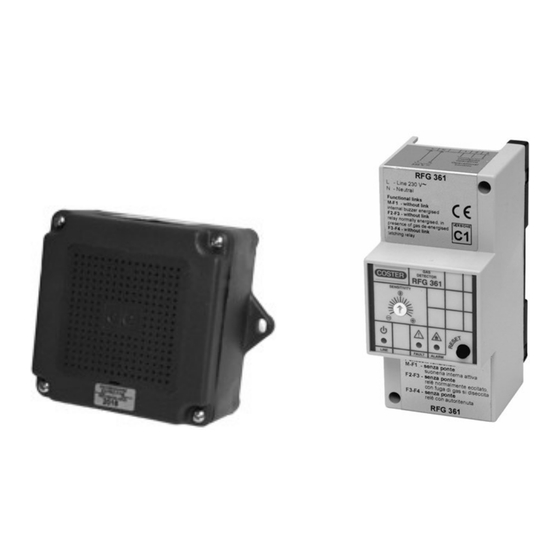

The CL-CO-RFG-361 is a single channel gas leak alarm system, that is designed for the detection of gas leaks in spaces such as boiler plant
rooms, workshops and other industrial gas installations, to provide safety alarm and shutdown facilities on detection of gas leakage.
Product Codes
Controller
GL-CO-RFG-361
1 Channel gas leak alarm system (DIN rail mount)
Mounting option
GL-CO-FMK3
Panel mounting kit
Sensors
GL-CO-SRS-150
Natural gas sensor
GL-CO-SRS-250
LPG, Propane sensor
GL-CO-SR-S350
Carbon Monoxide sensor
WEEE Directive:
At the end of the products useful life please
dispose as per the local regulations.
Do not dispose of with normal household waste.
Do not burn.
Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com
1 Channel Gas Leak Alarm System
Features and Benefits
•
•
•
•
•
•
Specification
Power supply
Power consumption
Radio disturbance
Vibration test
Relay output
Housing dimensions
Housing materials:
Housing protection
Sensor dimensions
Sensor material
Sensor protection
Ambient:
Country of origin
Conformity
© 2017 Sontay Limited. All rights reserved
Page 1 of 5
GL-CO-RFG-361
Remote sensors for natural gas, LPG and CO
1 x SPST relay outputs
DIN-rail as standard, panel mounting kit available
Adjustable alarm thresholds
Self-diagnosis fault system
Audio & visual alarms
230Vac ±10% @ 50/60Hz
3VA
VDE0875/0871
with 2g (DIN 40046)
SPDT, 250V @ 5(1) A
115 x 53 x 70mm
Cover
ABS
Base
Nylon
IP30
77 x 77 x 44
Nylon
IP44
Storage temp.
-25 to + 60°C
Operating temp.
0 to 45°C
RH
Class F Din 40040
Italy
EMC, LVD, CE & UKCA Marked
Issue Number 7.1
27/08/2021
Advertisement
Related Manuals for Sontay CL-CO-RFG-361
Summary of Contents for Sontay CL-CO-RFG-361
- Page 1 Technical Overview The CL-CO-RFG-361 is a single channel gas leak alarm system, that is designed for the detection of gas leaks in spaces such as boiler plant rooms, workshops and other industrial gas installations, to provide safety alarm and shutdown facilities on detection of gas leakage.
-
Page 2: Alarm Levels
2,200…3,500…5,600 ppm — Carbon monoxide-CO pre-alarm: — Pre-alarm propane-LPG 0.14...0.22...0.35 % Time between exceeding alarm threshold and alarm 1,400...2,200...3,500 ppm Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com © 2017 Sontay Limited. All rights reserved Page 2 of 5... -
Page 3: Installation
Alarm continues even when the gas concentration falls below the threshold level. To deactivate press the RESET button for at least 5 seconds. Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com © 2017 Sontay Limited. All rights reserved... -
Page 4: Operation
0.005% (50 ppm) for more than one minute, the detector returns to the “Normal” condition, cancelling all the times counted up to that moment and, if it has been programmed “Without latching” any “Alarm” condition will be terminated. Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com © 2017 Sontay Limited. All rights reserved... - Page 5 If the detector controls a valve with manual reset, it is necessary to re-open manually also the valve. Whilst every effort has been made to ensure the accuracy of this specification, Sontay cannot accept responsibility for damage, injury, loss or expense from errors or omissions.
