Specification
Power supply:
230Vac ±10% @ 50/60Hz
12V ±10%
Power consumption
7VA
Radio disturbance
VDE0875/0871
Vibration test
with 2g (DIN 40046)
Relay outputs
2 x SPDT, 250V @ 5 (1) A
Housing dimensions
105 x 115 x 70mm
Housing materials:
Cover
ABS
Base
Nylon
Housing protection
IP40
Panel mount housing dim.142 x 142 x 125mm
Sensor dimensions
77 x 77 x 44
Sensor material
Nylon
Sensor protection
IP44
Ambient:
Storage temp. -25 to + 60°C
Operating temp.0 to 45°C
RH
Class F Din 40040
Country of origin
Italy
UK Sales Tel: 0845 345 7253

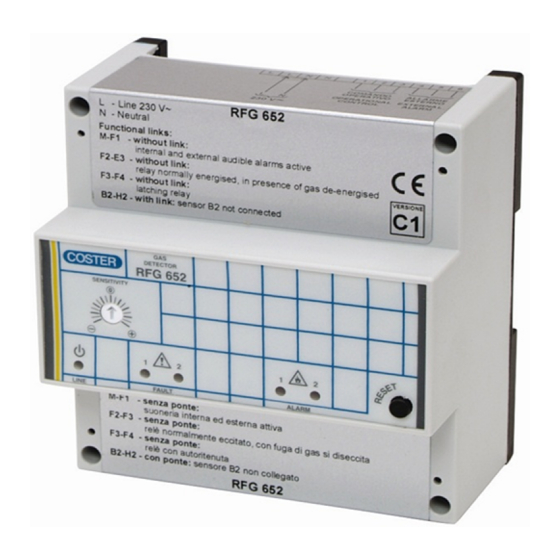

Gas Leak Alarm Systems
Features
•
Remote sensors for Natural Gas, LPG or CO
•
Audio & visual alarms
•
Adjustable alarm threshold
•
Self-diagnosis fault system
•
2 x SPST relay outputs
•
DIN rail, panel or wall mounting
Product Codes
GL-CO-RFG651
1 Channel gas leak alarm system (DIN rail mount)
GL-CO-RFG652
2 Channel gas leak alarm system (DIN rail mount)
GL-CO-RFG653
3 Channel gas leak alarm system (DIN rail mount)
GL-CO-WMK6
Wall mounting kit
GL-CO-FMK6
Panel mounting kit
GL-CO-SRS150
Natural gas sensor
GL-CO-SRS250
LPG, Propane sensor
GL-CO-SRS350
Carbon Monoxide sensor
Page 1 of 5
GL-CO-RFG65x
Date Of Issue: 28/10/2008
© 2008 Sontay Limited. All rights reserved.
International Tel: +44 1732 861225
Issue: 5.4
Advertisement
Table of Contents
Related Manuals for Sontay GL-CO-RFG65 Series
Summary of Contents for Sontay GL-CO-RFG65 Series
- Page 1 GL-CO-RFG65x Issue: 5.4 Date Of Issue: 28/10/2008 © 2008 Sontay Limited. All rights reserved. Gas Leak Alarm Systems Features • Remote sensors for Natural Gas, LPG or CO • Audio & visual alarms • Adjustable alarm threshold • Self-diagnosis fault system •...
-
Page 2: Technical Overview
GL-CO-RFG65x Issue: 5.4 Date Of Issue: 28/10/2008 © 2008 Sontay Limited. All rights reserved. Technical Overview Links The CL-CO-RFG65x is a series of gas leak alarm systems, Link Functions: that are designed for the detection of gas leaks in spaces... -
Page 3: Self Diagnostics
GL-CO-RFG65x Issue: 5.4 Date Of Issue: 28/10/2008 © 2008 Sontay Limited. All rights reserved. Alarm Levels (continued) Self Diagnostics Pre-Alarm thresholds Self diagnostics Natural gas pre-alarm threshold: 0.3% to 0.8% (0.5% with sensitivity =0) In the event of a fault or incorrect connection of the sensor... -
Page 4: Front Panels
GL-CO-RFG65x Issue: 5.4 Date Of Issue: 28/10/2008 © 2008 Sontay Limited. All rights reserved. Front Panels Example Connections Basic operation: GL-CO-RFG652, 230Vac Supply: Sensitivity potentiometer Power supply LED Fault LED Alarm LED Reset button Dimensions UK Sales Tel: 0845 345 7253... - Page 5 For the latest information and product updates, register at www.sontay.com Whilst every effort has been made to ensure the accuracy of this specification, Sontay cannot accept responsibility for damage, injury, loss or expense resulting from errors or omissions. In the interest of technical improvement, this specification may be altered without notice.
