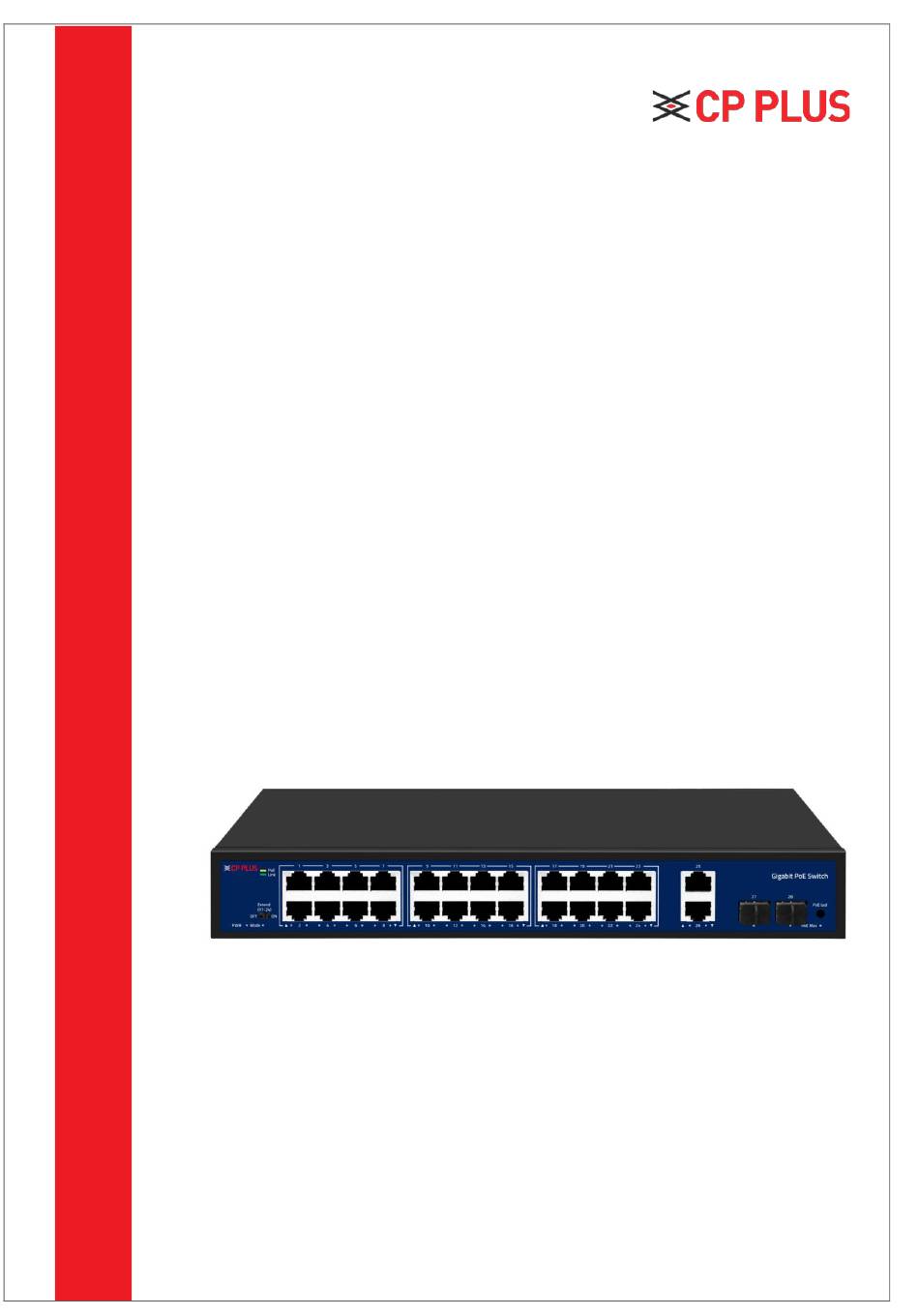

- Page 1 24 Port Gigabit Ethernet PoE Switch 4 Port FastEthernet PoE Switch Quick Start Guide Quick Start Guide Version 1.01...
-
Page 2: Specification

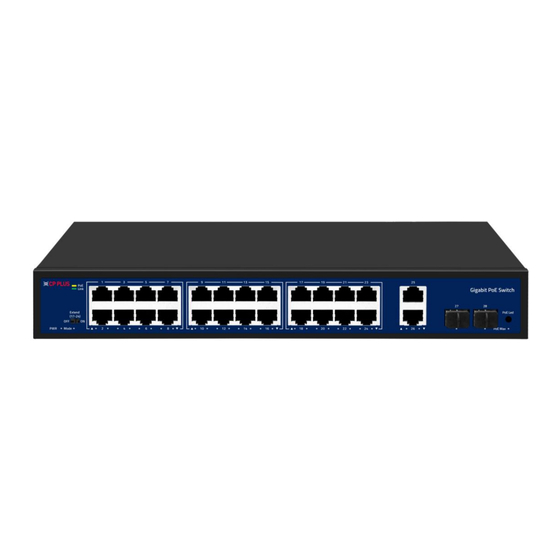

CP-DNW-GPU24G2F2-30 is non-managed 24 ports PoE switch with 4 uplink ports. It automatically detects and identify IEEE802.3af/at standard PD device and then transfer power and data to it. CP-DNW-GPU24G2F2-30 is the best choice for SOHO & mini type commercial network because it economically uses PoE deployment for IP cameras, wireless AP &... -
Page 3: Power Over Ethernet
It is used to switch whether the 1-16 indicator lights indicate the Link/Data status PoE Led Button or the PoE status; Default indicates Link/Data status OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps adaptive, and the watchdog function is turned off. Extend Switch ON: 17-24 ports can extend the transmission distance of the network cable to Max. -
Page 4: Installation Precautions
Installation Precautions To ensure the normal operation and service life of the switch, observe the following precautions ➢ Please install it in a well-ventilated room. Do not block the vents of the equipment. ➢ Do not place and install the switch in direct sunlight or near a heating device. Allow enough space (more than 10cm) to allow the device to dissipate heat properly. - Page 5 Thank You for Choosing CP Plus! Website: - www.cpplusworld.com Email id: - sales@cpplusworld.com; support@cpplusworld.com...
