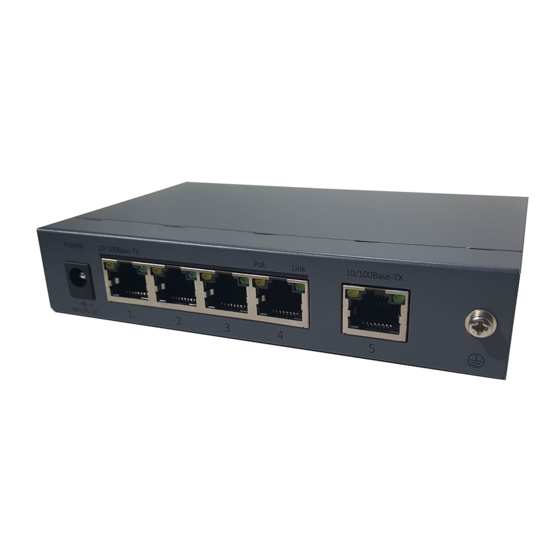

CP Plus CP-TNW-HP4H1-6 Quick Start Manual

4 Port PoE Switch
Model: CP-TNW-HP4H1-6
4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet
high definition surveillance and Ethernet project security system. The product fully combines the
characteristics of security surveillance, provides fast packet forwarding ability and abundant
backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge
protection circuit can improve product stability. The product supports one key CCTV model, can
achieve VLAN, QoS priority after configuration, control the Net storm, protect the information
security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video
security surveillance system and Ethernet project needs.

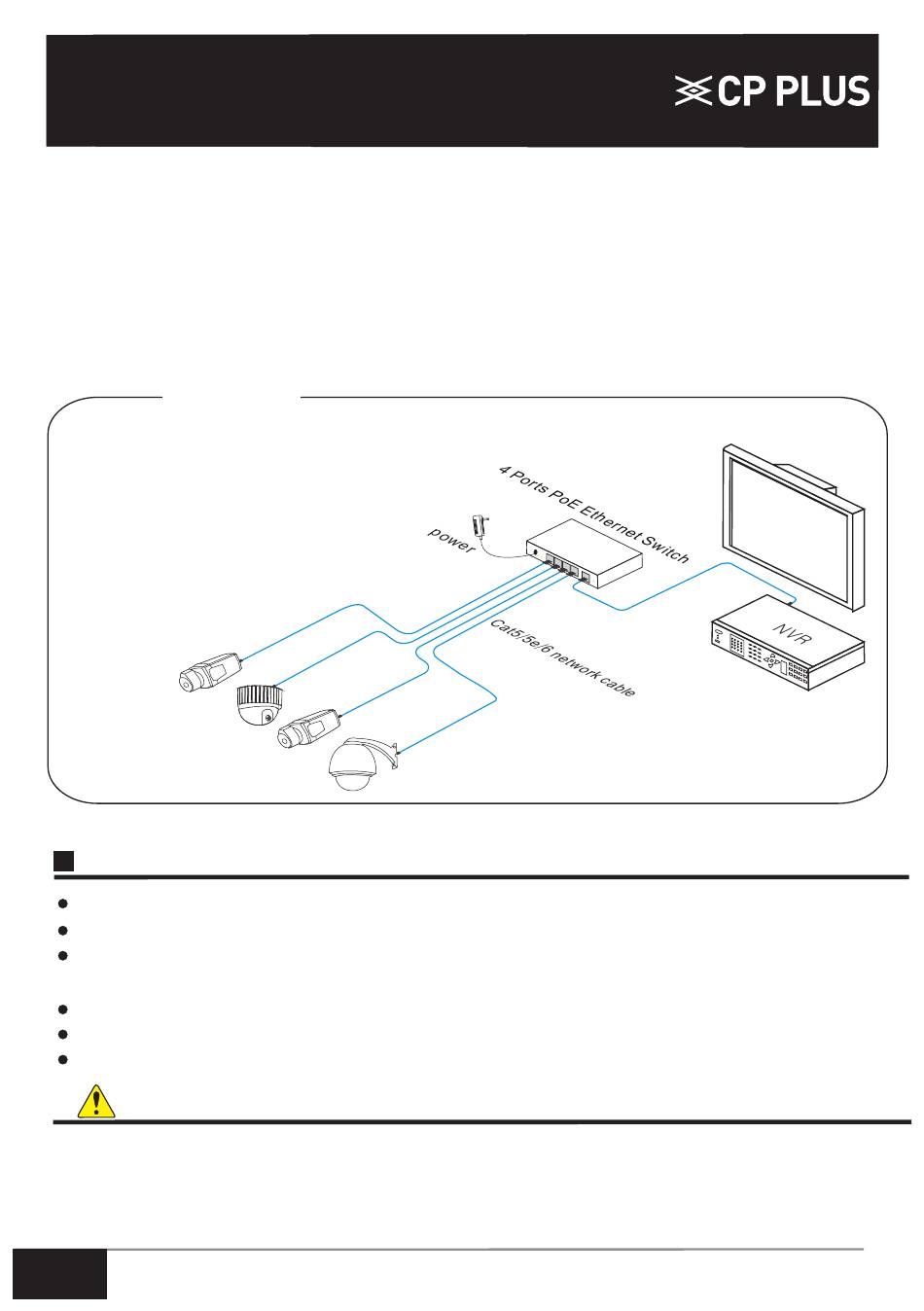

Application

PoE IP Camera
PoE Dome Camera
PoE IP Camera
PoE PTZ Camera

Feature

4×10/100Base-TX Ethernet ports (PoE ports) and 1×10/100Base-TX up-link port;
Support IEEE802.3af/at standards,Max.30W output of single port;
One-key CCTV mode: 1~4 downlink ports can only communicate with uplink ports,extend
transmission distance up to 250m(10Mbps);
6KV surge protection, 8KV ESD immunity and anti-interference;
Easy & safe installation: wall-mounting, desktop,Kensington security slot;
Plug-and-play.

Notice

※
The transmission distance depends on the signal source and cable quality; standard Cat5e/6
Ethernet cable is strongly suggested for reaching the maximum transmission distance! Every
100 mtr each power port drop will be approx 3 to 5 watts. After 250 mtr available POE power
will be approx. 15W to 20W at each IPC side.
