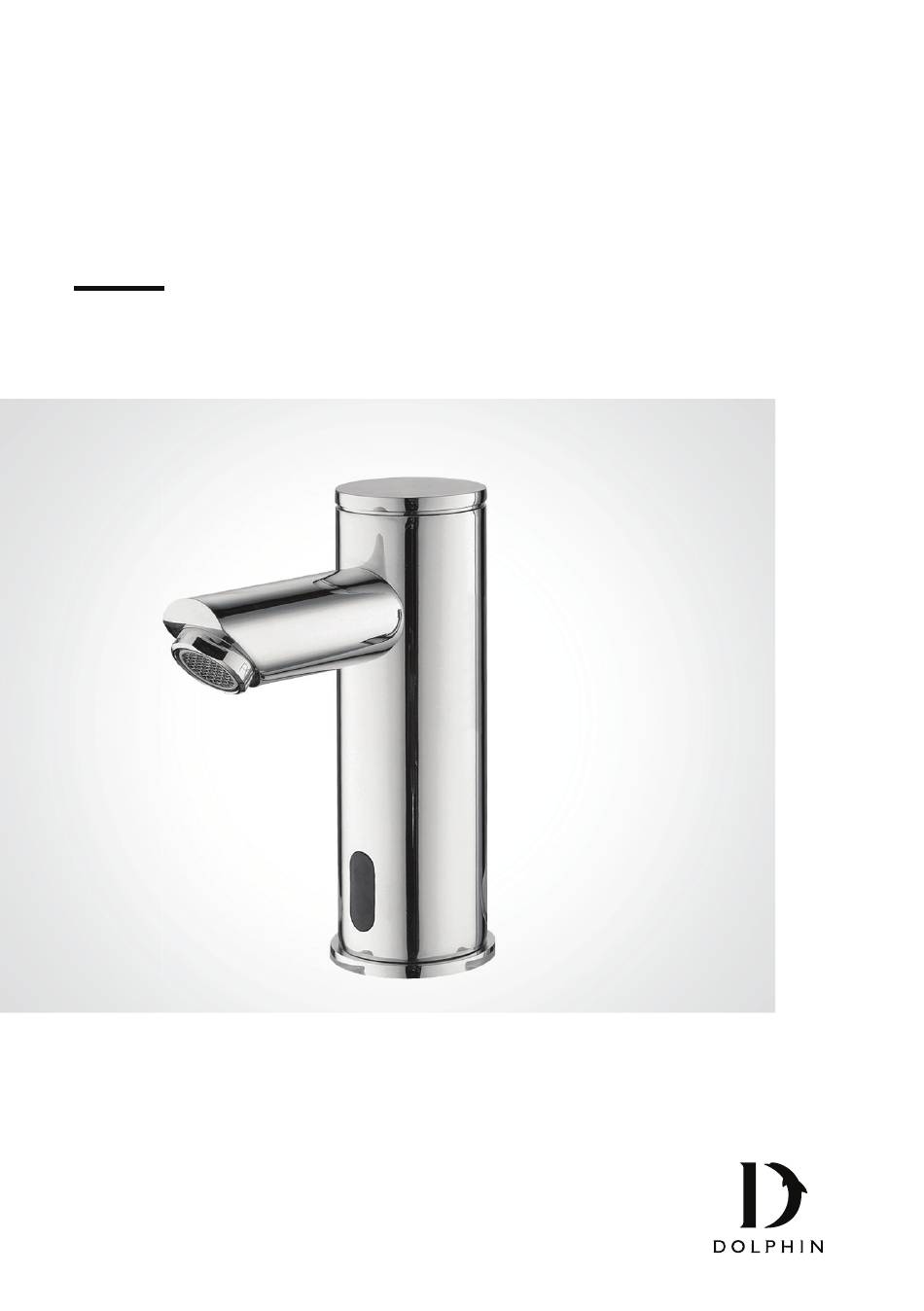

- Page 1 DB200-SSL DOLPHIN ELECTRONIC INFRARED TAP I N S TA L L AT I O N A N D M A I N T E N A N C E G U I D E April 2024...
- Page 2 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Dolphin Solutions Ltd or other third parties and you are not permitted to use them without the prior written consent of Dolphin Solutions Ltd or such third party as may own them.
-
Page 3: Technical Data
With water pressure of more than 8 bars, use a pressure reducing valve for reduction 220 mm Adjustable Sensor range 80 mm Minimum sensor range 300 mm Maximum sensor range 90 seconds Security time Max. 70ºC Hot water temperature | Dolphin | 3 DB200-SSL... -
Page 4: Pre-Installation Info
Shut off water supply. Installations in Australia and New Zealand must comply with the requirements of AS/NZS 3500. IMPORTANT All plumbing is to be installed in accordance with applicable codes and regulations. RECOMMENDED HOLE SIZE 4 | Dolphin | DB200-SSL... -
Page 5: Pack Contents
PACK CONTENTS Familiarize yourself with the part names and confirm that the parts are included. B VERSION E VERSION 6 x 1.5V batteries 9V transformer Filter Allen Key 1x Tap and attachments | Dolphin | 5 DB200-SSL... -
Page 6: Installation
O-ring is located between the deck or lavatory and the bottom of the tap. 2. Slide the gasket, disk and hexagonal nut over the flexible hose and secure the tap into place. GASKET GASKET DISC DISC 6 | Dolphin | DB200-SSL... - Page 7 Make sure that the filter(s) is/are installed between the flexible pipe and the shut off valve (angle valve) (not supplied). 4. Turn on the central water supply and the shut-off valves (angle valves) and check for leaks. | Dolphin | 7 DB200-SSL...
- Page 8 To change the angle of the water stream, simply move the adjustable tilting plate by pressing it smoothly. ATTENTION! the aerator is tightened to prevent removal by hand. 8 | Dolphin | DB200-SSL...
-
Page 9: Settings Adjustment
At this stage, you can change the setting by pressing the (+) or the (-) buttons, every push will increase or decrease one level. After finishing the adjustment, turn the water supply back on. | Dolphin | 9 DB200-SSL... - Page 10 The product will remain shut for 1 minute when this button is pressed once. To cancel this function and to return to normal operation press the On/Off button again or wait 1 minute. 10 | Dolphin | DB200-SSL...
- Page 11 When the button is pressed, one blink of the blue in the sensor eye is perceived. The pre-programmed flush cycle will take place then. The Comfort flush cannot be interrupted or deactivated by pressing any button until it is over. | Dolphin | 11 DB200-SSL...
-
Page 12: Battery Replacement
6 x 1.5v batteries (Lithium battery is recommended). IMPORTANT: Spent batteries should not be disposed of with normal household waste. Contact your local authority for information on waste disposal and recycling. 12 | Dolphin | DB200-SSL... -
Page 13: Maintenance
For surface cleaning of tap use ONLY soap and water, then wipe dry with clean cloth or towel. When cleaning bathroom tile, the tap should be protected from any splattering of harsh cleansers. | Dolphin | 13 DB200-SSL... -
Page 14: Limited Warranty
If a defect is found in normal use, Dolphin Solutions Ltd. will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. -
Page 15: Troubleshooting
* “Security Mode”: If the sensor is covered for more than 90 sec. the tap will automatically shut off water flow. To return to normal operation remove any blockage. ** In this case, the water flow will stop anyway after 90 seconds because of the security time. | Dolphin | 15 DB200-SSL... - Page 16 Dolphin Solutions Ltd Southpoint, Compass Park, Bodiam, Robertsbridge,TN32 5BS Tel: +44 (0)1424 20 22 24 Fax: +44 (0)1424 205 200 info@dolphinsolutions.co.uk www.dolphinsolutions.co.uk...
