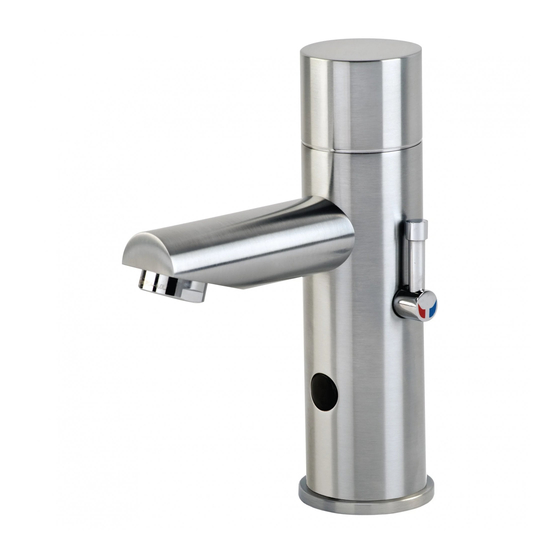

- Page 1 INSTALLATION AND MAINTENANCE GUIDE Infrared Taps Electronic taps – saving water, saving power, promoting hygiene DB100 DB125 DBL200 DB150 DBL225 DB175 DBL250 DBL275 Important: Read carefully DB200 before installing product DB225 DB250 DB275 DOLPHIN Revision October 2013...
- Page 2 Pack Contents Pre Installation Information 7 - 9 Tap Installation 10-11 Range Adjustment using Dolphin Blue Remote Control – DB51 Adjusting the sensor range with a remote control Battery Replacement DB100, DB150, DB200, DB250, DBL200, DBL250 models Maintenance Filters cleaning instructions...
-
Page 3: Technical Data
Water Pressure With water pressure of more than 8 bars use a pressure reducing valve for reduction Preset sensor range 220mm Minimum sensor range 80mm Maximum sensor range 300mm Hot water temperature Max 70ºC DB100, DB200 & DBL200 ranges Dolphin Blue... - Page 4 Water Pressure With water pressure of more than 8 bars use a pressure reducing valve for reduction Preset sensor range 220mm Minimum sensor range 80mm Maximum sensor range 300mm Hot water temperature Max 70ºC Dolphin Blue DB100, DB200 & DBL200 ranges...
-
Page 5: Pack Contents
DBL200 1 1 x tap and attachment 2 1 x filter 3 1 x battery box DB125 DB225 DBL225 1 1 x tap and attachment 2 1 x filter 3 1 x transformer DB100, DB200 & DBL200 ranges Dolphin Blue... -
Page 6: Pre-Installation Information
• Installations in Australia and New Zealand must comply with the requirements of AS/NZS 3500 Recommended hole size Recommended hole size Ø28mm min Ø28mm min Ø34mm max Ø34mm max Standard versions Tall versions Dolphin Blue DB100, DB200 & DBL200 ranges... -
Page 7: Tap Installation
DBL250 1 1 x tap and attachments 2 2 x filters 3 1 x battery box DB175 DB275 DBL275 1 1 x tap and attachments 2 2 x filters 3 1 x transformer DB100, DB200 & DBL200 ranges Dolphin Blue... - Page 8 O ring Gasket 2. Slide the gasket over Disk flexible hose(s). Hexagonal nut 3. Secure the tap to the counter or basin/sink with the hexagonal nut and the disk. Dolphin Blue DB100, DB200 & DBL200 ranges...
- Page 9 TAP INSTALLATION Step 3 – Connecting the Water Source 1. a. DB100, DB125, DB200, DB225, DBL200, DBL225: connect the flexible pipe to the water supply b. DB150, DB175, DB250, DB275, DBL250, DBL275: connect the red flexible pipe to the hot water supply and the blue flexible pipe to the cold water supply.
-
Page 10: Range Adjustment
Press the IN button. Wait until a quick flashing of the red light of the sensor eye is perceived. Then, press + to increase the delay in time and – to reduce it. Dolphin Blue DB100, DB200 & DBL200 ranges... - Page 11 If required, press the Reset button and without releasing it, press the + button once. Note: To enter the self adjusting mode, use the ADJ button. To change the sensor range, use the RANGE button. DB100, DB200 & DBL200 ranges Dolphin Blue...
-
Page 12: Battery Replacement
BATTERY REPLACEMENT For models DB100, DB150, DB200, DB250, DBL200, DBL250 Battery models only When the battery weakens, the red indicator light will blink at a constant rate. The battery must be replaced within two weeks. To replace the battery Carefully open the battery’s box... -
Page 13: Maintenance
If the water flow has decreased, this may be because the filter(s) is/are clogged. The filter(s) can be changed as follows: Shut off the water shut-off valve For DB100, DB125, DB200, DB225, DBL200, DBL225 Disconnect the flexible pipe For DB150, DB175, DB250, DB275, DBL250, DBL275... -
Page 14: Troubleshooting
Sensor is picking up reflections range Decrease the range or eliminate from the washbasin or another case of reflection object Water flow Remove, clean and reinstall Filter or aerator is clogged diminished Dolphin Blue DB100, DB200 & DBL200 ranges... -
Page 15: Spare Parts List
Cat No. DB 06009015 7 Remote control Cat No. DB 51 8 Mixing Valve Cat No. DB 60 9 IP67 Battery Box Cat No. DB 06530019 10 Transformer junction box Cat No. DB 06530013 DB100, DB200 & DBL200 ranges Dolphin Blue... -
Page 16: Limited Warranty
• incorrect installation, inversions or supply pipes • Pressures or temperatures exceeding recommended limits • Improper manipulations, tampering, bad or lapsed maintenance • Foreign bodies, dirt or scale introduced by the water supply Dolphin Blue DB100, DB200 & DBL200 ranges... - Page 17 DOLPHIN Request your 320 page catalogue today on 0800 0723 404 Bell-Chem Products Company Haywood Way, Hastings TN35 4PL Tel: +44 (0)1424 202224 Fax: +44 (0)1424 205 200 info@dolphindispensers.co.uk www.dolphindispensers.co.uk DB100, DB200 & DBL200 ranges Dolphin Blue...
