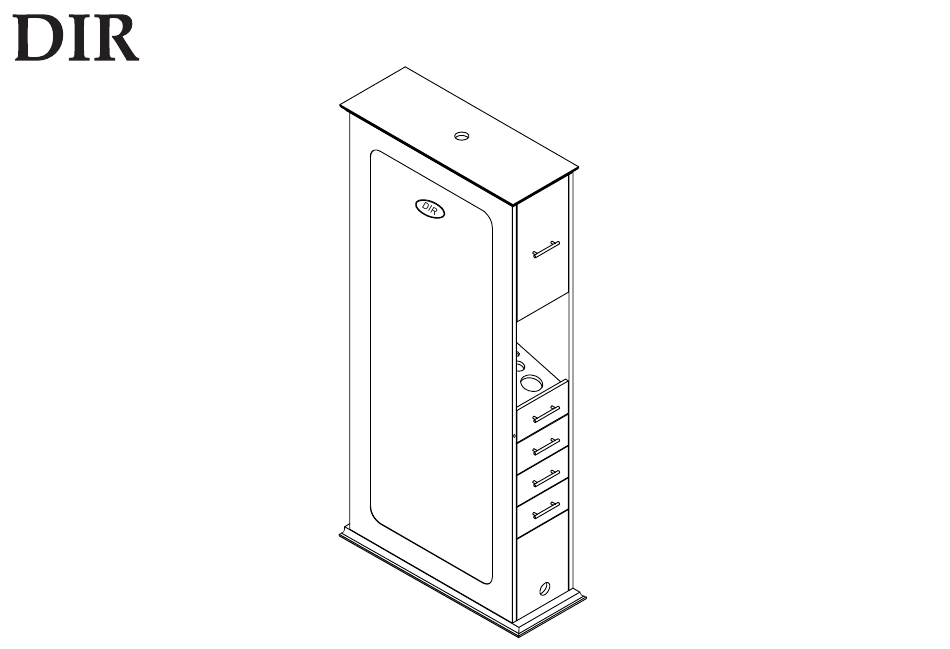

- Page 1 ADONIS SINGLE ® 6201-5G INSTRUCTION MANUAL...
- Page 2 List of Parts & Tools Provide Length Base 101001 101002 101003 101004 Top and Base Boards Bottom Cabinet Top Cabinet Nut & Bolt Set Provide Length 101005 101006 101007 101008 Nut and Bolt Set Mirror Wall Anchor Kit Hot Tool Holders 101010 Handles...
- Page 3 Step 1 Remove top drawer 101002 Unlock pins to allow drawer to be removed. 101005 101001...
- Page 4 Step 2 101001 101005 Remove bottom drawer 101003...
- Page 5 Step 3 101004 101004...
- Page 6 Step 4 IMPORTANT: Please note it's optional to run electrical power into your station. This product is designed and can be routed with electrical wires from either Top or Bottom of the station. Please note all electrical work should be completed by a Licensed and Insured professional.
- Page 7 Step 5 101005 101006...
- Page 8 Step 6 101008 101008...
- Page 9 Step 7 IMPORTANT: Anchor your station to the wall, this is required for safety and prevents the unit from falling forward under all circumstances.
-
Page 10: Light Switch
Step Light Switch... - Page 11 Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
