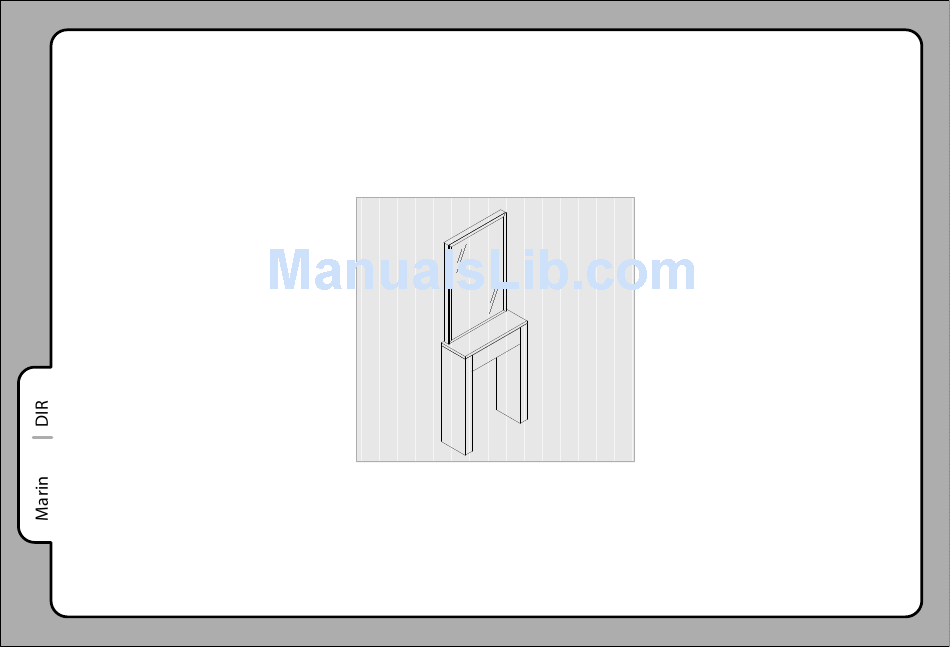

- Page 1 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Aftercare instructions Contact Us Thanks for your purchase of our product : Marino Styling Units Please read the operation manual before using the product. Please put the operation manual in the place easy for you to read and you can read it at any time. -
Page 3: Product Introduction

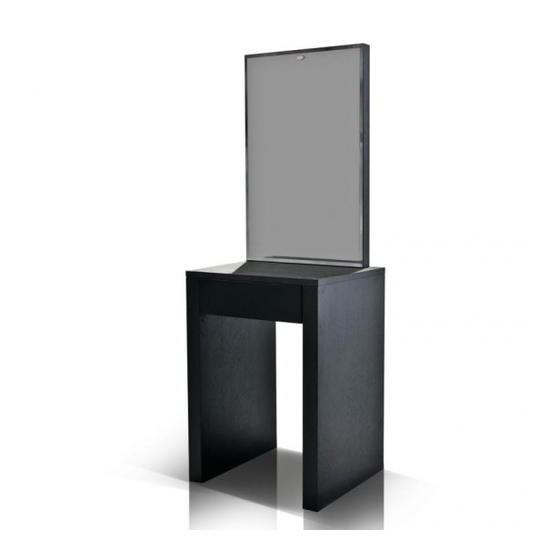

Product Intruduction Product Name: Marino Product Code: 6021s The simple elegance of the Marino single styling unit is clear. The design makes the most of the wood grain and emphasises the solid construction that holds the mirror unit secure. -
Page 4: Warranty
Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of buyer's receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty. -
Page 5: Assembly Instructions
List of Parts Wood 900X290X70mm 650X290X25mm 510X150X15mm 510X100X15mm 900X290X70mm 464X245X5mm 454X100X15mm 504X147X15mm 250X100X15mm 250X100X15mm Part Ø6X32mm Ø15X12mm Ø8X40mm Drawer runner P5 Ø3X12mm P6 Expansion bolts P7 Support Mirror... - Page 6 Drawer Drawer View...
-
Page 7: Tools Necessary
Tools Necessary: Rubber Hammer Cross screwdriver... -
Page 8: Assembly Techniques Display
Assembly Techniques Display Ø6x32mm(x14) Ø8x40mm(x18) Ø15x12mm(x14) Wooden part A Wooden part B Wooden part A Wooden part A Wooden part B Please put parts together with full 3 techniques instrucitons for every assembly step in the following pages. -
Page 9: Instructions
Drawer runner Ø3X12mm Step1... - Page 10 Ø6X32mm Ø15X12mm Ø8X40mm Step2...
- Page 11 Ø6X32mm Ø15X12mm Ø8X40mm Step3...
- Page 12 Ø6X32mm Ø15X12mm Step 4.2 Step 4.1...
- Page 13 Ø6X32mm Drawer runner Ø15X12mm Ø3X12mm Step 4.3 Step 4.4...
- Page 14 Step 5 Insert the drawer into the trolly...
- Page 15 Expansion bolts Wall Support Side view Step 6 Secure the support on the wall by the provided expansion bolts and secure the mirror on the wall by the support.
- Page 16 Assembly Complete...
-
Page 17: Aftercare Instructions
Aftercare Instructions Brush away excess hair Wipe clean with a cloth dampened in a mild Avoid the use of abrasives , bleaches or solvents leather cleaneror wipe dry with a clean cloth... -
Page 18: Contact Us
Contact Us DIR BIRMINGHAM DIR LONDON DIR NEW YORK 93-96 Floodgate Street Unit 1 River Road Business Park 24 Woodward Ave, Suite C Birmingham 33 River Road, Barking Ridgewood, NY 11385 B5 5SR Greater London IG11 0DA Sales: +44(0)800 085 3667... - Page 19 www.dirgroup.co.uk (Headquarters) 93-96 Floodgate Street, Birmingham, B5 5SR, UK TEL: +44(0)800 0853667 +44(0)121 6433877 Email: sales@dirgroup.co.uk...
