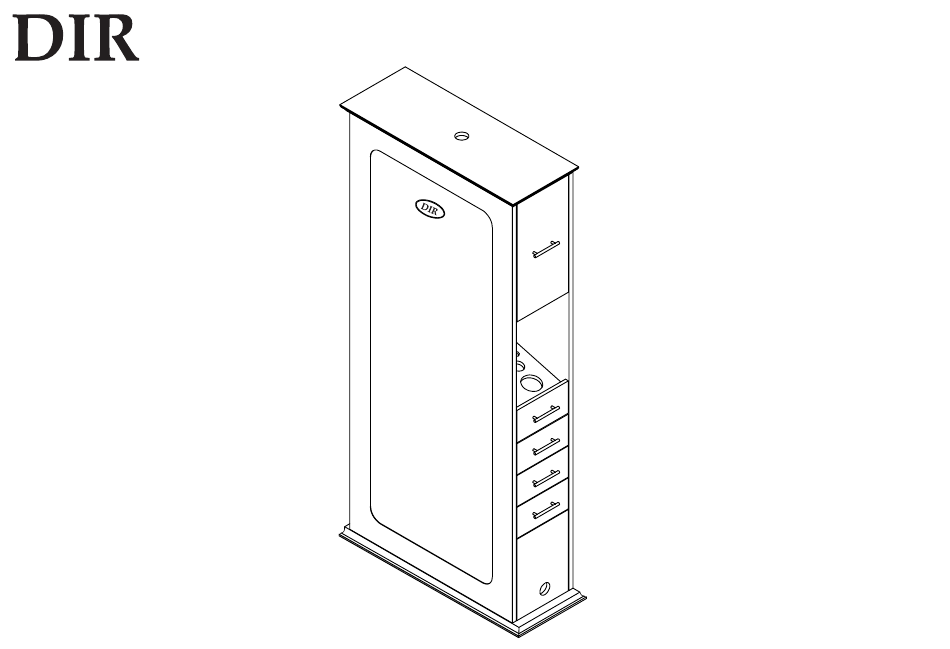

- Page 1 ADONIS DOUBLE ® 6202-3G INSTRUCTION MANUAL...
- Page 2 List of Parts & Tools Length:1'' Base 101001 101002 101003 101004 Top and Base Boards Bottom Cabinet Top Cabinet Nut & Bolt Set - Short Length:1 101005 101006 101007 101008 Nut & Bolt Set - Long Mirror Handles Hot Tool Holders 101009 Wire Caps...
- Page 3 Step 1 Remove top drawer 101002 Unlock pins to allow drawer to be removed. 101005 101001 Base...
- Page 4 Step 2 101001 Top 101005 Remove bottom drawer 101003...
- Page 5 Step 3 101004 101004...
- Page 6 Step 4 IMPORTANT: Please note it's optional to run electrical power into your station. This product is designed and can be routed with electrical wires from either Top / Bottom / Left / Right of the station. Please note all electrical work should be completed by a Licensed and Insured professional. Option 1 Option 2 Option 3...
- Page 7 Step 5 101005 101009 101006 Match up all wires based on color and cap off with provided wire connectors. Test the LED lighting setup prior to mounting the mirror onto the station.
- Page 8 Step 6 101008 101008...
-
Page 9: Light Switch
Step 7 Light Switch... - Page 10 Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
