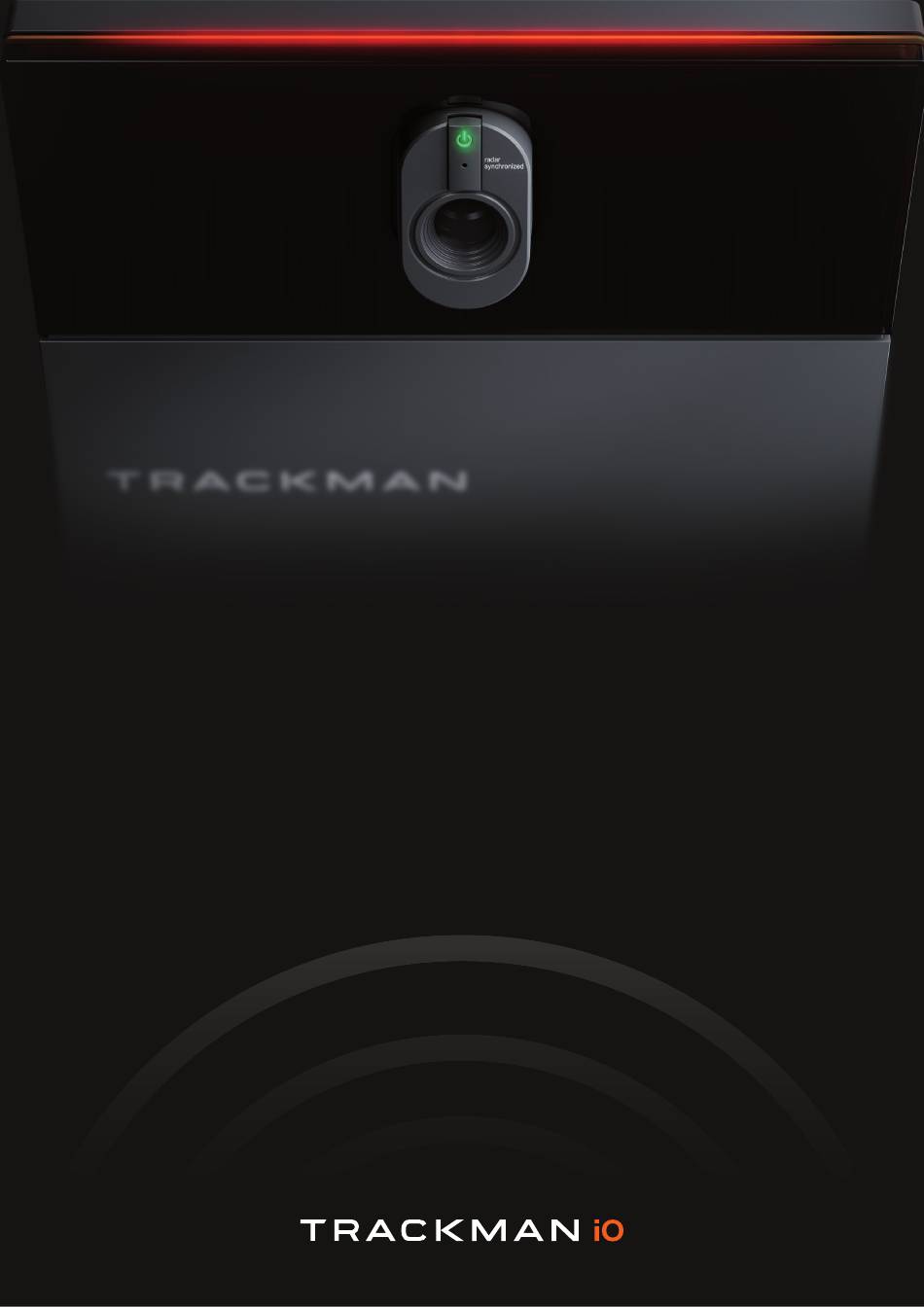

INSTALLATiON
INSTRUCTiONS
IN-0050
INSTALLATION INSTRUCTIONS | PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iO and is the answer not in the manual?

Questions and answers

Related Manuals for TrackMan iO

Summary of Contents for TrackMan iO

  • Page 1 INSTALLATiON INSTRUCTiONS IN-0050 INSTALLATION INSTRUCTIONS | PAGE 1...

  • Page 2: Table Of Contents

    Prerequisites Mounting Type A installation process Mounting Type B installation process Powering up your Trackman iO Your installed simulator room Connecting your Trackman iO to a PC and the internet Installing TPS (9.2 or later) Connecting to your Trackman iO Calibrating your Trackman iO Mounting screw recomendations Pluggable equipment...

  • Page 3: Getting Started

    • 4pcs 6mm x 35mm raw plugs (wall anchors) Flashlight • Blanket or towel 4 pcs M6 12 mm screws for VESA 100x100 mount • Ethernet cable (minimum Cat6/shielded) (NOT included) plus 2 pcs spare screws • 2 golf clubs or alignment sticks. • Screwdriver (choose standard or Phillips based on Tee marker the screws you are using) USB stick (contains safety and conformity • Bubble level guide, intallation instructions and software) 3 pcs AAA Battery If you are not mounting your Trackman iO directly to the ceiling using the attached ceiling bracket, you will Box contents and safety instructions require additional equipment: Ceiling bracket (attached to Trackman iO) DEFINITIONS • VESA mount (100x100, with rotary joint and LH: Left hand adjustable drop pole/bracket) RH: Right hand • P l umb line (or laser level, or heavy-duty tape Target point: A spot or line that indicates the measure)

  • Page 4: Space

    THE SPACE HITTING SURFACE Must be green in color. The center of the HITTING SURFACE must also be the center of the TEE AREA FLOOR SURFACE HITTING SCREEN CEILING SURFACE TEE AREA 60 x 40cm / 2´x 16” You will be able to hit shots from this TEE AREA the center of which is indicated by the tee marker TEE AREA TEE MARKER IN-0050 INSTALLATION INSTRUCTIONS | PAGE 4...

  • Page 5: Mounting Types

    MOUNTING TYPE VESA 100X100 MOUNT SIDE VIEW SIDE VIEW HITTING SURFACE HITTING SURFACE To ensure a functional system, select a mounting type for installing your Trackman iO: Use Mounting Type A (direct ceiling mount) when the distance between the HITTING SURFACE and the • CEILING SURFACE is between 285 cm / 9’4” – 305 cm / 10’0” as listed in the Space requirements. SIDE VIEW HITTING SCREEN CEILING SURFACE • I f the distance between the HITTING SURFACE and CEILING SURFACE is greater than 305 cm / 10’0”, use Mounting...

  • Page 6: Setup Types

    SETUP TYPES Projector and HITTING SCREEN setup A. • Image projected on HITTING SCREEN in front of player. B. PC screen and net setup • Image shown on separate monitor away from net. Both mounting types can be used for either setup type A or B. INSTALLATION MOUNTING SETUP PREREQUISITES IMPORTANT Keep the protective foil on your Trackman iO and do not insert the power cable until instructed. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 6...
  • Page 7 IMPORTANT Do not look directly into the light cone. Push the rear end of the flashlight into the flashlight bracket of the calibration board until it stops. FLASHLIGHT FLASHLIGHT BRACKET TEE-MARKER Set the calibration board on the HITTING SURFACE with the tee marker you placed in Step 1 in the center. The side with the flashlight should be facing the HITTING SCREEN/net. Using two golf clubs or alignment sticks on each side of the calibration board, align the calibration board with the preferred target point on the HITTING SCREEN/net. Typically, the target point is the vertical center of the HITTING SCREEN/net. HITTING SCREEN 90° 90° TOP VIEW The flashlight beam now indicates where your Trackman iO should be positioned at your CEILING SURFACE. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 7...
  • Page 8 1GB CAT 6 LAN CABLE INTERNET Climb the ladder and use the pen/pencil to draw an “X” on the CEILING SURFACE in the center of the flashlight beam. IMPORTANT Have a person assist by supporting the ladder for safety. SIDE VIEW HITTING SCREEN CEILING SURFACE CEILING TEE MARKER CALIBRATION TARGET HITTING SURFACE Now pick up the calibration board/flashlight from the floor and flip it so that the pattern is facing the floor. Hold the calibration board against the CEILING SURFACE so that the X you drew in Step 5 is positioned in the center hole. Make sure the calibration board is parallel to the HITTING SCREEN/net. The tee marker you placed in Step 1 should be in the center of the flashlight beam. IMPORTANT Do not remove the tee marker until instructed. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 8...
  • Page 9 CEILING SIDE VIEW VESA 100X100 MOUNT PLUMB LINE Remove the calibration board from the CEILING SURFACE and turn off the flashlight. Choose appropriate drill bit size for your rawplugs/wall anchors and drill four holes. (Eg. concrete ceiling) DISTANCE FROM CENTER TEE MARKER TO CENTER OF VESA Insert a raw plug/wall anchor in each of the drilled holes. 100X100 MOUNT Gently place your Trackman iO onto a blanket or towel with the back of the device facing up. HITTING SURFACE PREFERRED TEE MARKER POSITION IN-0050 INSTALLATION INSTRUCTIONS | PAGE 9...
  • Page 10 IMPORTANT Do not remove the protective foil on the front cover until instructed. PRESS PRESS Remove the ceiling bracket from the back of your Trackman iO by simultaneously pressing the two release buttons/pins on each side of the bracket housing. M ount the ceiling bracket on the CEILING SURFACE using four screws and the pill-shaped slots. Before tightening the screws, adjust the bracket as needed to make sure it is mounted parallel to the HITTING SCREEN/net. Do not overtighten. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 10...
  • Page 11 Using both hands, mount your Trackman iO by lifting it at an angle toward the ceiling bracket and pushing it lightly in place until you hear a click. Do not let go of the unit until you are sure the lock has engaged. CLICK CEILING IMPORTANT Hold the Trackman iO carefully in both hands when mounting it in the bracket. Now it’s time to complete the installation. Skip ahead to the “Powering up your Trackman iO“ section. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 11...

  • Page 12: Mounting Type B Installation Process

    MOUNTING TYPE B INSTALLATION PROCESS BEFORE YOU BEGIN: The following steps will show you how to use your preferred tee marker location to determine the proper position of the VESA mount (100x100) on the CEILING SURFACE. For best results, the adjustable pole/bracket on the VESA mount should be set to the recommended mounting height of 295 cm / 9’8”. Please read these instructions carefully and double-check your measurements to ensure they are within the guidelines. RECOMMENDED: This process is best performed by two people. Place the tee marker at the preferred tee/ball position on the HITTING SURFACE at least 250cm/8’2” from the HITTING SCREEN/net. If your HITTING SURFACE allows, use a tee to fix the position of the tee marker. IMPORTANT Do not remove the tee marker until the entire installation process is complete. Set the calibration board on the HITTING SURFACE with the tee marker in the center. Using two golf clubs or alignment sticks on each side of the calibration board, align the calibration board with the preferred target point on the HITTING SCREEN/net. Typically, the target point is the vertical center of the HITTING SCREEN/net.
  • Page 13 TO CENTER OF VESA 100X100 MOUNT HITTING SURFACE PREFERRED TEE MARKER POSITION Position the base of the VESA mount on the CEILING SURFACE so that the center of the adjustable pole extends from the center of the X you marked in Step 4. Attach the base of the VESA mount to the CEILING SURFACE following manufacturer’s instructions. Adjust the pole on the VESA mount so that the bracket that attaches to your Trackman iO is set to the recommended mounting height of 295 cm / 9’8” as shown in Table 2 (see NOTE below). NOTE: Table 2 shows the relation between the mounting height and the proper position of the tee marker on the HITTING SURFACE. Please note that if the mounting height is higher or lower than recommended (but still within the guidelines), you may need to adjust the position of the tee marker slightly. If your Trackman iO is not installed according to the guidelines in Table 2, it may not function properly. Distance from center of tee Mounting height (cm) /(ft/in) Comments marker to center of VESA mount cm ft/in ft/in 105 3’5” 305 10’0...
  • Page 14 IMPORTANT Have a person assist you fastening the 4 pcs M6 screws while holding the Trackman iO in both hands. Attach your Trackman iO to the VESA mount bracket using the supplied 4 pcs. M6 screws and tighten. M6 SCREW M6 SCREW VESA MOUNT ( NOT INCLUDED) M6 SCREW M6 SCREW M6 SCREW M6 SCREW M6 SCREW VESA MOUNT ( NOT INCLUDED) M6 SCREW Ensure the VESA mount is level and your Trackman iO is aligned with the HITTING SCREEN.

  • Page 15: Powering Up Your Trackman Io

    POWERING UP YOUR TRACKMAN iO Once your Trackman iO is securely mounted, plug the ethernet cable into the ethernet port. ETHERNET If your Trackman iO is mounted directly to the ceiling, use caution as there will be limited space IMPORTANT when plugging in the ethernet cable. Connect the AC/DC power adapter to your Trackman iO. • Connect mains powercable to AC/DC adapter. • Place the adapter on the shelf of the Trackman iO • Plug the DC connector into DC power plug on the side of Trackman iO • Make sure the adapter is fastened to your Trackman iO by the Velcro strips. CEILING IMPORTANT Be sure to disconnect the AC/DC adapter before unmounting the Trackman iO. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 15...

  • Page 16: Your Installed Simulator Room

    Ready (no PC connected) Pulsating green Active (PC/TPS connected) Solid green Recovery mode Blinking green/red No Network connection Blinking yellow Error Blinking red Table 3. The Trackman iO status indicator YOUR INSTALLED SIMULATOR ROOM TMiO CEILING SURFACE PROJECTOR PREFERRED TEE HITTING SURFACE MARKER POSITION IMPORTANT Your Trackman iO must be oriented as shown above. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 16...

  • Page 17: Connecting Your Trackman Io To A Pc And The Internet

    CONNECTING YOUR TRACKMAN iO TO A PC AND THE INTERNET SWITCH MUST BE MINIMUM 1GB 1GB CAT 6 LAN CABLE USB TO LAN ADAPTOR LAN CABLE PC MUST BE ACCORDING TO TRACKMAN SPECIFICATION 1GB CAT 6 LAN CABLE INTERNET PC minimum requirements and recommended internet connection minimum upload/download.

  • Page 18: Connecting To Your Trackman Io

    CONNECTING TO YOUR TRACKMAN iO Turn off any other Trackman device normally connected to the system to avoid TPS auto-connecting to it. Launch TPS and wait for it to load Click the Trackman logo at the bottom of the screen. You should be presented with a screen showing the Trackman iO as available. Select it. You may see a screen informing you about a license update to the device. Press OK. You should be presented with a screen informing you that a software update is available for the device. Press the button and wait while TPS downloads the required software to the computer. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 18...

  • Page 19: Calibrating Your Trackman Io

    CALIBRATING YOUR TRACKMAN iO Your Trackman iO needs to be calibrated to know its position in the room relative to the TEE AREA and the HITTING SCREEN. After connecting to your Trackman iO, you should be presented with a screen showing an image from one of the cameras in your Trackman iO. Alignment camera showing HITTING SCREEN Main camera showing TEE AREA If your Trackman iO has never been calibrated before it will show a view of the TEE AREA automatically Do you see a view of the TEE AREA? No: Press “Calibrate” Yes: Proceed P lace the supplied calibration board on the floor and position it in the center of the image. When placed correctly, you will see two crosses inside the hole in the board. The position of the hole indicates the optimal placement of the tee marker. Press “Calibrate” P ick up the calibration board and hold it against the HITTING SCREEN without covering the four corner markers on the calibration board. Now calibrate the distance from the TEE POSITION to the HITTING SCREEN.

  • Page 20: Mounting Screw Recomendations

    6 mm 12 mm VESA 100x100 mount (Drop pole) PLUGGABLE EQUIPMENT The system can be used in both pluggable equipment type A. In both situations the socket-outlet shall be installed near the equipment, shall be easily accessible and must always include a Grounded connection. For Pluggable Equipment Type A, the protection in the installation must be max 20A (USA, Canada, Japan), max 13A (UK, EU). UPDATES AND INSTALLATION VIDEO Future updates of the theese instructions can be downloaded at https://www.Trackman.com/support. Scan the QR code to watch an animated installation video. You can also find the video at www.trackman.com/support. IN-0050 INSTALLATION INSTRUCTIONS | PAGE 20...
