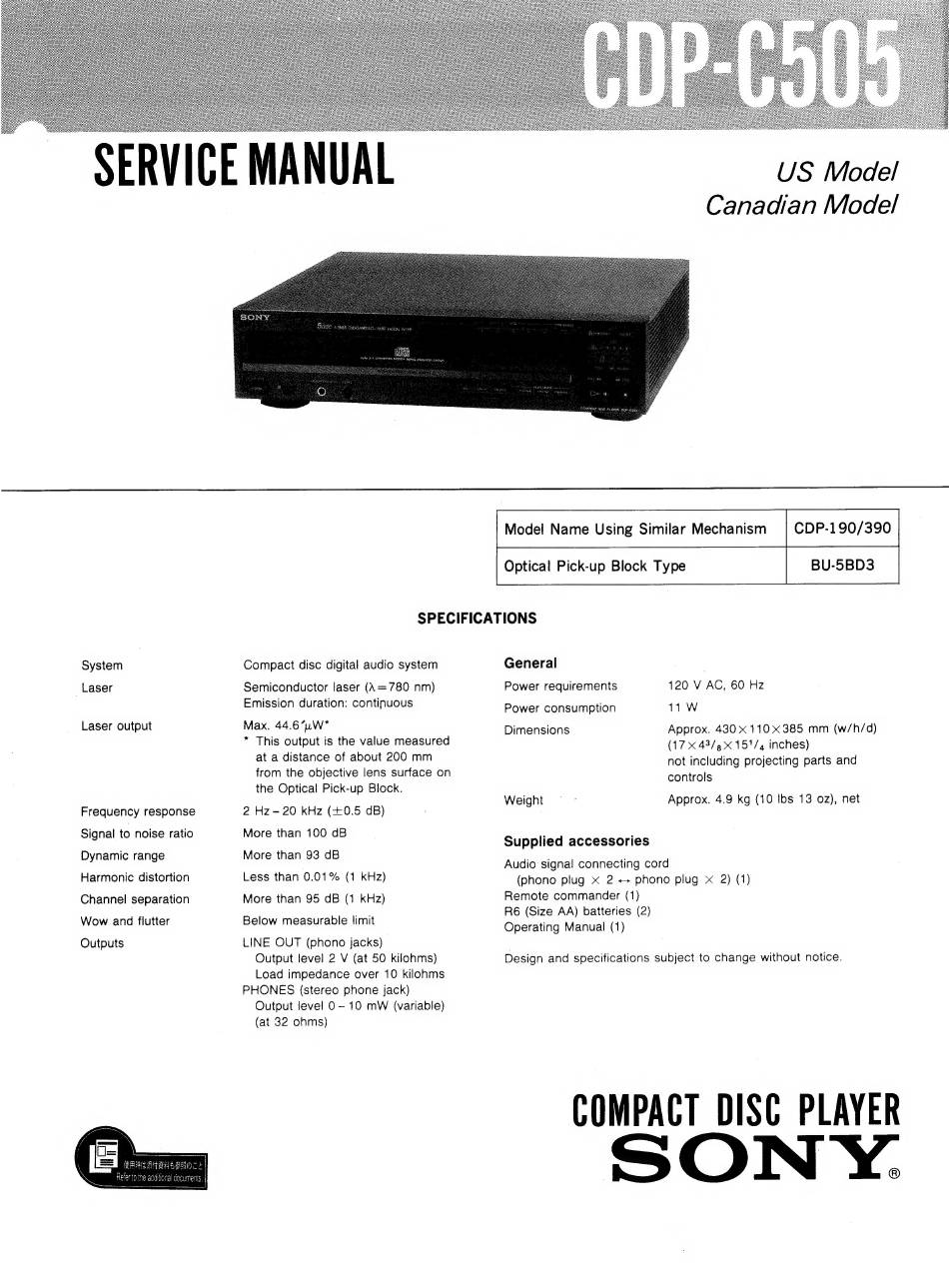

SERVICE MANUAL
System
Laser
Laser output
Frequency response
Signal to noise ratio
Dynamic range
Harmonic distortion
Channel separation
Wow and flutter
Outputs
US Model
Canadian Model
Model Name Using Similar Mechanism
| CDP-190/390
SPECIFICATIONS
Compact disc digital audio system
Semiconductor laser (A=780 nm)
Emission duration: continuous
Max. 44.6 "uW*
* This output is the value measured
at a distance of about 200 mm
from the objective lens surface on
the Optical Pick-up Block.
2 Hz- 20 kHz (+0.5 dB)
More than 100 dB
More than 93 dB
Less than 0.01%
(1 kHz)
More than 95 dB (1 kHz)
Below measurable limit
LINE OUT (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
PHONES
(stereo phone jack)
Output level O- 10 mW
(variable)
(at 32 ohms}
Optical Pick-up Block Type
BU-5BD3
General
.
Power requirements
120 V AC, 60 Hz
Power consumption
11 W
Dimensions
Approx.
430 x 110 x 385 mm (w/h/d)
(17 x 43/3 x 151/4 inches)
not including projecting parts and
controls
Weight
:
Approx. 4.9 kg (10 Ibs 13 02), net
Supplied accessories
Audio signal connecting cord
(phono plug x 2 ++ phono plug x 2) (1)
Remote commander (1)
R6 (Size AA) batteries (2)
Operating Manual (1)
Design and specifications subject to change without notice.
COMPACT DISC PLAYER
ONY.
