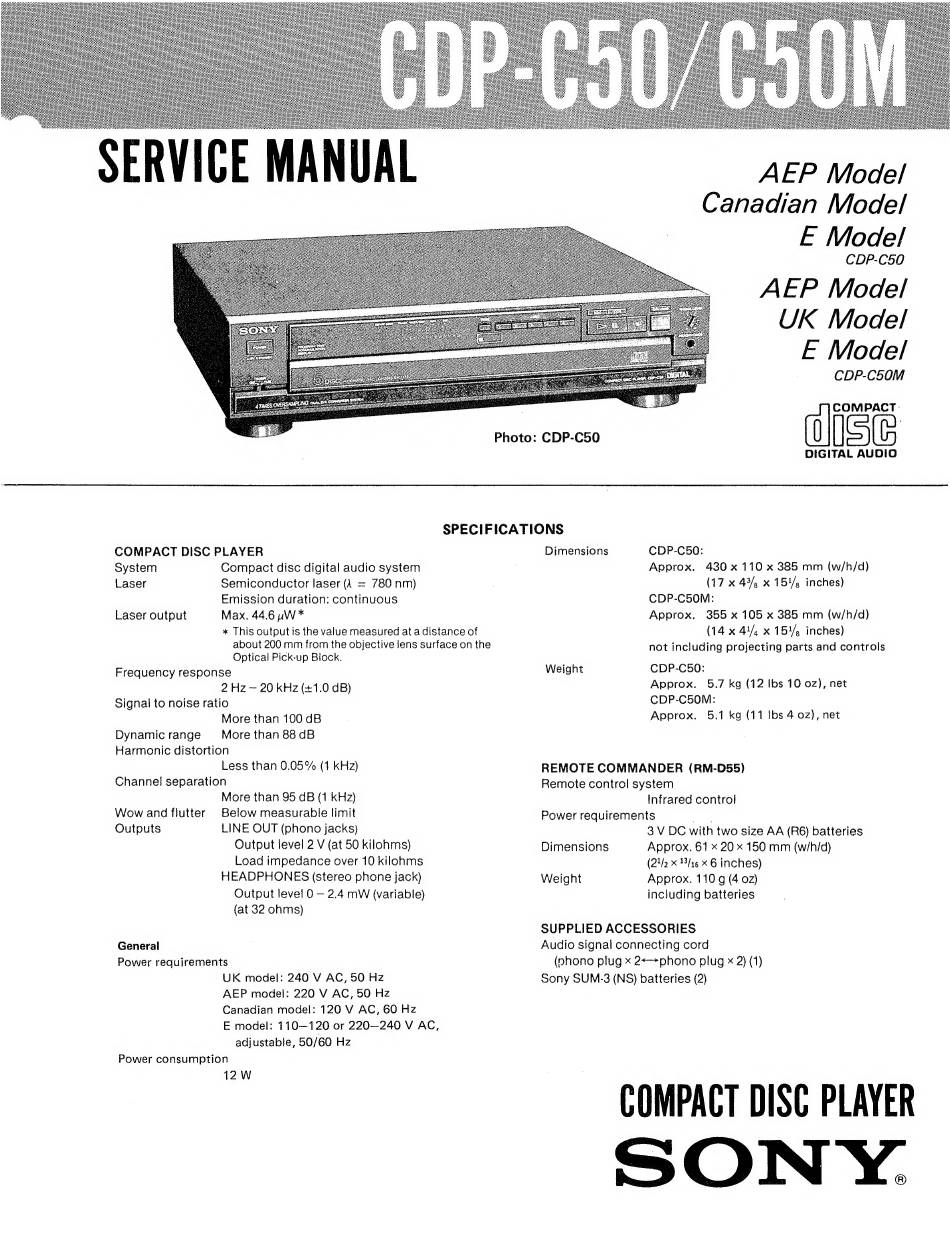

Sony CDP-C50 Service Manual

Photo: CDP-C50
SPECIFICATIONS
COMPACT DISC PLAYER Dimensions
System Compact disc digital audio system
Laser Semiconductor laser (A = 780 nm)
Emission duration: continuous
Laser output Max. 44.6 pW *
* This output is the value measured at a distance of
about 200 mm from the objective lens surface on the
Optical Pick-up Block.
Frequency response Weight
2 Hz — 20 kHz (+1.0 dB)
Signal to noise ratio
More than 100 dB
Dynamic range More than 88 dB
Harmonic distortion
AEP Model!
Canadian Model
E Mode!
CDP-C50
AEP Model
UK Model
E Model
CDP-C50M
OSG
DIGITAL AUDIO
CDP-C50:
Approx. 430 x 110 x 385 mm (w/h/d)
(17 x 43/, x 15¥/s inches)
CDP-C50M:
Approx. 355 x 105 x 385 mm (w/h/d)
(14x 4'/, x 151/s inches)
not including projecting parts and controls
CDP-C5O:
Approx. 5.7 kg (12 Ibs 10 oz), net
CDP-C50M:
Approx. 5.1 kg (11 lbs 4 oz), net
_ Less than 0.05% (1 kHz) REMOTE COMMANDER (RM-D55)
Channel separation Remote contro! system
More than 95 dB (1 kHz)
Wow and flutter Below measurable limit
Infrared control
Power requirements
Outputs LINE OUT (phono jacks) 3 V DC with two size AA (R6) batteries
Output level 2 V (at 50 kilohms) Dimensions Approx. 61 x 20 x 150 mm (w/h/d)
Load impedance over 10 kilohms (242 x 3/16 x 6 inches)
HEADPHONES (stereo phone jack) Weight Approx. 110 g (4 02)
Output level 0 — 2.4 mW (variable) including batteries
{at 32 ohms)
SUPPLIED ACCESSORIES
General Audio signal connecting cord
Power requirements (phono plug x 2+phono plug ~ 2) (1)
UK model: 240 V AC, 50 Hz Sony SUM-3 (NS) batteries (2)
AEP model: 220 V AC, 50 Hz
Canadian model: 120 V AC, 60 Hz
E model: 110—120 or 220—240 V AC,
adjustable, 50/60 Hz
Power consumption
12 W
COMPACT DISC PLAYER
