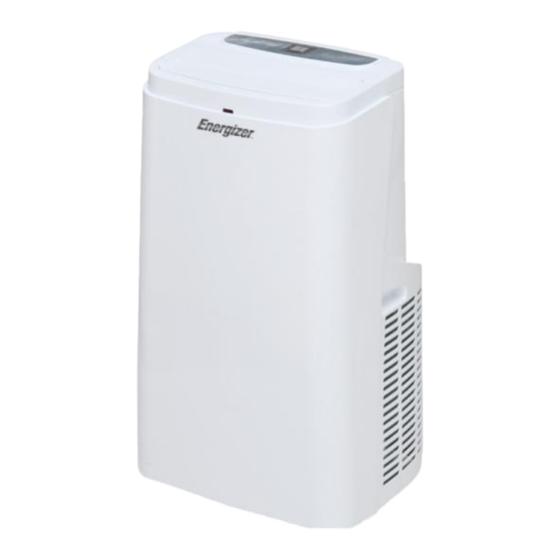

- Page 1 ORIGINAL INSTRUCTIONS PORTABLE LOCAL AIR CONDITIONER EZCP12000-UK USER GUIDE Note: Please read the instructions before using the machine!
- Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Let's get started. You're excited to power up, so we'll keep this brief!
- Page 4 The refrigerant used in mobile air conditioners is the environmentally friendly hydrocarbon R290.This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant, and its effect on the environment is very low. Please read the instructions before use and repair. The drawings provided in this manual may not be the same as the physical objects.
- Page 5 breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. 9. Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of the person competent in...
- Page 6 Place the machine in a flat and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls. After the air conditioning is installed, ensure that the power plug is intact and firmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.
- Page 7 Do not pull the plug to turn off the machine. Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning. Do not use insecticide sprays or other flammable substances near the air conditioning.
- Page 8 Pipe-work should be protected from physical damage and should not be installed in an unventilated space. Compliance with national gas regulations should be observed. Mechanical connections should be accessible for maintenance purposes. The minimum floor area of the room should be mentioned in the form of a table or a single figure without reference to a formula.
- Page 9 assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of the person competent in the use of flammable refrigerants.
- Page 10 off. Ensure that the conditions within the area have been made safe by control of flammable material. 4) Checking for presence of refrigerant The area should be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres.
- Page 11 to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs should be displayed. 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
- Page 12 and legible. Markings and signs that are illegible should be corrected. Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
- Page 13 2. Repairs to sealed components During repairs to sealed components, all electrical supplies should be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection should be located at the most critical point to warn of a potentially hazardous situation.
- Page 14 exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus should be at the correct rating. Replace components only...
- Page 15 equipment should be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment should be set at a percentage of the LFL of the refrigerant and should be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
- Page 16 The refrigerant charge should be recovered into the correct recovery cylinders. The system should be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen should not be used for this task. Flushing should be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and...
- Page 17 refrigeration system. Prior to recharging the system it should be pressure tested with OFN. The system should be leak tested on completion of charging but prior to commissioning. A follow up leak test should be carried out prior to leaving the site.
- Page 18 refrigerant can be removed from various parts of the system. Make sure that cylinder is situated on the scales before recovery takes place. Start the recovery machine and operate in accordance with manufacturer's instructions. Do not overfill cylinders. (No more than 80% volume liquid charge).
- Page 19 Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders should be complete with pressure relief valve and associated shut-off valves in good working order.
- Page 20 The evacuation process should be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body should be employed to accelerate this process. When oil is drained from a system, it should be carried out safely. 12.
- Page 21 II.Features and Components 1、Features *Brand new appearance, compact structure, smooth line, simple and generous shape. *Functions of refrigeration, dehumidification, air supply and continuous drainage *Outdoor interface is set high to facility assembly and keep the smooth flow of the heat pipe. *LED displays the control panel, beautiful and fashionable, with high-quality remote control.It adopts a user-friendly remote control design.
- Page 22 Window Sealing Plate Assembly 排 热 管 组 件 件 III. Control Setting 1.Control panel operation instructions 1）operation interface： 1: When the machine is powered on for the first time, the buzzer will shout, and then the machine will get into standby status. 2: Power Key: press the key to turn on and turn off the machine.
- Page 23 2.operation instructions of remote control The remote control Panel is as follows: Single cold remote control Remote control with heating function Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2.
- Page 24 machine recovers. 3.5 Protection Function of the Compressor To increase the service life of the compressor, it has a 3-minute delay booting protection function after the compressor is turned off. V.Installation and adjustment 1.Installation： Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room.
- Page 25 Figure4 3）Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6) . Notes：1、the flat end of the exhaust pipe joints must be snapped into place. 2、The pipe cannot be distorted nor has substantial turning (greater than 45 °).
- Page 26 VII. Maintenance Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug. 1．Clean the surface Clean with surface of machine with a wet soft cloth. Don't use chemicals, such as benzene, alcohol, gasoline, etc; otherwise, the surface of the air conditioning will be damaged or even the whole machine will bedamaged.
- Page 27 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
- Page 28 • Purge again with inert gas; • Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
- Page 29 inside of the body in a dry state and prevent it from mildewing. 3:Turn off the machine, unplug the power plug, and wrap the power cord around the wrapping post; install the water plug and the drainage cover. 4:Remove the exhaust pipe and keep it properly. 5:Cover the air conditioning with a plastic bag.
- Page 30 All the technical and specific parameters,please refer to product nameplate. Due to continuous improvement,we reserve the right to change some design without any notice. Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
-
Page 31: Warranty
WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 32: P R O D U C T Fa I L U R E
P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 33: Warranty Exclusions
WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
