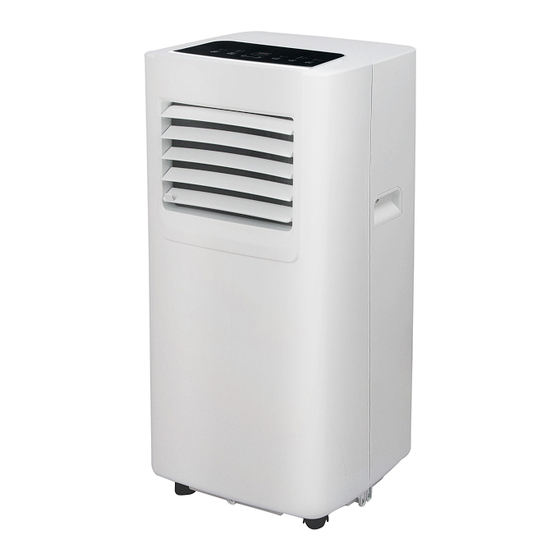

Energizer EZCP7000-UK User Manual

Portable local air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS
PORTABLE LOCAL AIR CONDITIONER
EZCP7000-UK
USER GUIDE
Note: Please read the instructions before using the machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZCP7000-UK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Energizer EZCP7000-UK

Summary of Contents for Energizer EZCP7000-UK

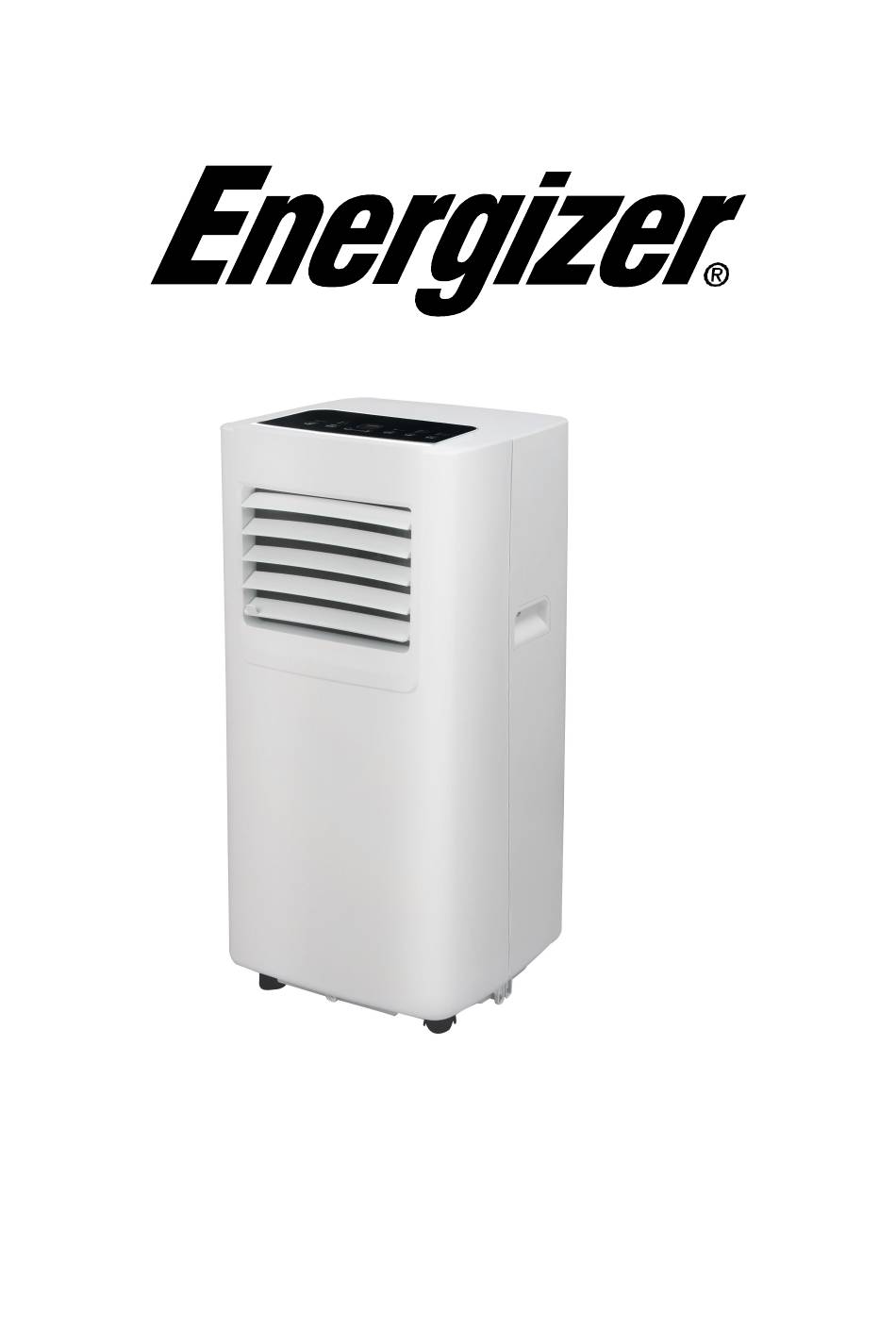

  • Page 1 ORIGINAL INSTRUCTIONS PORTABLE LOCAL AIR CONDITIONER EZCP7000-UK USER GUIDE Note: Please read the instructions before using the machine!
  • Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.

  • Page 3: Let's Get Started

    Let's get started. You're excited to power up, so we'll keep this brief!
  • Page 4 The refrigerant used in mobile air conditioners is the environmentally friendly hydrocarbon R290.This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant, and its effect on the environment is very low. Please read the instructions before use and repair. The drawings provided in this manual may not be the same as the physical objects.
  • Page 5 breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. 9. Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of the person competent in...
  • Page 6  Place the machine in a flat and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls.  After the air conditioning is installed, ensure that the power plug is intact and firmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.
  • Page 7  Do not pull the plug to turn off the machine.  Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning.  Do not use insecticide sprays or other flammable substances near the air conditioning.
  • Page 8  Pipe-work should be protected from physical damage and should not be installed in an unventilated space.  Compliance with national gas regulations should be observed.  Mechanical connections should be accessible for maintenance purposes.  The minimum floor area of the room should be mentioned in the form of a table or a single figure without reference to a formula.
  • Page 9 assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.  Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of the person competent in the use of flammable refrigerants.
  • Page 10 off. Ensure that the conditions within the area have been made safe by control of flammable material. 4) Checking for presence of refrigerant The area should be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres.
  • Page 11 to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs should be displayed. 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
  • Page 12 and legible. Markings and signs that are illegible should be corrected.  Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
  • Page 13 2. Repairs to sealed components  During repairs to sealed components, all electrical supplies should be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection should be located at the most critical point to warn of a potentially hazardous situation.
  • Page 14 exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus should be at the correct rating. Replace components only...
  • Page 15 equipment should be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment should be set at a percentage of the LFL of the refrigerant and should be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
  • Page 16 The refrigerant charge should be recovered into the correct recovery cylinders. The system should be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen should not be used for this task. Flushing should be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and...
  • Page 17 refrigeration system. Prior to recharging the system it should be pressure tested with OFN. The system should be leak tested on completion of charging but prior to commissioning. A follow up leak test should be carried out prior to leaving the site.
  • Page 18 refrigerant can be removed from various parts of the system.  Make sure that cylinder is situated on the scales before recovery takes place.  Start the recovery machine and operate in accordance with manufacturer's instructions.  Do not overfill cylinders. (No more than 80% volume liquid charge).
  • Page 19 Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders should be complete with pressure relief valve and associated shut-off valves in good working order.
  • Page 20 The evacuation process should be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body should be employed to accelerate this process. When oil is drained from a system, it should be carried out safely. 12.

  • Page 21: Features And Components

    II. FEATURES AND COMPONENTS 1. Features  Brand new appearance, compact structure, smooth line, simple and generous shape.  With cooling, heating (single cold with no such function), dehumidification and fan function.  LED displays the control panel, beautiful and fashionable, with high-quality remote control. It adopts a user-friendly remote control design.

  • Page 22: Control Setting

    III. CONTROL SETTING 1. Control panel operation instructions Operation interface 1. Power Key 2. Mode Key 3. Sleep Key 4. Down Key 5. Up Key 6. Speed Key 7. Timer Key When the machine is powered on for the first time, the machine will get into standby status. 1.

  • Page 23: Protection Function

    2. Operating instructions of remote control The remote control Panel is as follows: Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2. Timer: Press the key to set timing.

  • Page 24: Installation And Adjustment

    To protect the service life of the machine, the machine has overheat protection in heating mode. During the protection period, the compressor and the lower motor will stop operation and will automatically return to normal heating state after the temperature of the machine recovers. 5.

  • Page 25: Drainage Instructions

    Fig.3 Fig.4 Important Notice: The length of the exhaust hose should be 280~1,500mm, and this length is based on the specifications of the air conditioning. Do not use extension tubes or replace it with a different hose, as this may cause a malfunction. Exhaust hose must be not blocked; otherwise it may cause overheating.

  • Page 26: Maintenance

    VII. MAINTENANCE Cleaning: Before cleaning and maintenance, turn off the machine and unplug the plug. 1. Clean the surface Clean surface of machine with a wet soft cloth. Do not use chemicals such as benzene, alcohol, gasoline, etc., as these can damage the surface of the air conditioning and/or the whole machine. 2.

  • Page 27: Troubleshooting

    IX. TROUBLESHOOTING Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Problems Reasons Solutions Turn it on after connecting it to a socket with There is no electricity electricity The water-full indicator will...
  • Page 28 X. ADDENDUM Schematic diagram for air conditioning (The specific technical parameters of the machine should be subject to the nameplate on the product) Condenser Compressor Evaporator Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.

  • Page 29: Warranty

    XI. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear.
  • Page 30 XII. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
  • Page 31 XIII. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
