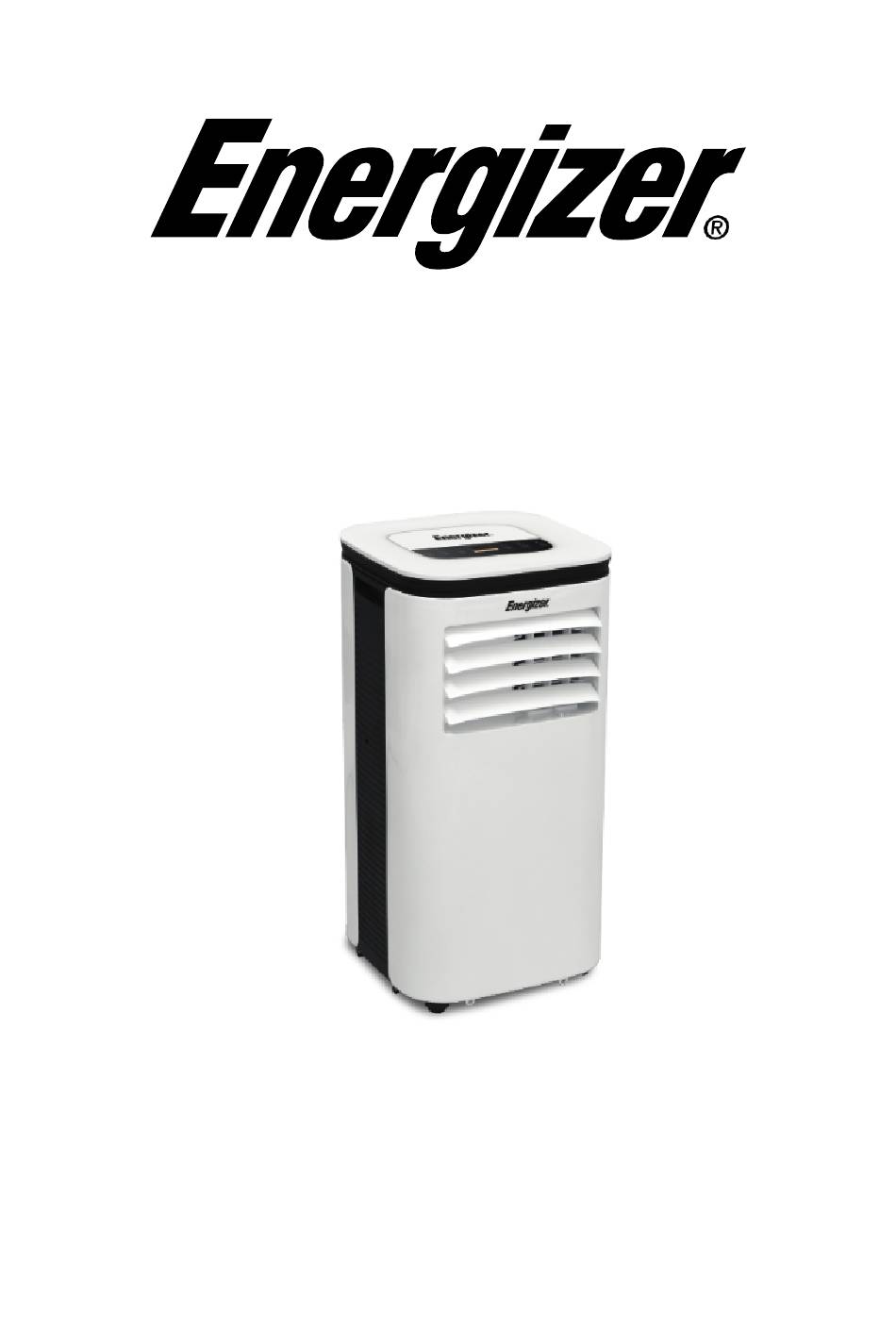

- Page 1 ORIGINAL INSTRUCTIONS LOCAL AIR CONDITIONER Instruction Manual PORTABLE LOCAL AIR CONDITIONER EZCP9000 USER GUIDE Note: Please read the instructions before using the machine!
- Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
-
Page 3: Let's Get Started
Let's get started. You're excited to power up, so we'll keep this brief! - Page 4 The refrigerant used in mobile air conditioners is the environmentally friendly hydrocarbon R290.This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant, and its effect on the environment is very low. Please read the instructions before use and repair. The drawings provided in this manual may not be the same as the physical objects.
- Page 5 corresponds to the room area as specified for operation. 8. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
- Page 6 air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it. Place the machine in a flat and dry place and keep a distance of above 50cm between the machine and the surrounding objects or walls.
- Page 7 an upright position. The machine should stay away from gasoline, flammable gas, stoves and other heat sources. Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine failure occurs, ask the manufacturer or professionals to repair it.
- Page 8 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
- Page 9 The minimum floor area of the room should be mentioned in the form of a table or a single figure without reference to a formula. An unventilated area where the appliance using flammable refrigerants is installed should be constructed so that, should any refrigerant leak, it will not stagnate so as to create a fire or explosion hazard.
- Page 10 Servicing should only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel should be carried out under the supervision of the person competent in the use of flammable refrigerants. 1.Information on servicing 1) Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to...
- Page 11 been made safe by control of flammable material. 4) Checking for presence of refrigerant The area should be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e.
- Page 12 during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs should be displayed. 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system...
- Page 13 containing parts are installed. The ventilation machinery and outlets are operating adequately and are not obstructed. If an indirect refrigerating circuit is being used, the secondary circuit should be checked for the presence of refrigerant. Marking to the equipment continues to be visible and legible.
- Page 14 temporary solution should be used. This should be reported to the owner of the equipment so all parties are advised. Initial safety checks should include: That capacitors are discharged: this should be done in a safe manner to avoid possibility of sparking.
- Page 15 not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts should be in accordance with the manufacturer’s specifications.
- Page 16 4. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check should also take into account the effects of aging or continual vibration from sources such as compressors or fans. 5.
- Page 17 gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine should be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames should be removed/extinguished.
- Page 18 The refrigerant charge should be recovered into the correct recovery cylinders. The system should be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen should not be used for this task. Flushing should be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and...
- Page 19 Cylinders should be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extreme care should be taken not to overfill the refrigeration system.
- Page 20 Before attempting the procedure ensure that: o Mechanical handling equipment is available, if required for handling refrigerant cylinders. o All personal protective equipment is available and being used correctly. o The recovery process is supervised at all times by a competent person. o Recovery equipment and cylinders conform to the appropriate standards.
- Page 21 and all isolation valves on the equipment are closed off. Recovered refrigerant should not be charged into another refrigeration system unless it has been cleaned and checked. 10. Labeling Equipment should be labeled stating that it has been de-commissioned and emptied of refrigerant. The label should be dated and signed.
- Page 22 in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment should be in good working order with a set of instructions concerning the equipment that is at hand and should be suitable for the recovery of flammable refrigerants.
- Page 23 remain within the lubricant. The evacuation process should be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body should be employed to accelerate this process. When oil is drained from a system, it should be carried out safely. 12.
- Page 24 : CAUTION, Risk of fire Read instruction manual Any repairs you may need, contact the nearest authorized Service Centre and strictly follow manufacturer's instruction only. 2. Components: Exhaust Pipe Assembly Window Sealing Plate Assembly...
- Page 25 Installation and Adjustment 1. Installation: Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room. In the moving process, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a flat surface.
- Page 26 Fig.4 2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6) . Notes: 1. the flat end of the exhaust pipe joints must be snapped into place. 2.
- Page 27 1: When the machine is powered on for the first time, the buzzer will shout, and then the machine will get into standby status. 2: Power Key: press the key to turn on and turn off the machine. In the case of power on, press the key to turn off the machine; in the case of power off, press the key to turn on the machine.
- Page 28 Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2. Timer: press the key to set timing. 3. Down: press the key to reduce temperature and timing set value. 4.
- Page 29 1. Keep the drainage cover and the water plug properly. 2. During drainage, the body can be tilted slightly backwards. 3. If the water container cannot hold all the water, before the water container is full, stuff the water outlet with the water plug as soon as possible to prevent water from flowing to the floor or the carpet.
- Page 30 Unit Storage: 1: Unscrew the drainage cover, unplug the water plug, and discharge the water in the water pan into other water containers or directly tilt the body to discharge the water into other containers. 2: Turn on the machine, adjust it to low-wind ventilation mode, and maintain this state until the drainage pipe becomes dry, so as to keep the inside of the body in a dry state and prevent it from mildewing.
- Page 31 contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
- Page 32 environmental effects. The check shall also take into ccount the effects of aging or continual vibration from sources such as compressors or fans. 5. Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
-
Page 33: Troubleshooting
available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that: • Mechanical handling equipment is available, if required for handling refrigerant cylinders; • All personal protective equipment is available and being used correctly; •... - Page 34 Turn it on after connecting it to a socket There is no electricity. with electricity. The water-full indicator will flash. Discharge the water inside. The ambient temperature is too Recommend to use the machine in at the low or too high temperature of 7-35 ℃.
- Page 35 Capillary Condenser Evaporator Compressor All the technical and specific parameters, please refer to product nameplate. Due to continuous improvement, we reserve the right to change some design without any notice. Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
-
Page 36: Warranty
WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. - Page 37 P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 38 WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
