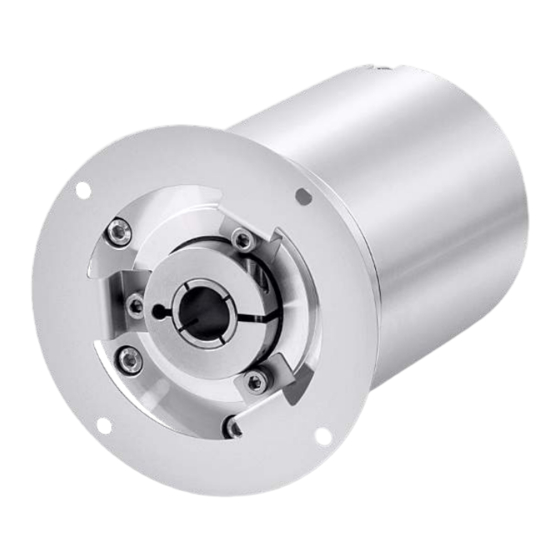

Smart encoders & actuators
XAC77 MT
ATEX certification category 2
for use in zones 1, 21, 2, 22
and temperature class T6 (T85°C)
• 18-bit singleturn encoder version for high precision demands
• 30-bit multiturn encoder version for high end applications
• Complies with the "Modbus over TCP/IP" protocol
Suitable for the following models:
XAC7718/1MT
•
XAC7716/16384MT
•
Lika Electronic

User's guide

•
Tel. +39 0445 806600
II2 GD, Ex d IIC T6 Gb, Ex tb IIIC T85°C Db, IP65
II2 GD, Ex d IIB T6 Gb, Ex tb IIIC T85°C Db, IP65
General Contents
1 Safety summary
2 Identification
3 ATEX certificate
4 Safety instructions
5 Mounting instructions
6 Electrical connections
7 Quick reference
8 MODBUS® TCP/IP interface
9 Programming parameters
10 Integrated web server
•
info@lika.biz
17
19
20
27
29
32
36
37
54
77
•
www.lika.biz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAC77 MT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lika XAC77 MT

Summary of Contents for Lika XAC77 MT

  • Page 1: User's Guide

    User's guide Smart encoders & actuators XAC77 MT ATEX certification category 2 for use in zones 1, 21, 2, 22 and temperature class T6 (T85°C) II2 GD, Ex d IIC T6 Gb, Ex tb IIIC T85°C Db, IP65 II2 GD, Ex d IIB T6 Gb, Ex tb IIIC T85°C Db, IP65 •...
  • Page 2 Tous droits réservés. This document and information contained herein are the property of Lika Electronic s.r.l. and shall not be reproduced in whole or in part without prior written approval of Lika Electronic s.r.l. Translation, reproduction and total or partial modification (photostat copies, film and microfilm included and any other means) are forbidden without written authorisation of Lika Electronic s.r.l.

  • Page 3: Table Of Contents

    General contents User's guide......................................1 General contents.....................................3 Subject index.....................................6 Typographic and iconographic conventions........................7 Preliminary information................................8 Glossary of MODBUS TCP/IP terms............................9 List of abbreviations...................................15 References......................................16 1 Safety summary..................................17 1.1 Safety......................................17 1.2 Electrical safety..................................17 1.3 Mechanical safety................................18 1.4 Operational safety................................18 2 Identification....................................19 3 ATEX certificate..................................20 4 Safety instructions..................................27 5 Mounting instructions................................29 5.1 Encumbrance sizes................................29...
  • Page 4 EXCEPTION..................................53 9 Programming parameters..............................54 9.1 Parameters available................................54 9.1.1 Holding Register parameters..........................54 Watchdog timeout [82]..............................55 Current position [95-96]............................55 Speed value [97-98]..............................55 Status word [99-100]..............................56 Counts per revolution [101-102].........................56 Total Resolution [103-104].............................57 Preset value [105-106]...............................59 Speed format [107-108]............................61 Operating parameters [109-110].........................61 Scaling function................................61 Code sequence................................62 Control Word [111-112]............................63...
  • Page 5 10.4 Encoder information (MODBUS registers)......................81 10.5 Setting the Preset value..............................82 10.6 Setting the registers................................84 10.7 Firmware upgrade................................88 10.8 Network configuration..............................94 11 Programming examples..............................97 11.1 Using the 03 Read Holding Registers function code..................97 11.2 Using the 04 Read Input Registers function code.....................98 11.3 Using the 06 Write Single Register function code....................99 11.4 Using the 16 Write Multiple Registers function code...................100 12 Default parameters list..............................102...

  • Page 6: Subject Index

    Subject index PCB Hardware Version [131-132]......69 Perform counting preset..........64 Alarm..................72 Preset value [105-106]..........59 Alarm registers [121-122]..........67 Preset value error.............68 PROCESS_ACTIVE.............53 Code sequence............62, 72 Control Word [111-112]..........63 Restore default parameters.........63 Counts per revolution [101-102]......56 Counts per revolution error.........68 Current position [1-2]............71 Save parameters...............63 Current position [95-96]..........55 Scaling function............61, 72...

  • Page 7: Typographic And Iconographic Conventions

    Typographic and iconographic conventions In this guide, to make it easier to understand and read the text the following typographic and iconographic conventions are used: parameters and objects both of the device and the interface are coloured in GREEN; • alarms are coloured in RED;...

  • Page 8: Preliminary Information

    Preliminary information This guide is designed to provide the most complete information the operator needs to correctly and safely install and operate the following rotary encoders equipped with MODBUS TCP/IP interface: XAC7718/1MT-xx ATEX 18 bit singleturn encoder • XAC7716/16384MT-xx ATEX 16+14 bit multiturn encoder •...

  • Page 9: Glossary Of Modbus Tcp/Ip Terms

    Glossary of MODBUS TCP/IP terms MODBUS TCP/IP, like many other networking systems, has a set of unique terminology. Table below contains a few of the technical terms used in this guide to describe the MODBUS TCP/IP interface. They are listed in alphabetical order. Application Data Unit, it is the data frame of the MODBUS protocol.
  • Page 10 Valid codes are in the range of 1 ... 255 decimal (the range 128 – 255 is reserved and used for exception responses). Function code "0" is not valid. Lika encoders only implement public function codes. Refer to page 41.
  • Page 11 IEEE 1588 This standard defines a protocol enabling synchronisation of clocks in distributed networked devices (e.g. connected via Ethernet). Input register In the MODBUS data model, an Input register is the input data. An Input register has a 16-bit quantity, is provided by an I/O system, and allows read-only access.
  • Page 12 message to follow. Unit Identifier: 1 byte set by the Client and echoed by • the Server for identification of a remote slave connected on a serial line or on other buses. Refer to page 38. Media Access Control One of the sub-layers of the Data Link Layer that controls who gets access to the medium to send a message.
  • Page 13 packet inside the same node. Port numbers are divided between well-known port numbers (0-1023), registered user port numbers (1024-49151) and private-dynamic port numbers (49152-65535). For TCP, port number 0 is reserved and cannot be used. Ports allow TCP/IP to multiplex and demultiplex a sequence if IP datagrams that need to go to many different (simultaneous) application processes.
  • Page 14 and passengers. The data is actually transported by protocols. This is comparable to cars and commercial vehicles transporting passengers and goods on the highway. Tasks handled by the basic Transmission Control Protocol (TCP) and Internet Protocol (IP) (abbreviated to TCP/IP): 1.

  • Page 15: List Of Abbreviations

    List of abbreviations Table below contains a list of abbreviations (in alphabetical order) which may be used in this guide to describe the MODBUS TCP/IP interface. Application Data Unit HDLC High level Data Link Control Human Machine Interface Input/Output IETF Internet Engineering Task Force Internet Protocol Media Access Control...

  • Page 16: References

    References MODBUS Application Protocol Specification, Version V1.1b3 MODBUS messaging on TCP/IP implementation guide, Version V1.0b RFC 791, Internet Protocol, Sep81 DARPA RFC 1122 Requirements for Internet Hosts -- Communication Layers IEC 61918 Industrial communication networks – Installation of communication networks in industrial premises IEC 61784-5-13 Industrial communication networks –...

  • Page 17: Safety Summary

     failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment;  Lika Electronic assumes no liability for the customer's failure to comply with these requirements. 1.2 Electrical safety ...

  • Page 18: Mechanical Safety

     use the product according to the indicated degree of IP protection;  the maximum permissible environmental temperature is -20°C to +40°C / -4°F to +104°F (at continuous rotational speed of max. 6000 rpm). MAN XAC77 MT E 1.1.odt Safety summary 18 of 104...

  • Page 19: Identification

    MAC address printed on the label applied to its body. Information is listed in the delivery document too. Please always quote the order code, the serial number and the MAC address when reaching Lika Electronic for purchasing spare parts or needing assistance. For any information on the technical characteristics of the product refer to the technical catalogue.

  • Page 20: Atex Certificate

    XAC77 • MODBUS TCP/IP ATEX certificate MAN XAC77 MT E 1.1.odt ATEX certificate 20 of 104...
  • Page 21 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 21 of 104...
  • Page 22 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 22 of 104...
  • Page 23 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 23 of 104...
  • Page 24 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 24 of 104...
  • Page 25 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 25 of 104...
  • Page 26 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt ATEX certificate 26 of 104...

  • Page 27: Safety Instructions

    XAC77 • MODBUS TCP/IP Safety instructions MAN XAC77 MT E 1.1.odt Safety instructions 27 of 104...
  • Page 28 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt Safety instructions 28 of 104...

  • Page 29: Mounting Instructions

    For any information on the mechanical data and the electrical characteristics of the encoder please refer to the technical catalogue. 5.1 Encumbrance sizes Figure 1 - Encumbrance sizes MAN XAC77 MT E 1.1.odt Mounting instructions 29 of 104...

  • Page 30: Solid Shaft (Lkm-1758) And Fixing Plate (Lkm-1520)

    • fasten the fixing plate 1 to the rear of the motor using four M4 cylindrical head screws 3; • fix the collar 4 to the encoder shaft by means of the M3 screw. MAN XAC77 MT E 1.1.odt Mounting instructions 30 of 104...
  • Page 31 XAC77 • MODBUS TCP/IP MAN XAC77 MT E 1.1.odt Mounting instructions 31 of 104...

  • Page 32: Electrical Connections

    Mechanical components must be in stop. Do not open the encoder. No user serviceable parts inside the encoder! Figure 2 - Electrical connection and grounding point MAN XAC77 MT E 1.1.odt Electrical connections 32 of 104...

  • Page 33: Pwr Power Supply And Ethernet Connection

    Cables and connectors comply with the IEEE 802.3 Ethernet specifications. If you use a direct connection to a computer/controller without network components in between, you need to use a standard, “straight” network cable (not a crossover cable). MAN XAC77 MT E 1.1.odt Electrical connections 33 of 104...

  • Page 34: Ground Connection

    The MAC address can be found for commissioning purposes on the label applied to the encoder and is displayed in the Encoder Information page of the web server. MAN XAC77 MT E 1.1.odt Electrical connections 34 of 104...

  • Page 35: Setting The Ip Address And The Network Configuration Parameters

    Consecutive number The IP address must be assigned by the user to each interface of the unit to be connected in the network, the default IP address assigned by Lika Electronic is 192.168.1.10, while the default subnet mask is 255.255.255.0.

  • Page 36: Quick Reference

    (use the Save parameters command available • Control Word [111-112] in the registers, see on page 63). NOTE MODBUS TCP/IP protocol does not require any configuration file. MAN XAC77 MT E 1.1.odt Quick reference 36 of 104...

  • Page 37: Modbus® Tcp/Ip Interface

    XAC77 • MODBUS TCP/IP MODBUS® TCP/IP interface Lika MODBUS TCP/IP encoders are Slave (Server) devices and implement the MODBUS application protocol (level 7 of OSI model) and the “MODBUS messaging on TCP/IP” protocol (Ethernet: levels 1 & 2 of OSI model; TCP/IP: levels 3 &...

  • Page 38: General Modbus Frame Description

    That is, MODBUS TCP/IP combines a physical network (Ethernet) with a networking standard (TCP/IP), and a standard method of representing data (MODBUS as the application MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 38 of 104...
  • Page 39 MODBUS Client in the request and must be returned with the same value in the response by the Server. In a typical MODBUS TCP/IP Server application, the Unit Identifier is set to 00 hex or FF hex. MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 39 of 104...

  • Page 40: Modbus Pdus

    = MODBUS function code [1 byte]; request_data = this field is function code dependent and usually contains information such as variable references, variable counts, data offsets, sub- function, etc. [n bytes]. MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 40 of 104...

  • Page 41: Function Codes

    Reserved function codes are not available for public use. MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 41 of 104...

  • Page 42: Implemented Function Codes

    XAC77 • MODBUS TCP/IP 8.5.1 Implemented function codes Lika MODBUS TCP/IP encoders only implement public function codes, they are described hereafter. 03 Read Holding Registers FC = 03 (0003 hex) ro This function code is used to READ the contents of a contiguous block of Holding Registers (4X Reference Addresses) in a remote device;...
  • Page 43 MBAP Header + Response PDU (in hexadecimal notation) [00][01][00][00][00][07][00][03][04][00][00][05][DC] where: [00][01] = Transaction Identifier [00][00] = Protocol Identifier [00][07] = Length [00] = Unit Identifier [03] = 03 Read Holding Registers function code MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 43 of 104...

  • Page 44: Read Input Registers

    *N = Quantity of registers Exception Response PDU 0084 hex (=0004 hex + Error code 1 byte 0080 hex) Exception code 1 byte 01 or 02 or 03 or 04 MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 44 of 104...
  • Page 45 [04] = 04 Read Input Registers function code [04] = number of bytes (2 bytes for each register) [00][00] = value of register 1, 00 00 hex = 0 dec MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 45 of 104...

  • Page 46: Write Single Register

    0000 hex to FFFF hex Exception Response PDU 0086 hex (=0006 hex + Error code 1 byte 0080 hex) Exception code 1 byte 01 or 02 or 03 or 04 MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 46 of 104...
  • Page 47 [00][06] = Length [00] = Unit Identifier [06] = 06 Write Single Register function code [00][51] = address of the Watchdog timeout [82] register, 51 hex = 81 dec MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 47 of 104...

  • Page 48: Write Multiple Registers

    1 to 123 (007B hex) Exception Response PDU 0090 hex (= 0010 hex + Error code 1 byte 0080 hex) Exception code 1 byte 01 or 02 or 03 or 04 MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 48 of 104...
  • Page 49 Total Resolution [103-104] the value 8388608 dec next to the registers (address 102-103) is as follows: MBAP Header + Request PDU (in hexadecimal notation) [00][01][00][00][00][0F][00][10][00][64][00][04][08][00][00][08][00][00][80][00] [00] where: [00][01] = Transaction Identifier MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 49 of 104...
  • Page 50 [00] = Unit Identifier [10] = 16 Write Multiple Registers function code [00][64] = starting address (Counts per revolution [101-102] registers, address 100-101) [00][04] = number of written registers MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 50 of 104...
  • Page 51 [00][0B] = Length [00] = Unit Identifier [10] = 16 Write Multiple Registers function code (Operating parameters [109-110] [00][6C] = starting address registers, address 108-109) [00][02] = number of requested registers MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 51 of 104...
  • Page 52 Watchdog function is enabled, if the device does not receive a message from the Server within the set time, the system forces the encoder to exit the EXCEPTION network participation and shift to the state. MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 52 of 104...

  • Page 53: Encoder States

    MODBUS network. PROCESS_ACTIVE encoder shifts WAIT_PROCESS state if no requests are received within the preset time. EXCEPTION A Watchdog timeout has occurred, any MODBUS requests will be ignored. MAN XAC77 MT E 1.1.odt MODBUS® TCP/IP interface 53 of 104...

  • Page 54: Programming Parameters

    Use the Save parameters function available in Control Word [111-112] registers, see on page 63. Should the power supply be turned off all data that has not been saved previously will be lost! MAN XAC77 MT E 1.1.odt Programming parameters 54 of 104...

  • Page 55: Watchdog Timeout [82]

    96-97 and accessible by using the 03 Read Holding Registers function code. For any information refer to page 71. MAN XAC77 MT E 1.1.odt Programming parameters 55 of 104...

  • Page 56: Status Word [99-100]

    65536 (min. = 1, max. = 65536) for XAC7716/16384 multiturn WARNING To avoid counting errors please always make sure that the following condition is met: Total Resolution [103-104] a power of 2. Counts per revolution [101-102] MAN XAC77 MT E 1.1.odt Programming parameters 56 of 104...

  • Page 57: Total Resolution [103-104]

    “=1”; otherwise they are ignored and Singleturn resolution [113-114] the system uses the physical values (see the Number of revolutions [115-116] registers) to calculate the position information. MAN XAC77 MT E 1.1.odt Programming parameters 57 of 104...
  • Page 58 If you have set the preset, every time you change the value next to the Resolution [103-104] Preset registers, then you must check the value in the value [105-106] registers; if necessary you are required to set a new preset MAN XAC77 MT E 1.1.odt Programming parameters 58 of 104...

  • Page 59: Preset Value [105-106]

    The preset value will be set for the MAN XAC77 MT E 1.1.odt Programming parameters 59 of 104...
  • Page 60 And so on. NOTE If the Scaling function is disabled (the bit 0 in the Operating parameters  [109-110] registers = 0), then the Preset value [105-106] must be less MAN XAC77 MT E 1.1.odt Programming parameters 60 of 104...

  • Page 61: Speed Format [107-108]

    Number of revolutions [115-116] registers); if this function is enabled (the bit 0 Scaling function = 1), the device uses the custom resolution set Counts per revolution [101-102] Total next to the MAN XAC77 MT E 1.1.odt Programming parameters 61 of 104...

  • Page 62: Code Sequence

    1 Code sequence of the Status word [5-6] input registers, see on page 72. bits 2 … 7 Not used. Bytes 1 ... 3 Not used. MAN XAC77 MT E 1.1.odt Programming parameters 62 of 104...

  • Page 63: Control Word

    This function allows the operator to restore all parameters to default values (default values are set at the factory by Lika Electronic engineers to allow the operator to run the device for standard operation in a safe mode). This function...

  • Page 64: Perform Counting Preset

    XAC77 • MODBUS TCP/IP must be switched back to logic level low (“0”) to make the function available again. The complete list of machine data and relevant default parameters preset by Lika Electronic engineers is available on page 102. WARNING...

  • Page 65: Singleturn Resolution [113-114]

    Counts per revolution If you want to set a custom number of turns see the [101-102] Total Resolution [103-104] registers. Default = 1 for XAC7718/1 singleturn 16384 for XAC7716/16384 multiturn MAN XAC77 MT E 1.1.odt Programming parameters 65 of 104...

  • Page 66: Supported Alarms [117-118]

    Supported warnings [119-120] [118-119, Unsigned16, ro] These registers contain the information on the warnings supported by the encoder. No warnings are supported in this encoder. Default = 0 MAN XAC77 MT E 1.1.odt Programming parameters 66 of 104...

  • Page 67: Alarm Registers [121-122]

    Please note that should the alarm be caused by wrong parameter values (see Machine data not valid Wrong parameters list [125-126] registers), normal work status can be restored only after having set proper values. The Flash memory error alarm cannot be reset. MAN XAC77 MT E 1.1.odt Programming parameters 67 of 104...

  • Page 68: Warnings Register [123-124]

    Offset value error Offset value [127- bit 3 Wrong data has been saved on the 128] registers. Save proper values to restore the normal work condition. bits 4 … 7 Not used. MAN XAC77 MT E 1.1.odt Programming parameters 68 of 104...

  • Page 69: Offset Value [127-128]

    These registers are meant to show the hardware version of the PCB (Printed Circuit Board). The meaning of the 32 bits in the registers is as follows: MS Word LS Word Word … … Major version Minor version MAN XAC77 MT E 1.1.odt Programming parameters 69 of 104...
  • Page 70 For example, the value 0001 0001 hex in hexadecimal notation corresponds to the binary representation 0000 0000 0000 0001 0000 0000 0000 0001 and has to be interpreted as: hardware version 1.1. MAN XAC77 MT E 1.1.odt Programming parameters 70 of 104...

  • Page 71: Input Register Parameters

    Byte 1 are used to signal if any alarm is active. Bytes 2 and 3 are not used. Status word [5-6] Structure of the registers: Word MS Word LS Word … … MAN XAC77 MT E 1.1.odt Programming parameters 71 of 104...

  • Page 72: Scaling Function

    Byte 1 Alarm bit 8 If the value is “=1” an alarm has occurred, see details Alarm registers [121-122] in the variable on page bits 9 … 15 Not used. MAN XAC77 MT E 1.1.odt Programming parameters 72 of 104...
  • Page 73 98-99 and accessible by using the 03 Read Holding Registers function code. For any information refer to page 56. MAN XAC77 MT E 1.1.odt Programming parameters 73 of 104...

  • Page 74: Exception Response And Codes

    Server returns an exception code in the data field. This defines the Server condition that caused the exception. NOTE Please note that here follows the list the exception codes indicated by MODBUS but not necessarily supported by the manufacturer. MAN XAC77 MT E 1.1.odt Programming parameters 74 of 104...
  • Page 75 The client can next issue a Poll Program Complete message to determine if processing is completed. SERVER DEVICE BUSY Specialized conjunction with programming commands. The server is engaged MAN XAC77 MT E 1.1.odt Programming parameters 75 of 104...
  • Page 76 For any information on the available exception codes and their meaning refer to the “MODBUS Exception Responses” section on page 47 of the “MODBUS Application Protocol Specification V1.1b3” document. MAN XAC77 MT E 1.1.odt Programming parameters 76 of 104...

  • Page 77: Integrated Web Server

    10 Integrated web server 10.1 Integrated web server – Preliminary information MODBUS TCP/IP encoders from Lika Electronic integrate a web server. This web- based user interface is designed to offer helpful functions and deliver complete information on the device that can be accessed through the Internet.

  • Page 78: Web Server Home Page

    1. type the IP address of the encoder you want to connect to (in the example: 192.168.1.10, this is the default IP address set at Lika, see on page 35) in the address bar of your web browser and confirm by pressing ENTER;...

  • Page 79: Encoder Position And Speed

    XAC77 • MODBUS TCP/IP Some commands are available in the menu bar of the Home page. Press on the Lika logo to enter Lika's web site (www.lika.biz). Press the Documentation command to enter the MODBUS TCP/IP encoder technical documentation page...

  • Page 80: Specific Notes On Using Internet Explorer

    • History Browsing section; under Check for newer versions of stored pages, click Every time I • visit the webpage; press the OK button to confirm whenever requested. • MAN XAC77 MT E 1.1.odt Integrated web server 80 of 104...

  • Page 81: Encoder Information (Modbus Registers)

    Please note that the values shown in the Encoder Information page are “frozen” in the moment when the page is displayed. To update the values you must refresh the web page. MAN XAC77 MT E 1.1.odt Integrated web server 81 of 104...

  • Page 82: Setting The Preset Value

    Press the OK button to proceed, otherwise press the EXIT button to exit the procedure. The Set Preset cancelled! message will appear on the screen. Press the OK button to move back to the Web server Home page. MAN XAC77 MT E 1.1.odt Integrated web server 82 of 104...
  • Page 83 To change the Preset enter a suitable value in the WRITE box and then press the Set Preset Value button to confirm. The value has to be set in decimal notation. MAN XAC77 MT E 1.1.odt Integrated web server 83 of 104...

  • Page 84: Setting The Registers

    Registers Values?) appears on the screen: it warns the operator about the awkwardness of the operation, thus he is required to confirm the procedure before continuing. MAN XAC77 MT E 1.1.odt Integrated web server 84 of 104...
  • Page 85 The Set Registers cancelled! message will appear on the screen. Press the OK button to move back to the Web server Home page. Figure 11 - Register setting operation aborted MAN XAC77 MT E 1.1.odt Integrated web server 85 of 104...
  • Page 86 Flash EEProm will be lost! For more information refer to the Save parameters command in the Control Word [111-112] registers on page 63. MAN XAC77 MT E 1.1.odt Integrated web server 86 of 104...
  • Page 87 Press the Load Default Param. button to restore all parameters to default values. Default values are set at the factory by Lika Electronic engineers to allow the operator to run the device for standard operation in a safe mode. This function can be useful, for instance, to restore the factory values in case the encoder is set incorrectly and you are not able to resume the proper operation.

  • Page 88: Firmware Upgrade

    The firmware upgrading program consists of a single file having .BIN extension. It is released by Lika Electronic Technical Assistance & After Sale Service. If the latest firmware version is already installed in the unit, you do not need to proceed with any new firmware installation.
  • Page 89 Figure 13 - Entering the Upgrade Firmware page MAN XAC77 MT E 1.1.odt Integrated web server 89 of 104...
  • Page 90 5. In the Password text box type the password LIKA (all uppercase letters) and then press the Send Request button. Figure 15 - Firmware Upgrade page MAN XAC77 MT E 1.1.odt...
  • Page 91 OPEN command the OPEN dialog box appears on the screen: open the folder where the firmware upgrading .BIN file released by Lika Electronic is located, select the file and confirm. Hx in the file name shows the hardware version of the PCB; Sx shows the software version of the firmware upgrading file.
  • Page 92 Never turn the power supply off during the flash upgrade operation. 14. Press the Send File button to start the firmware upgrade process. MAN XAC77 MT E 1.1.odt Integrated web server 92 of 104...
  • Page 93 Figure 18 - Updating the firmware 16. As soon as the operation is carried out successfully, the FILE SENT CORRECTLY message appears on the screen. Figure 19 - Firmware upgrade process accomplished MAN XAC77 MT E 1.1.odt Integrated web server 93 of 104...

  • Page 94: Network Configuration

    (Are you sure you want to change Network Parameters?) appears on the screen: it warns the operator about the awkwardness of the operation, thus he is required to confirm the procedure before continuing. MAN XAC77 MT E 1.1.odt Integrated web server 94 of 104...
  • Page 95 Figure 20 - Entering the Network Configuration page Press the OK button to proceed: the Network Configuration page will appear on the screen. Figure 21 - Network Configuration page MAN XAC77 MT E 1.1.odt Integrated web server 95 of 104...
  • Page 96 Please check that these settings are allowed by the DHCP server and they are valid address values. Press the Homepage command to move back to the Web server Home page. MAN XAC77 MT E 1.1.odt Integrated web server 96 of 104...

  • Page 97: Programming Examples

    (address 104-105) contain the value 00 00 hex and 05 DC hex, i.e. 1500 in decimal notation; in other words the value Preset value [105-106] set in the registers is 1500 dec. MAN XAC77 MT E 1.1.odt Programming examples 97 of 104...

  • Page 98: Using The 04 Read Input Registers Function Code

    [2F][F0] = value of register 2, 2F F0 hex = 12272 dec Current position [1-2] registers (address 0-1) contain the value 00 00 2F F0 hex, i.e. 12272 in decimal notation. MAN XAC77 MT E 1.1.odt Programming examples 98 of 104...

  • Page 99: Using The 06 Write Single Register Function Code

    Watchdog timeout [82] The value 00 0A hex (10 dec) is set is set in the register (address 81): the Watchdog function is enabled and the timeout is set to 10 ms. MAN XAC77 MT E 1.1.odt Programming examples 99 of 104...

  • Page 100: Using The 16 Write Multiple Registers Function Code

    100-101; while the values 00 80 hex and 00 00 hex, i.e. 8388608 in decimal notation, are set in the Total Resolution [103-104] registers at address 102-103. Thus the encoder MAN XAC77 MT E 1.1.odt Programming examples 100 of 104...
  • Page 101 (address 108-109): the bit 0 Scaling function = 1; the bit 1 Code sequence = 0; the remaining bits are not used, therefore their value is 0. MAN XAC77 MT E 1.1.odt Programming examples 101 of 104...

  • Page 102: Default Parameters List

    1 Code sequence = 0 262144 for XAC7718/1 Singleturn resolution [113-114] 65536 for XAC7716/16384 for XAC7718/1 Number of revolutions [115-116] 16384 for XAC7716/16384 Supported alarms [117-118] 0000 7000 hex Supported warnings [119-120] MAN XAC77 MT E 1.1.odt Default parameters list 102 of 104...
  • Page 103 This page intentionally left blank...
  • Page 104 Document release Release date Description Interface 10.09.2020 First issue 04.06.2021 Safety instructions updated Lika Electronic Via S. Lorenzo, 25 • 36010 Carrè (VI) • Italy Tel. +39 0445 806600 Fax +39 0445 806699 info@lika.biz • www.lika.biz...
