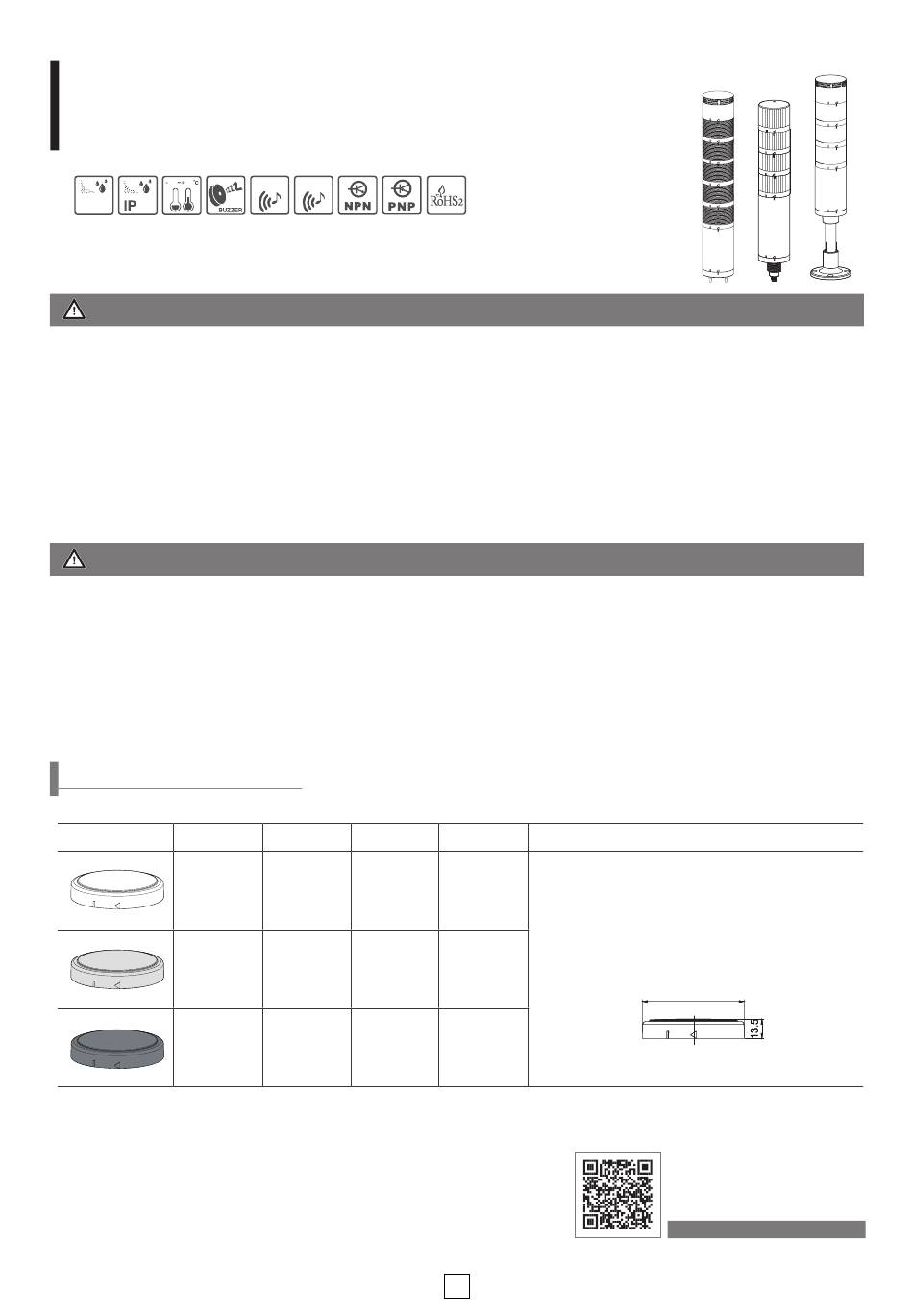

Modular LED signal tower light with built-in terminal
MTG70/ MTC70/ MTR70 Series
30
50
NON
65
WATERPROOF
Thank you for purchasing Qlight's products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, fire, and electric shock.
Ordering Specifications
Cover
Shape
Parts Name
MTG70 cover
MTG70 cover
MTG70 cover
85dB 100dB
Model No
Color
MG70-CV
Ivory
MG70-CV-SV
Silver
MG70-CV-BK
Black
Weight
0.01kg
Material: ABS
Protection ratings with
assemble: IP65
Product size: Ø70 X 14
0.01kg
0.01kg
1
(Units : mm)
Common Specifications
Ø70
Ø70
Please scan the QR code for more
detailed product information.
www.qlight.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTG70 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Qlightec MTG70 Series

  • Page 1 Modular LED signal tower light with built-in terminal MTG70/ MTC70/ MTR70 Series 85dB 100dB WATERPROOF Thank you for purchasing Qlight’s products. Please read this user manual carefully prior to installation and operation to ensure safe and correct use. Precautions for Safety Failure to follow the instructions below may cause a loss of life or serious physical injury.
  • Page 2: Ordering Specifications

    Ordering Specifications Ø70 Ø70 • Buzzer module (Units : mm) Specification Shape Parts Name Model No Color Volume(dB) Weight Common Specifications Voltage Current Ø70 Ø70 MTG70- Standard buzzer MG70-BZ-24 Ivory DC24V 90mA Max.90dB 0.07kg module MTG70-High- volume buzzer MG70-HBZ-24 Ivory DC24V 90mA Max.100dB...
  • Page 3 Ordering Specifications • Cover integrated Lens option is available (Units : mm) Shape Specification Model No Color Weight Common Specifications Voltage Current • Material: PC • Protection ratings with assemble: IP65 • Product size: Ø70 X 62 Ø70 Ø70 Ø70 Ø70 MGA70-R-24 Ø70...
  • Page 4 Ordering Specifications • Base module(Pole mount type) (Units : mm) Specification Shape Parts Name Model No Color Weight Common Specifications Voltage Current • Material: ABS • Protection ratings with MTG70-Pole type MG70-BS-DC Ivory DC24V 400mA 0.17kg assemble: IP65 base module-DC •...
  • Page 5 Ordering Specifications • Base module(Self stand type) (Units : mm) Specification Shape Parts Name Model No Color Weight Common Specifications Voltage Current • Material: ABS • Protection ratings with MTG70-Self stand MG70-MBS-DC Ivory DC24V 400mA 0.17kg assemble: IP65 base module-DC •...
  • Page 6 Ordering Specifications • Base module(M12 CONNECTOR type ) (Units : mm) Specification Shape Parts Name Model No Color Weight Common Specifications Voltage Current • Material: ABS MTG70-M12 • Protection ratings with CONNECTOR type MG70-BS-DC-M12 Ivory DC24V 400mA 0.19kg assemble: IP65 base module-DC •...
  • Page 7 How to configure module Assembly step • • Model No/ Shape Assembly Step 1 •Choose from cover, buzzer module, and cover lens integrated module •Please refer to detailed module specification in order to find out model number MG70-BZ/MG70-HBZ/MG70-WBZ MG70-CV MGA70-R/MCA70-R/MRA70-R Assembly Step 2 •Select among MTG, MTC, LED module...
  • Page 8: Wiring Instructions

    Wiring Instructions ■ Wiring using external contact • In case of wiring with external contacts, refer to the wiring diagrams below according to your product’s type and voltage setting. • In case of buzzer NOT applied Wiring diagrams Wiring diagrams DC Steady/ AC Steady/ Flashing...
  • Page 9 Wiring Instructions ■ Wiring using transistor • When using a transistor, please choose between the NPN or PNP type transistor which best matches the voltage and product type, then connect them correctly according to the wiring diagrams below. • In case of buzzer NOT applied Wiring diagrams Wiring diagrams DC Steady/...
  • Page 10: Pin Description

    Wiring Instructions ■ Wiring diagrams(In case of M12 connector type model) • M12 connector module can be supplied DC type only. (It same goes for External contact/Transistor contact) • Please wire the product by referring below PIN-MAP. Wiring diagrams Wiring diagrams (PIN-MAP) DC Steady/ Flashing...
  • Page 11 Example of MTG70 module configuration • You can assemble the product through module combination by referring to the diagram below. • When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only 4 LED modules can be assembled (W color module cannot be assembled). MTG70ML-HBZ-24-4-RAGB MTG70L-WBZ-110/220-3-RAG-SZ24-SV MTG70L-24-3-RAG-M12-SV...
  • Page 12 Example of MTG70 module configuration • You can assemble the product through module combination by referring to the diagram below. • When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only 4 LED modules can be assembled (W color module cannot be assembled). MTC70ML-24-5-RAGBW MTC70L-110/220-3-RAG-LB24-SV MTCA70L-24-4-RAGB-M12-SV...
  • Page 13 Example of MTG70 module configuration • You can assemble the product through module combination by referring to the diagram below. • When a buzzer module (high volume buzzer module/waterproof buzzer module) is combined, only 4 LED modules can be assembled (W color module cannot be assembled). MTR70ML-24-3-RAG-BK MTR70L-HBZ-24-3-RAG-QZ24-BK MTRA70L-24-4-RAGB-M12-BK...
  • Page 14: Mounting Hole Specifications

    How to Change Lens Kit ※Cautions • Disassembling lens kits Lens modules are connected through ① cone-shaped contact point. In case Twist the upper lens kit in a the contact point is damaged, it may counter-wise direction so the cause a contact failure. “I”...
  • Page 15 360°/3-Ø5 HOLES PCD30~40 360°/6-Ø5 HOLES Mounting Accessories (Sold Separately) 4-Ø4.5 HOLES Ø12 CABLE ENTRY 4-Ø4.5 HOLES • Please refer to the dimensions below for installation of mounting brackets. ■ MTG70 Self stand base module DC/ module AC Dimensions PCD40~50 Ø12 MTG70 360°/3-Ø5 HOLES PCD40~50...
  • Page 16 Mounting Accessories (Sold Separately) ■ MTG70-Pole mount type module DC/ module AC Dimensions MTG70 MTC70 MTR70 Ø24 Ø24 M24x1.5 THREAD 2-Ø8.5 HOLES 24mm SCREW & NUT LB24 Ø24 4-Ø5 HOLES Ø24 Ø35 4-Ø5 HOLES 12x22 CABLE ENTRY 1/2" PF Ø90 69.5 LW24 SZ24...
  • Page 17 Product installation direction ■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product. ㆍBEACON/SIGNALING LIGHT ※ For products with a protection rating of less than IPX4, please install it vertically. Power cord inlet part shall not be facing the sky. ㆍ...
  • Page 18 MEMO...
  • Page 19 MEMO...
  • Page 20 Specification and dimensions listed in this catalogue subject to change without notice for product quality improvement. For your safety The newest product information is available on our website.(www.qlight.com) Please read the instruction manual attached to the product carefully before installation and use. Qlight Co., Ltd.
