Output P.c.b. Assy - C.E.C. CH3000 Service Manual

Ref.
No.
A C501
SHO1
ASW501
AFI
F2
wi
w2
W3
PC3
ZA003
SHO3
C304
PC3
ZA003
C304
C306
R301
SHO05
ZA004
0401
SHO04
Ww06
HDW06
Part No.
42239709700
1EA4J11A01104
1£A4S11A01200
F31SR63C2SCTX
1EA4J20A00101
4J130X1111
4J130X1112
4J130X1113
OB100X6830
1£A4B10A47300
42352017520
1EA4J11A03903
CK1H102ZAFFLC
O8100X6832
1EA4B10A47300
42352017520
4U230X0200
1£A4U23A00200
CK1H1D2ZAFFLC
CHIH1O04JAAALC
ROD8202JPAANA
1EA4J11A01104
OB100X6840
1EA4B10A47400
DCTLP806----N
1£A4J11A03903
OB100X6850
1EA4B10A47500
TEA4W30A1 4700
40610X1010
1£A4J11A03903

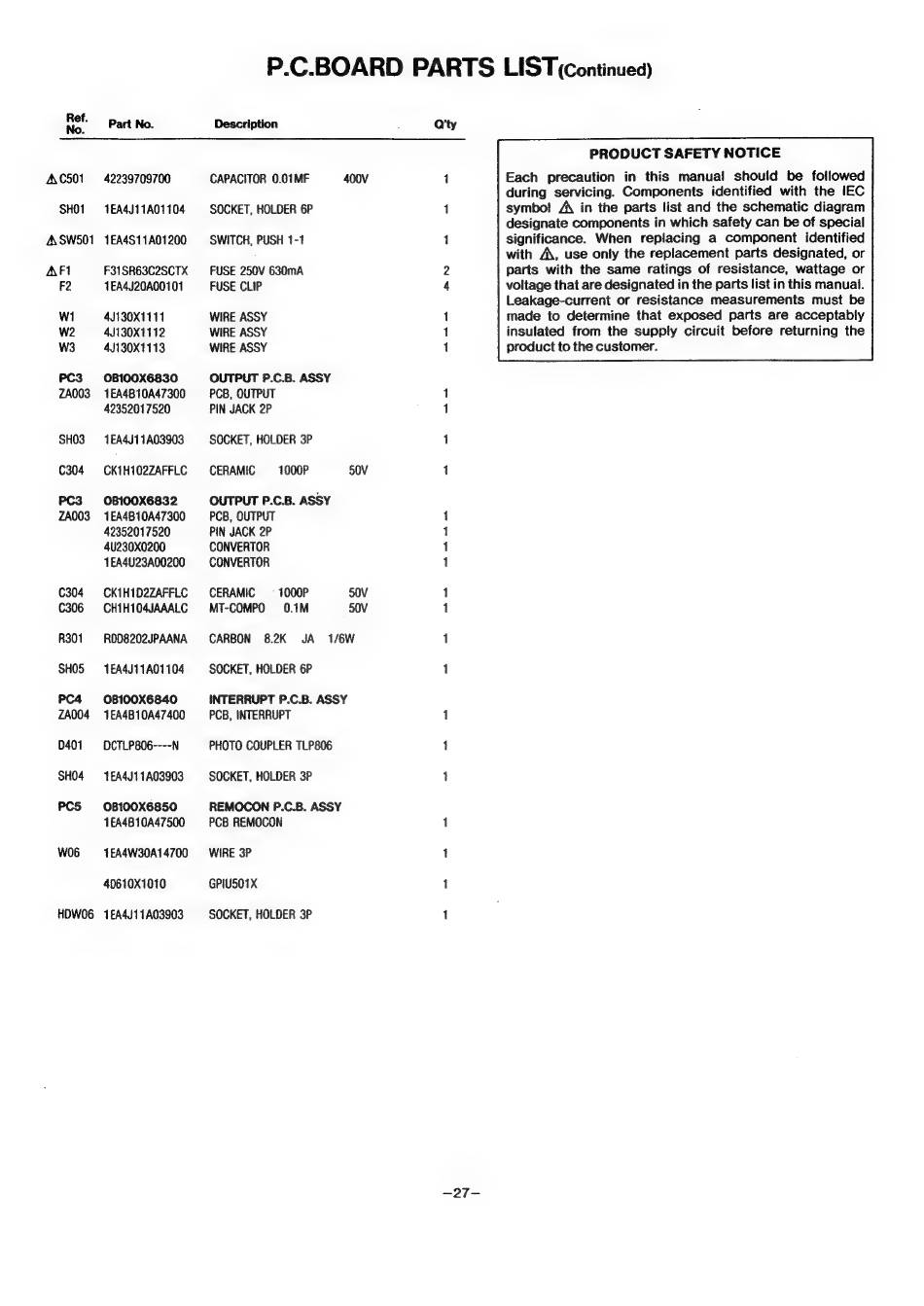

P.C.BOARD PARTS LIST (continued)
Description
CAPACITOR 0.01MF 400V
SOCKET, HOLDER 6P
SWITCH, PUSH 1-1
FUSE 250V 630mA
FUSE CLIP
WIRE ASSY
WIRE ASSY
WIRE ASSY
OUTPUT P.C.B. ASSY
PCB, OUTPUT
PIN JACK 2P
SOCKET, HOLDER 3P
CERAMIC —_1000P 50V
OUTPUT P.C.B. ASSY
PCB, OUTPUT
PIN JACK 2P
CONVERTOR
CONVERTOR
CERAMIC = 1000P SOV
MT-COMPO = =0.1M 50V
CARBON 8.2K JA 1/6W
SOCKET, HOLDER 6P
INTERRUPT P.C.B. ASSY
PCB, INTERRUPT
PHOTO COUPLER TLP806
SOCKET, HOLDER 3P
REMOCON P.C.B. ASSY
PCB REMOCON
WIRE 3P
GPIUSO1X
SOCKET, HOLDER 3P
Q'ty
tk et
_
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed
during servicing. Components identified with the IEC
symbo! /\ in the parts list and the schematic diagram
designate components in which safety can be of special
significance. When replacing a component identified
with A\, use only the replacement parts designated, or
parts with the same ratings of resistance, wattage or
voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be
made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the
product to the customer.
