MICROWAVE OVEN HOOD COMBINATION QUICK START GUIDE WMMS3330
OPERATING INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.
Using Your Microwave Oven to Cook
Step 1 .
Open the door.
Step 2.
Place food inside the microwave oven.
Step 3.
Press keypad once or repeatedly to select your favorite
recipe. The recipe will show on the display.
Step 4.
Use number keypad to input food weight/amounts.
Step 5.
Close the door.
Step 6.
Press Start to start the cooking.
Step 7.
During cooking, press the Stop/Clear keypad once to
pause cooking time. Press the Stop/Clear keypad twice to cancel
cooking time.
Setting Custom Cook Time and Power
Level:
1. Press Cook Time / Power.
2. Use the number buttons to enter a custom cook time.
3. Press Cook Time / Power again.
4. Enter power level.
5. Press Start to begin cycle.
Using Hood Light
Press the Light button to adjust the hood light setting among HIGH → MED → LOW → OFF.
Using Hood Fan
Press the Fan button to adjust the vent fan setting among HIGH → MED → LOW → OFF.
NOTE: For more detailed instructions on specific functions, see the online Control Guide.
ALUMINUM FOIL AND METAL
Always use oven mitts or pot holders when removing dishes from the microwave oven.
Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue
flash of light) can occur and cause damage to the microwave oven.
OK for Use
� Browning dish (Follow manufacturer recommendations.)
� Ceramic glass, glass.
� China, earthenware (Follow manufacturer recommendations.)
� Melamine (Follow manufacturer recommendations.)
� Paper towels, paper plates, napkins (Use non-recycled paper.)
� Plastic wraps, bags, covers, dinnerware, containers (Follow manufacturer recommendations.)
� Pottery and clay (Follow manufacturer recommendations.)
� Silicone bakeware (Follow manufacturer recommendations.)
� Wax paper
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-approved meat thermometers, skewers, twist
ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze
should not be used in the microwave oven.
OVEN VENT(S)
The top vent releases hot air and moisture from the oven, and
should not be blocked or covered. Do not set plastics, paper
or other items that could melt or burn near the oven vent. Also
the bottom vent should not be blocked or covered since it
allows the inlet of fresh air into the cooling system and the
outlet of hot air from the cooling system. Blocking or covering
vents will cause poor air circulation, affecting cooking,
cleaning, and cooling results.
CLEAN GREASE FILTER:
The grease filter is on the bottom plate of the microwave oven. Clean
monthly.
To clean the grease filter:
1. Disconnect power.
2. Remove the grease filter by sliding it out of the bottom plate.
3. Clean the grease filter with a mild cleanser and scouring pad, or
clean it with dishwasher.
4. After cleaning, dry it up, reattach the grease filter back to the bottom
plate.
REPLACING GREASE FILTER:
If the grease has been damaged, replace it with a new one.
To replace an old or damaged grease filter:
1. Disconnect power.
2. Remove the old or damaged grease filter by sliding it out of the
bottom plate.
3. Install a new grease filter into the bottom plate.
W11709976A

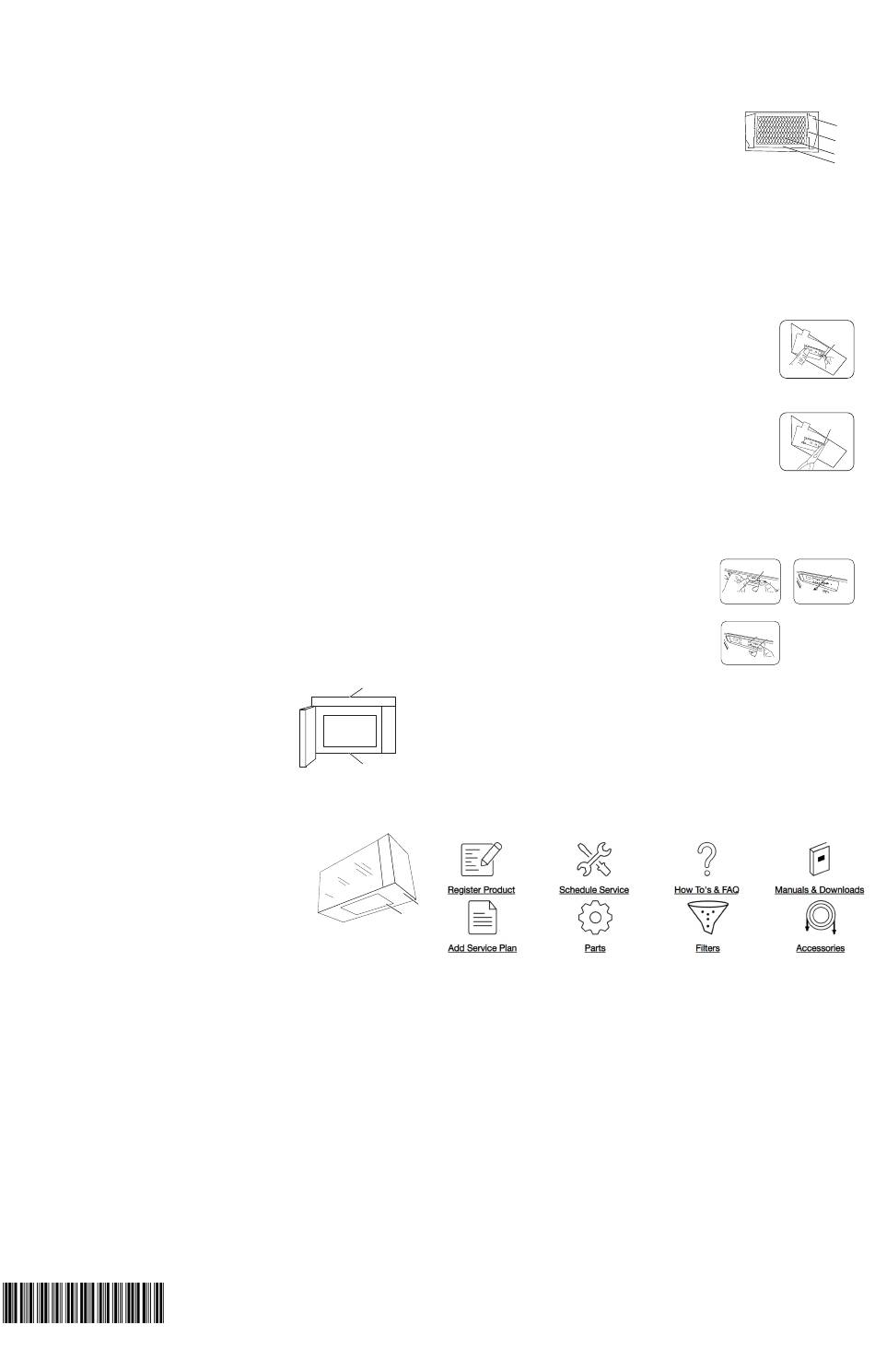

Demo mode
To activate demo mode:
1. In Idle state, press Settings
button repeatedly, until
Demo Mode submenu.
2. Press number "1".
3. Press Settings button again
to activate demo mode.
To deactivate demo mode:
Repeat above steps to
deactivate.
Using Express Start
Buttons:
Use the +30 sec and 1, 2 and
3 min express start buttons to
quickly start a cycle or add time
mid cycle.
A
B
Combination Microwave Oven
A. Top Vent
B. Bottom Vent
A
B
A. Bottom plate
B. Grease filter
REPLACING CHARCOAL FILTER:
The charcoal filter is behind the vent grille at the top front of the microwave oven. It cannot be cleaned
and should be replaced every 6 months.
To replace the charcoal filter:
1. Disconnect power. Open the door.
2. Remove 2 screws attached to the vent grille, slide the vent
grille to the left, tilt it forward, lift it out, and set the vent grille
aside.
3. Pushing the right holding plate to the right, release the old
charcoal filter from the two hooks, and lift it out.
4. Insert the new charcoal filter into the unit, make sure the mesh
side is facing out.
5. Return the vent grille to the unit by inserting the 3 bottom latch
hooks of the vent grille into the front holes, tilt the vent grille
backwards, slide it to the right. Secure the vent grille with the
screw.
REPLACING CAVITY LIGHT:
The cavity LED light is located behind the vent grille at the top front of the microwave oven, under the
light cover, and is replaceable. Before replacing the LED light, make sure the LED light is cool.
To replace the cavity LED light:
1. Disconnect power. Open the door.
2. Remove 2 screws attached to the vent grille, slide the vent grille to the
left, tilt it forward, lift it out, and set the vent grille aside.
3. Open the light cover. Unplug the LED terminal.
4. Use a tool to release the right side hooks which are fixing the LED light.
Then slide the LED toward right and take it out.
5. Replace with a new LED light board, slide it toward left and use a tool to
fix it with the hooks.
6. Return the vent grille to the unit by inserting the 3 bottom latch hooks of
the vent grille into the front holes, tilt the vent grille backwards, slide it to
the right. Secure the vent grille with the screw.
REPLACING COOKTOP LIGHT:
The cooktop light is located on the bottom plate of the microwave oven and is replaceable.
To replace the cooktop LED light:
1. Disconnect power.
2. Loosen the screws on the bottom light cover with a
screwdriver.
3. Take out the cover and the screws, and set them aside.
4. Hold the wire with your hand, pull it to the right, and loosen
the wire from the LED board.
5. Use a screwdriver to push up the metal holding lock,
which is on the upper right corner, to release the LED light
board.
6. Slide the LED light board toward right side, then take it
out.
7. Replace with a new LED light board, slide it into the
holding locks.
8. Reinstall the light cover back to the bottom plate, secure
with the screws.
NOTE: Order the Charcoal, Grease filter, cavity light or
cooktop light see the "Online ordering information" section.
ONLINE ORDERING INFORMATION
For detailed installation instruction and maintenance information, winter storage, and transportation tips,
please see the Owner's Manual included with your machine.
For information on any of the following items, a full cycle guide, warranty, detailed product dimensions, or
for complete instructions for use and installation, please visit www.whirlpool.com/owners. This may
save you the cost of a service call.
However, if you need to contact us, use the information listed below.
United States:
1–866–698–2538
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022–2692
IMPORTANT: Retain this guide for future use.
A
B
C
D
A. Right holding plate
B. Hook
C. Mesh side
D. Charcoal filter
A
A. LED Terminal
B
B. Hook
A
B
B C
A. LED Terminal
B. Holding Lock
C. LED light board
