ISSUE:
Factory radios on 2014 and newer Harley-Davidson
systems use a "high fidelity" EQ curve. This EQ will cause
excessive distortion with any amplified audio upgrade and
will lead to speaker damage.
SOLUTION:
Authorized Rockford Fosgate Motorcycle Dealers can
"flash" your factory radio to remove this EQ.
WHAT TO DO:
Have your nearest Authorized Rockford Fosgate Motorcycle
Dealer "flash" your radio. Factory Harley-Davidson
can no longer perform this software update. Find a dealer
at www.rockfordfosgate.com/dealerlocator. For more info
contact Rockford Fosgate tech support at 1-800-669-9899.
Harley-Davidson® and Boom!™ are trademarks of Harley-Davidson Motor Company
NOTICE
2014 and Newer Harley-Davidson® Motorcycles
®
®
audio
+34
+32
+30
+28
+26
+24
+22
+20
+18
+16
+14
d
B
+12
r
+10
+8
+6
+4
+2
+0
-2
-4
-6
-8
techs
-10
100
200

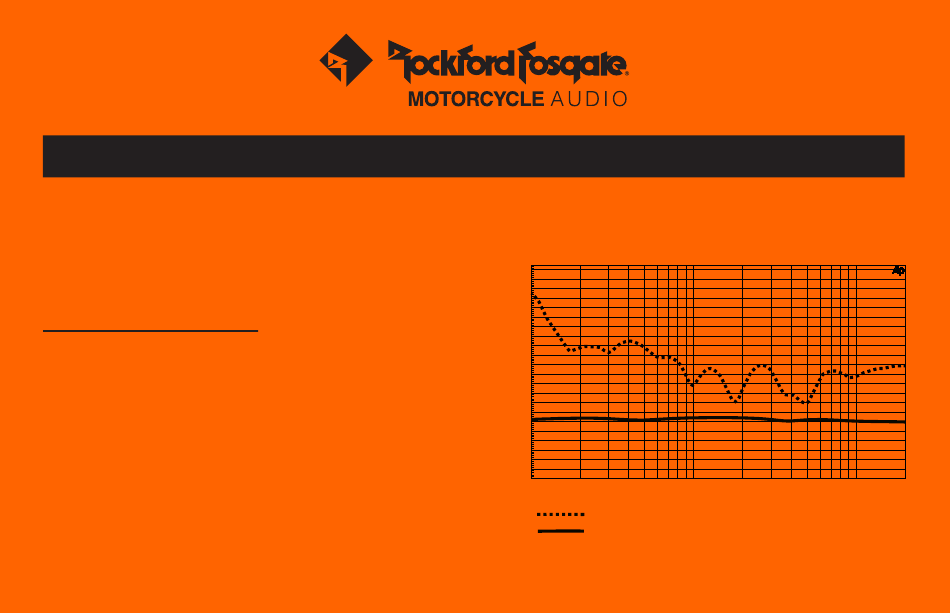

Factory Harley-Davidson® Boom!™ EQ Curve
Flattened EQ with Flash
500
1k
2k
5k
Hz
03-20-2018 1220-70805-01
10k
20k
Advertisement
Table of Contents
Related Manuals for Rockford Fosgate TMS69BL9813
Summary of Contents for Rockford Fosgate TMS69BL9813
- Page 1 SOLUTION: Authorized Rockford Fosgate Motorcycle Dealers can “flash” your factory radio to remove this EQ. WHAT TO DO: Have your nearest Authorized Rockford Fosgate Motorcycle ® Dealer “flash” your radio. Factory Harley-Davidson techs can no longer perform this software update. Find a dealer Factory Harley-Davidson®...
- Page 4 Installation assistance availible at: www.rockfordfosgate.com/rftech 1998-2013 HARLEY-DAVIDSON ® SPEAKERS TMS6RG • TMS6SG TMS5 Serial Number: Date of Purchase: 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 R O C K F O R D F O S G A T E . C O M Installation &...
-
Page 5: Table Of Contents
• Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. ©2016 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. Ultra Classic... -
Page 6: Specifications
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to... - Page 7 Specifications TMS6RG 90° 45° 5.5” Dia. (140mm) 2.5” 2.1” (63mm) (53mm) 5.0” Dia. (128mm)
- Page 8 Specifications TMS6SG 90° 45° 5.5” Dia. (140mm) 2.5” 2.1” (63mm) (53mm) 5.0” Dia. (128mm)
- Page 9 Specifications TMS5 5.4” Dia. 6.4” Dia. (137mm) (162mm) 5.9” (150mm) 2.8” 2.0” 2.5” (72mm) (52mm) (63mm) 4.6” (116mm) illus.-3.1...
-
Page 10: Installation Considerations
Installation Contents Installation Considerations • (1) Pair of 2-Way Speakers with • Installation & Operation Manual This section focuses on some considerations for installing your motorcycle Grilles replacement speakers. This manual will illustrate the installation of two different fairing styles and Tour-Pak offered by Harley-Davidson from ®... - Page 11 Installation Front Speakers for Ultra Classic , Electra Glide ® ® Street Glide and Tri Glide models. ® ® Step 2 - Speaker Removal After the fairing is removed, unplug the wires from both speaker terminals. Remove the screws that secure the factory speaker and Step 1 - Fairing Removal grille to the fairing.
- Page 12 Installation NOTE: There are two screw lengths included in the hardware pack. For this fairing application, use the longer screws on the top two mounting holes of the speaker. After the screws are removed, use your socket or ratcheting wrench to unbolt the turn signal brackets.
- Page 13 Installation Rear Speakers for Tour-Pak models. Step 3 - Speaker Installation Insert the new Rockford speaker and grille assembly onto the Step 1 - Rear Speaker Removal speaker opening on the backside of the fairing. Use the included Unscrew the speaker grilles from the rear pods and remove factory screws to securely mount the speakers speaker.
- Page 14 Installation Insert the new Rockford speaker into the speaker pod. Place the grille over the speaker and attach with the included screws to mount to the pod.
-
Page 15: Français
Français Considérations d’installation Étape 2 - Dépose des haut-parleurs Cette section se concentre sur certaines considérations pour installer les haut-parleurs de Une fois le carénage déposé, débrancher les fils des deux bornes de haut-parleurs. Retirer remplacement sur la moto. Ce manuel illustrera l’installation de deux différents styles de les vis qui maintiennent le haut-parleur d’usine du carénage. -
Page 16: Español
Español Consideraciones para la instalación Paso 2 - Extracción del altavoz Esta sección se enfoca en algunas consideraciones para la instalación de sus altavoces de Después de haber extraído el carenado, desenchufe los cables de los terminales de ambos reemplazo para la motocicleta. Este manual ilustra la instalación de dos estilos de carenado altavoces. -
Page 17: Deutsch
Deutsch Informationen zum Einbau Schritt 2 - Entfernen der Lautsprecher Dieser Abschnitt beschreibt einige Punkte, die beim Einbau der Ersatzlautsprecher für Nach dem Abnehmen der Verkleidung die Kabel aus beiden Lautsprecheranschlüssen das Motorrad zu berücksichtigen sind. Dieses Handbuch erklärt den Einbau von zwei herausziehen. -
Page 18: Italiano
Italiano Considerazioni sull’installazione 2o passo - Rimozione degli altoparlanti Questa sezione spiega alcune considerazioni relative all’installazione di nuovi altoparlanti Dopo aver rimosso la carenatura, staccare i cavi dai due terminali degli altoparlanti. per la moto. Questo manuale illustra l’installazione di due stili di carenatura diversi e Tour- Rimuovere le viti che fissano gli altoparlanti di fabbrica alla carenatura. -
Page 19: Warranty
What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by Rockford Corporation. - Page 20 Installation assistance available at 1998 - 2013 H-D SADDLEBAG LID SPEAKER KIT www.rockfordfosgate.com/r ech TMS69BL9813 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 Installation & Operation R O C K F O R D F O S G A T E . C O M...
- Page 21 Warranty ©2017 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
- Page 22 To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers.
- Page 23 Specifications TMS69 9.2” (234mm) 6.5” (165mm) 6.4” (163mm) 4.7” (120mm) 3.2” 3.2” (81mm) (81mm) 2.8” 2.8” (70mm) (70mm) 8.6” 5.6” (218mm) (147mm)
- Page 24 Installation Applicable Models: Contents • (2) TMS69 Speakers • (1) Main Harness 1998 to 2013 Harley-Davidson® Motorcycles with Factory • (2) Speaker Grilles • (2) Saddlebag Harnesses Saddlebags This saddlebag lid speaker kit is designed to work with Rockford • (2) Mounting Rings •...
- Page 25 Installation Speaker Grille Saddlebag NOTE: It is easiest to place the grill into the hole that has been cut into the lid and place upside down on a bench. Then place the appropriate mounting ring onto the grille, along with the speaker. Secure with the Mounting supplied screws.
- Page 27 What is Covered This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford Fosgate dealers in the United States of America. Products purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by Rockford Corporation.
