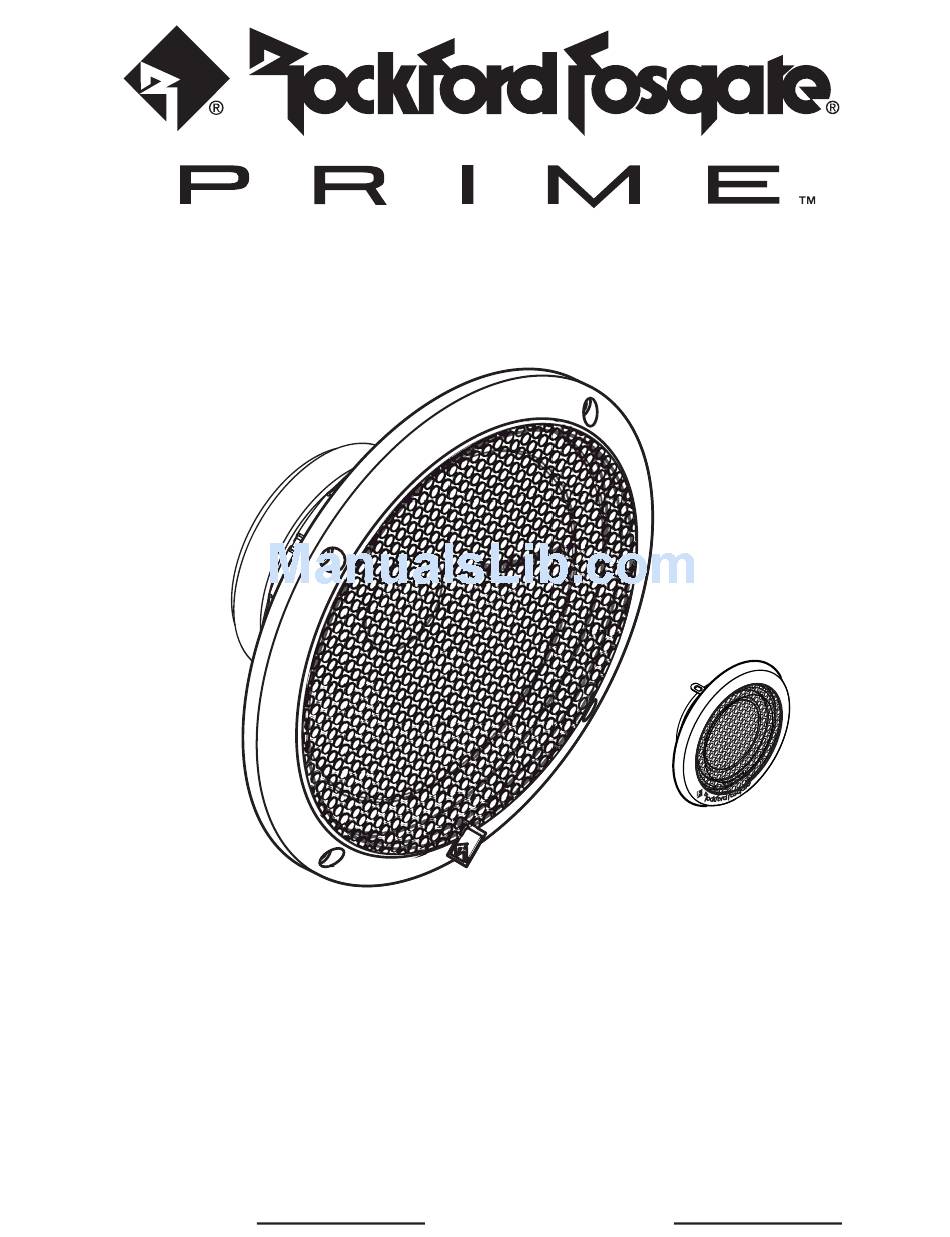

- Page 1 Component Systems 5.25” – R152-S 6.5” – R1652-S 1” Tweeter System – R1T-S Installation & Operation Installation et fonctionnement Instalación y funcionamiento Einbau und Betrieb Installazione e funzionamento Serial Number: Date of Purchase:...
-
Page 2: Practice Safe Sound
AFETY CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. PRACTICE SAFE SOUND™ Cutout Hole Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. -
Page 3: Specifications
PECIFICATIONS EATURES R152-S R1652-S R1T-S PRIME Components Built-In Tweeter Crossover Nominal Diameter - inch (mm) 5.25 (133) 6.5 (165) 1.0 (25) For the R152 S and R1652 S, a HP (High Pass) Description 2-Way Component 2-Way Component Tweeter Kit crossover is integrated into the tweeter housing. - Page 4 PECIFICATIONS 3.83 (97mm) 6.10 (154mm) 0.70 0.67 (17mm) (17mm) Specifications subject to change without notice.
- Page 5 R152-S 2.13" (54mm) Component System Tweeter 1.83" (46mm) R152 Midrange Mounting Holes 5.41" (137mm) R152 Midrange Hole Cutout 4.76" (121mm) Verify Scale Before Using 1.00" (25mm) Template 1.00" (25mm)
- Page 6 R1652-S 2.13" (54mm) Component System Tweeter 1.83" (46mm) R1652 Midrange Mounting Holes 6.46" (164mm) R1652 Midrange Hole Cutout 5.81" (147mm) Verify Scale Before Using 1.00" (25mm) Template 1.00" (25mm)
-
Page 7: Limited Warranty
Some states do not a ow imitations on the ength of an imp ied warranty, so this imitation may not app y. No person is authorized to assume for Rockford Fosgate any other iabi ity in connection with the sa e of the product.
