Installation and Operation Data
Installation and
Operation Manual
SpaLink

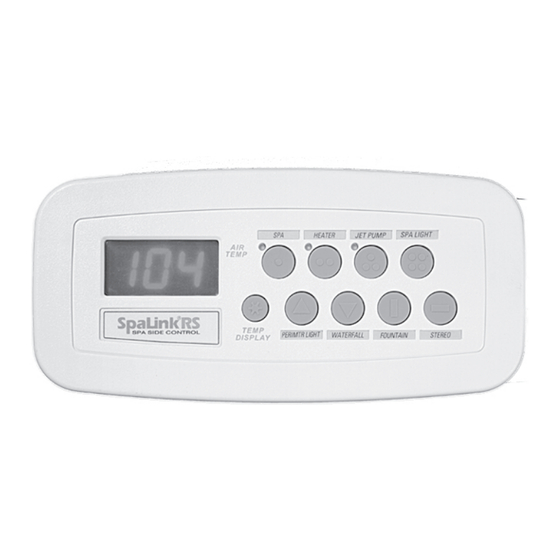

8 Function Spa
Side Remote
(For use with AquaLink
FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa
service technician. The procedures in this manual must be followed ex act ly. Failure to fol-
low warning notices and instructions may result in property damage, serious injury, or death.
Improper installation and/or operation will void the warrant.
®
RS
RS)
®
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jandy SpaLink RS
Summary of Contents for Jandy SpaLink RS
- Page 1 Installation and Operation Data Installation and Operation Manual SpaLink ® 8 Function Spa Side Remote (For use with AquaLink ® WARNING FOR YOUR SAFETY - This product must be installed and serviced by a pro fes sion al pool/spa service technician. The procedures in this manual must be followed ex act ly. Failure to fol- low warning notices and instructions may result in property damage, serious injury, or death.
-
Page 3: Table Of Contents
Table of Contents Section 5. SpaLink RS Operation ....12 Important Safety Instructions ... 4 Section 1. Section 6. Programming the SpaLink RS ..13 Section 2. Product Description ....... 6 Using the All Button ......... 13 Using the OneTouch ........13 Section 3. -
Page 4: Important Safety Instructions
Page 4 Important Safety Instructions Section 1. READ AND FOLLOW ALL INSTRUCTIONS Lire la notice technique All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: DANGER To reduce the risk of injury, do not remove the suction fittings of your spa or hot tub. - Page 5 Page 5 WARNING People with infectious diseases should not use a spa or hot tub. To avoid injury, exercise care when entering or exiting the spa or hot tub. Do not use drugs or alcohol before or during the use of a spa or hot tub to avoid unconsciousness and possible drowning.
-
Page 6: Section 2. Product Description
Power Cen ter). Use sweep elbows for turns (do not Power Center location. Do not install the SpaLink RS use 90° elbows) so that the SpaLink RS cable can Re mote until con struc tion of spa and deck is com plete. -
Page 7: Horizontal Installation Into The Deck
SpaLink RS and let cure. into the adapt er (if one is being used), then into NOTE Do not alter the SpaLink RS hous ing. Cut ting the PVC. At the mounting location, press (do not the housing may damage its seal and will void screw) the SpaLink RS into the PVC. -
Page 8: Installation Of Spalink Rs With Snap-On Frame With Mud Box
3.3 Installation of SpaLink RS with Snap- Power Center location. Use sweep elbows for turns on Frame with Mud Box so that the SpaLink RS cable can be easily pulled through later. 3.3.1 Vertical Surface Installation with Op- Install the snap-on frame onto... -
Page 9: Horizontal Surface Installation With Optional Mud Box
SpaLink RS cable through the conduit to the Power Center. At the Power Center, feed NOTE Order part no. 7940 SpaLink RS Mud Box for the SpaLink RS cable into the low voltage use with tile or concrete. -
Page 10: Rough-In Installation On A Horizontal Surface
SpaLink RS Flush Mount Mud Box. The mud around the mud box. Position and secure the mud box is for use with the new style SpaLink RS box in place. Figure 6 shows mud box secured to that is provided with a matching snap-on frame. -
Page 11: Section 4. Wiring Configuration
Page 11 Prime a 1" Schedule 40 PVC pipe for wiring Up to three SpaLink RS Con trols can be in stalled on conduit and the inside PVC fi tting located on one AquaL ink RS system. Each SpaLink RS installed the bottom of the mudbox using Oatey ®... -
Page 12: Section 5. Spalink Rs Operation
When the spa is on, press the Temp Display button to cycle the display from Water Temperature of the spa to “Sleep” mode, to Thermostat Setting, and then to Air Temperature. Figure 9. Operating the SpaLink RS Buttons Button Button Factory Default Button Factory Default Settings Settings... -
Page 13: Section 6. Programming The Spalink Rs
SpaLink RS. On the OneTouch, press the DOWN arrow button The All Button SpaLink RS Menu allows you to defi ne to scroll down to MENU/HELP. Press SELECT. which equipment is controlled by the but tons on the SpaLink RS. -
Page 14: Section 7. Exploded View And Replacement Parts
Exploded View and Replacement Parts Dwg. Kit # Description Qty. 7227 SpaLink RS, Frame, Cable Ties (2), 150’ Cable, White 7489 SpaLink RS, Frame, Cable Ties (2), 200’ Cable, White 7626 SpaLink RS, Frame, Cable Ties (2), 300’ Cable, White... -
Page 15: Section 8. Installation Template For Spalink
Page 15 Section 8. Installation Template for SpaLink RS into Deck with Snap-on Frame Only 2 ¾” 6 ⅞” 3 ⅛” Remove page and cut out center of template. Use remaining outer tem plate to locate and mark the outline of... - Page 16 DE grids, or cartridge elements; or damage caused by running the pump with insufficient quantities of water. LIMITATION OF LIABILITY: This is the only warranty given by Jandy Pool Products, Inc. No one is authorized to make any other warranties on behalf of Jandy Pool Products, Inc. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.
