Assembly guide

1.

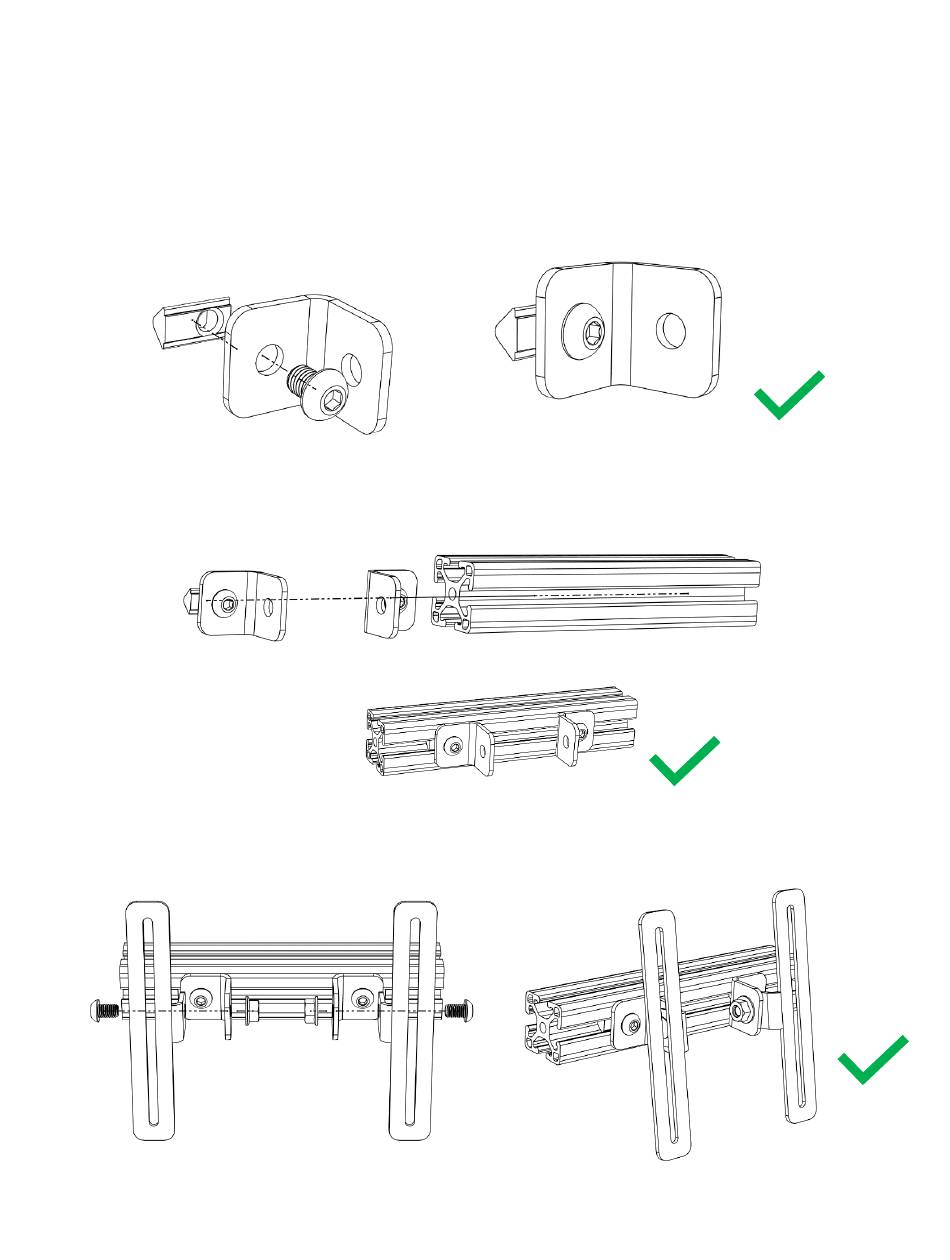

Assemble the pivot bracket using 1X M8 t-nut and 1X M8 X 16 socket screw.
Repeat for both
2X
2.
Slide the pivots on the 1.5" X 8" extrusions.
3.
Install the mount to button box bracket to the pivots using 1X M8 X 12 button
screw and 1X M8 flange nut. Repeat for both brackets.
