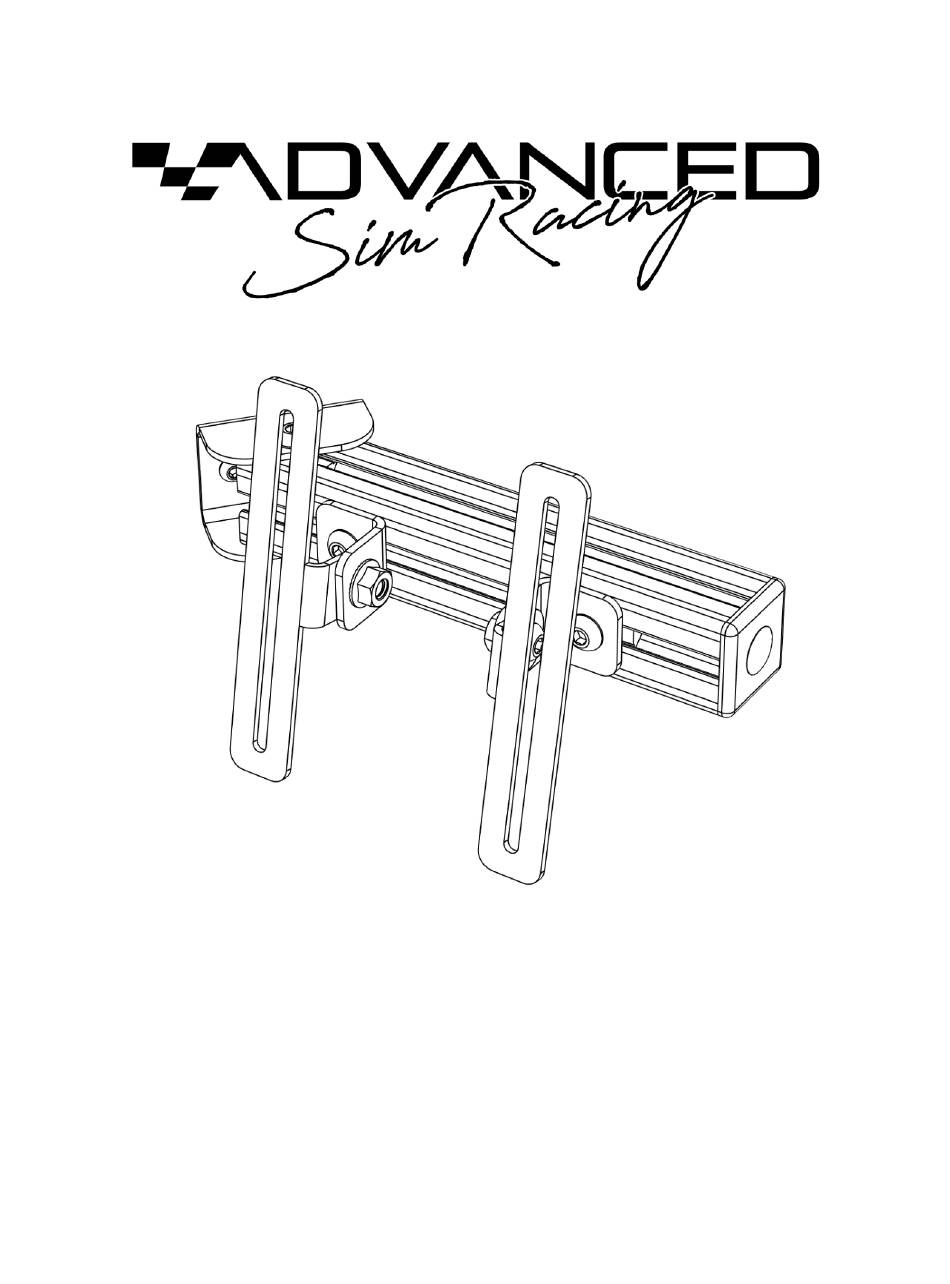

- Page 1 Advanced Button Box Mount ASSEMBLY AND USER GUIDE...
-
Page 2: Table Of Contents
Table of Contents Required Tools ............................1 Content of package ..........................2 Assembly guide ............................. 3 Installation guide ..........................5 T-Nut install tip ..........................8 User Guide .............................. 9... - Page 3 Disclaimer This assembly guide shall be considered as such: a guide. The steps, methods and measurements are suggestions from our assembly experience and are in no way shape or form absolute. The dimensions shown throughout the guides are reference dimensions. They are subject to be revised without notice and can be altered for preferred position of your peripherals.
-
Page 5: Required Tools
Required Tools 6mm Allen key 5mm Allen key For questions, issues or comments, feel free to reach our support team! https://www.advancedsimracing.com/pages/advanced-help-center... -
Page 6: Content Of Package
Content of package Boxes 1X monitor mount box 1.5” X 8” extrusion Mount to button box Button box pivot bracket – 2X bracket – 2X M6 X 12 Button Mount to chassis M8 T-Nuts – 4X M8 X 12 Button head screws –... -
Page 7: Assembly Guide
Assembly guide Assemble the pivot bracket using 1X M8 t-nut and 1X M8 X 16 socket screw. Repeat for both Slide the pivots on the 1.5” X 8” extrusions. Install the mount to button box bracket to the pivots using 1X M8 X 12 button screw and 1X M8 flange nut. - Page 8 Cap one end using the endcap and pushpin. Assemble the chassis mount with 2X M6 x 12 screws and 2X M6 t-nuts through the horizontal holes. For the vertical holes, use 2X M8 X 12 socket screws and 2X M8 t-nuts. Make sure to have the right sized screw at the right place!
-
Page 9: Installation Guide
Installation guide Remove the endcap from the desired install side on your chassis up-post. Shown here is with an ASR 6, it’s the same for all our chassis. Slide the button box mount bracket to the desired height and tighten the 2 M6 X 16 socket screws. - Page 10 Place the button box extrusion through the installed mount and tighten the 2X M8 X 12 screws. Tighten snug but not fully. Leave some room between the end of the extrusion and the chassis bracket to allow rotation. Reinstall the endcaps on your chassis.
- Page 11 Congrats on your new advanced button box mount!
-
Page 12: T-Nut Install Tip
T-Nut install tip Insert an M8 T-Nut in the desired slot of the extrusion. Insert the T nut perpendicular, and with the help of a small allen key in your attire such as a 3mm, pry the T nut straight with the allen key through the hole. The t-nut will snap into place when in position. -
Page 13: User Guide
User Guide To install the button box to the mount, loosen the 2X M8 button screws holding the pivot to the extrusion to position the slotted mounts with the bolt pattern of the button box.
