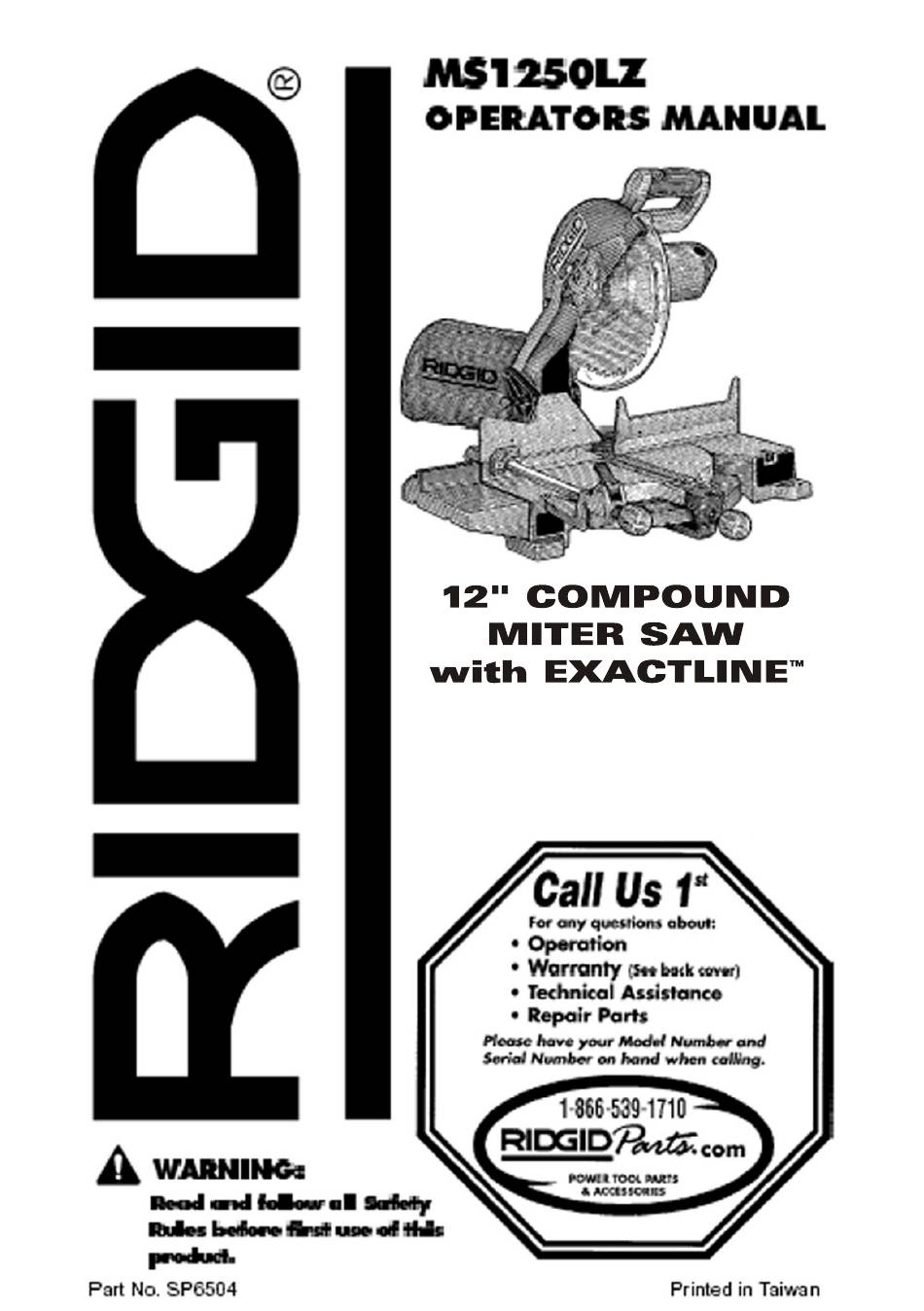

12" compound miter saw with exactline
Hide thumbs Also See for MS1250LZ:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the MS1250LZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIDGID MS1250LZ

Summary of Contents for RIDGID MS1250LZ

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 Before Each Use ........ 21 Safety Instructions For Miter Saw ..3 To Reduce the Risk of Injury From Safety Signal Words ......3 Jams, Slips Or Thrown Pieces ..21 Plan Ahead To Protect Your Eyes, Before Using The Saw ......3 When Installing Or Moving The Miter Hands, Face and Ears ....

  • Page 3: Safety Instructions For Miter Saw

    Safety Instructions For Miter Saw Safety is a combination of common sense, staying alert and knowing how your miter saw works. Read this manual to understand this miter saw. Safety Signal Words mation is not followed someone could be seriously injured or killed. DANGER: means if the safety infor- CAUTION: means if the safety infor- mation is not followed someone will...

  • Page 4: When Installing Or Moving The Miter Saw

    Safety Instructions for Miter Saws (continued) Find and read the following labels on the miter saw: When Installing Or Moving The Miter Saw Before moving the saw, lock the • Place the miter saw on a firm level miter, bevel and power head posi- surface where there is plenty of tions.

  • Page 5: To Reduce The Risk Of Injury From Jams, Slips Or Thrown Pieces

    Check For Damaged Parts. Check way the miter saw works. for: If any part of this miter saw is missing, • Proper Alignment of moving parts, bent, or broken in any way, or any electrical parts don't work, turn the •...

  • Page 6: Dress For Safety

    Safety Instructions for Miter Saws (continued) Plan your work. CAUTION: When cutting any met- als, sparks or hot fragments Use The Right Tool. Don’t force tool could cause a fire. To reduce the or attachment to do a job it was not risk of this, disconnect any dust designed to do.

  • Page 7: Whenever Saw Is Running

    Inspect Your Workpiece. Make sure off the table before turning the miter there are no nails or foreign objects in saw on. the part of the workpiece to be cut. • Secure Work. Use clamps or a vise Plan your work to reduce the risk to help hold the work when it’s prac- of thrown pieces caused when the tical.

  • Page 8: Before Leaving The Saw

    Safety Instructions for Miter Saws (continued) Keep Children Away. Keep all visi- out bogging down or binding. tors a safe distance from the miter Before freeing jammed material: saw. Make sure bystanders are clear • Turn miter saw “OFF” by releasing of the miter saw and workpiece.

  • Page 9: Motor Specifications And Electrical Requirements

    Revolutions Per Minute (RPM) Workpiece The number of turns completed by a spin- The item on which the cutting operation is ning object in one minute. being performed. The surfaces of a work- piece are commonly referred to as faces, Sawblade Path ends, and edges.

  • Page 10: 110-120 Volt, 60 Hz. Tool Information

    Motor Specifications and Electrical Requirements (con’t.) 110-120 Volt, 60 Hz. Tool Information Double Insulated ting wood, release the trigger switch, unplug the tool, and free the blade from The miter saw is double insulated to pro- the wood. The motor may now be vide a double thickness of insulation restarted and the cut finished.

  • Page 11: Unpacking And Checking Contents

    WARNING: Although compact, Check packaging for missing parts before this saw is heavy. To reduce the contacting RIDGID. A complete parts list risk of back injury, get help (Repair Parts) is at the end of the manual. whenever you have to lift the Use the list to identify the number of the saw.

  • Page 12: Unpacking And Checking Contents

    Unpacking and Checking Contents The following parts are included: Part or Assembly Qty. Part or Assembly Qty. A Basic Saw Assembly......1 J Short Upper Stiffeners ......2 B Table Extension........1 K Long Lower Stiffeners ......2 C Dust Bag ..........1 L Short Lower Stiffeners ......

  • Page 13: Assembly

    Assembly WARNING: For your own safety, never connect plug to power Lock Pin source outlet until all assembly steps are complete, and you have read and understood the safety and operational instruc- tions. Assembling and Aligning the Table Extension Table Extension 1.

  • Page 14: Installing Or Removing The Blade

    Assembly (continued) Installing or Removing the Blade See cautions in “Using Carbide Tipped Blades” section concerning inspection, WARNING: To reduce the risk of use, and selection of carbide tipped and injury from a thrown workpiece other sawblades. or thrown pieces of blade, do not use a blade larger or smaller than 12"...

  • Page 15: Getting To Know Your Miter Saw

    8. Install the outer blade collar, blade 10. Be sure the arbor lock is released so washer and arbor screw. Press the the blade turns freely. arbor lock and turn the combination NOTE: The arbor lock can be damaged wrench or the 1/2" wrench counter by improper use.
  • Page 16 Getting to Know Your Miter Saw (continued) 11. Arbor lock - Allows the user to keep blade from rotating while tightening or loosening arbor screw during blade replacement or removal. 12. Switch Interlock Button - Prevents trigger switch from being accidentally engaged.

  • Page 17: Alignment (Adjustments)

    Alignment (Adjustments) WARNING: Cut material can be 6. Unplug the power cord before starting alignment procedure. thrown. Eyes can be permanently damaged. Wear your safety goggles. NOTE: Before this saw is aligned or used, Spring a kerf must be cut into the table insert at 0°...
  • Page 18 Alignment (Adjustments) (continued) Step Two: Blade Square to Fence d. Use the miter saw knob to move the table so that the blade contacts the (Miter Alignment) full length of the square. Watch out WARNING: To reduce the risk of for tooth set.

  • Page 19: Assembling Leg Set

    Step Three: Pivot Adjustment ness in the pivot, do the following adjustment procedure: NOTE: This adjustment was made at the a. Loosen the bevel lock handle. factory and normally does not require b. Turn the hex lock nut with a 3/4" or readjustment.

  • Page 20: Mounting The Miter Saw

    Mounting The Miter Saw WARNING: To reduce the risk of Mounting Saw on Other Legsets or injury from unexpected saw Work Benches movement: a.Before moving the saw, lock the miter and bevel knobs and lock the power head in the lower position.

  • Page 21: Safety Instructions For Basic Saw Operations

    Safety Instructions for Basic Saw Operations way down, then let it rise up until it Before Each Use stops by itself. Check the lower Inspect your saw. guard to see if it closed fully. If it did Disconnect The Miter Saw. To not, follow the instructions in the reduce the risk of injury from acciden- Trouble Shooting section.

  • Page 22: Plan Ahead To Protect Your Eyes, Hands, Face And Ears

    Safety Instructions for Basic Saw Operations (con’t.) Plan Ahead To Protect Your Eyes, Hands, Face and Ears Know your miter saw. Read and for any workpiece that can’t be held in understand the owner’s manual and a solidly braced, fixed position. labels affixed to the tool.
  • Page 23 Don’t Overreach. Keep good footing • Do not use this saw to cut pieces and balance. too small to let you easily hold the work while you keep the thumb side Keep your face and body to one side of your index (pointer) finger against of sawblade, out of line with a possi- the outside edge of the fence.

  • Page 24: Whenever Saw Is Running

    Safety Instructions for Basic Saw Operations (con’t.) Whenever Saw Is Running WARNING: Don't allow familiarity Let the blade reach full speed (gained from frequent use of before cutting. This will help reduce your miter saw) cause a careless the risk of a thrown workpiece. mistake.

  • Page 25: Basic Saw Operations

    Basic Saw Operations WARNING: For your convenient use, your saw has a blade brake. The brake is not a safety device. Never rely on it to replace proper use of the guard on your saw. If the blade does not stop within 6 seconds, unplug the saw and fol- low the instructions in the Trou- ble Shooting section for fixing...

  • Page 26: Sliding Fence

    Basic Saw Operations (continued) Sliding Fence When beveling the blade to the left the fence may have to be repositioned. Loosen the fence locking knob and slide the fence to the left. Adjust the fence as close to the guard and link as possible to provide maximum support for the work- piece.

  • Page 27: Compound Cut

    Compound Cut When a compound cut is required, select the desired bevel and miter positions. Move with the handle to the miter angle to make the cut. Cutting Compound Miters on Picture Frames and Boxes A compound miter is a cut requiring both obtain the desired angle, it is advisable to a miter setting and bevel setting.

  • Page 28: Workpiece Support

    Basic Saw Operations (continued) Workpiece Support Long pieces need extra supports. The supports should be placed along the workpiece so the workpiece does not sag and your hand holding the workpiece is positioned 4” or more from the blade path. The support should let the workpiece lay flat on the base and work table during the cutting operation.

  • Page 29: Cutting Crown Moldings

    Cutting Crown Moldings Your compound miter saw does an excel- lent job of cutting crown molding. How- ever, in order to fit properly, crown 38° molding must be cut with extreme accu- 52° racy. Miter Saw Table Miter Saw Table 1.
  • Page 30 Basic Saw Operations (continued) Ceiling Compound Miter Saw Miter and Bevel Angle Settings Wall to Crown Molding Angle: 52/38 degrees Bevel Miter Bevel Miter Bevel Miter Wall Angle Wall Angle Wall Angle Angle Angle Angle Angle Angle Angle (deg.) (deg.) (deg.) (deg.) (deg.)
  • Page 31 Ceiling Wall to Crown Molding Angle: 45 degrees Bevel Miter Bevel Miter Bevel Miter Wall Angle Wall Angle Wall Angle Angle Angle Angle Angle Angle Angle (deg.) (deg.) (deg.) (deg.) (deg.) (deg.) (deg.) (deg.) (deg.) 37.8 50.8 26.7 30.2 13.7 14.1 37.5 50.2...
  • Page 32 Basic Saw Operations (continued) Cutting Crown Molding Angled to the 4. Remove the wood fence and cut to this Table and Fence width. The advantage of cutting crown molding 5. Use small nails and glue to attach a top in this position is that no bevel setting is piece (typically 1/2 inch thick by 1-1/2 required.

  • Page 33: Laser System

    Laser System Mounting the Laser System Coverplate WARNING: To reduce the risk of Stop injury from unexpected starting, Screw unplug the saw whenever you Arbor are removing or installing the Screw blade. Blade NOTE: See “Installing or Removing Blade” section of this manual for more information.
  • Page 34 Laser System (continued) 6. Remove the arbor screw, arbor washer, NOTE: The arbor lock can be damaged and outer blade collar. by improper use. If the arbor lock will not hold, lower the blade down on to a scrap NOTE: The Exactline™ Laser System piece of wood positioned against the will replace the outer blade collar.

  • Page 35: Operation

    Operation DANGER: Laser radiation. Avoid 5. Turn the saw “OFF” and allow the blade to come to a complete stop direct eye exposure. before raising. When the saw is “ON” and the blade is in Practice cuts will let you become familiar its highest position, the laser system will with correctly lining the laser mark up with show up on your workpiece as a red col-...

  • Page 36: Changing Batteries

    Laser System (continued) Changing Batteries WARNING: To reduce the risk of Screws injury from unexpected starting, unplug the saw whenever you are removing or installing the blade. 1. Remove the Exactline™ Laser System from the saw. 2. Remove the two Phillips screws on the Aperature Laser Guide back side of the laser system and take...

  • Page 37: Maintenance And Lubrication

    Maintenance and Lubrication Lower Blade Guard Maintenance Do not use the saw without the lower DANGER: Never put lubricants guard. The lower blade guard is attached on the blade while it is spinning. to the saw for your protection. Should the WARNING: To reduce the risk of lower guard become damaged, do not use the saw until damaged guard has...

  • Page 38: Accessories

    Maintenance and Lubrication (continued) 4. Use a small amount of general purpose grease on the miter index indents that are located below the miter scale on the front of the unit. See Illustration. Grease Accessories WARNING: To reduce the risk of Basic Blade Requirements injury from unsafe accessories, 12"...

  • Page 39: Troubleshooting Guide

    Troubleshooting Guide General Problem Probable Cause Suggested Corrective Action Blade hits table. 1. Misalignment 1. Get authorized Service. Angle of cut not 1. Misalignment 1. See “Alignment” section. accurate. Can’t move miter 1. Sawdust under 1. Vacuum or blow out dust. adjustment table Wear Eye Protection.

  • Page 40: Motor

    Troubleshooting Guide (continued) Motor Problem Probable Cause Suggested Corrective Action Brake does not stop 1. Brushes not seated 1. Inspect/clean/replace blade within 6 sec- or lightly sticking. brushes. See “Maintenance” onds. section. 2. Motor brake winding 2. Use only recommended overheated from blades/accessories.

  • Page 41: Notes

    Notes...

  • Page 42: Repair Parts

    Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 1...
  • Page 43 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 1 Always order by part number - not by key number Part No. Description Part No. Description 828102...
  • Page 44 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 2 Upper and Lower Guards Without Exactline™ Laser System 13 14 With Exactline™Laser System To remove this item use a...
  • Page 45 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 2 Upper and Lower Guards ‡ Always order by part number - Not by key number Part No.
  • Page 46 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 3 - Handle and Motor Assembly 26 19...
  • Page 47 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 3 - Handle and Motor Assembly Always order by Part Number - Not by Key Number Part No.
  • Page 48 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 4 - Pivot Assembly Always order by Part Number - Not by Key Number Part No. Description Part No.
  • Page 49 Repair Parts Parts List For RIDGID 12" Compound Miter Saw Model No. MS12502LZ 0 RIDGID parts are available on-line at www.ridgidparts.com Figure 5 - Legset Always order by Part Number - Not by Key Number Part No. Description Part No.

  • Page 50: Notes

    Notes...
  • Page 51 Notes...
  • Page 52 What is covered under the Limited Three Year Warranty This warranty covers all defects in workmanship or materials in this RIDGID® tool for the three year period from the date of purchase. This war- ranty is specific to this tool. Warranties for other RIDGID® products may vary.
