MGC 400 Series Manual

About this Manual
This manual is included as a quick reference for installation. For
further information on the use of this device with an FACU, please
refer to the panel's manual.
Note: This manual should be left with the owner/operator of this
equipment.
This manual covers the following models:
FH-400-LF-RR Red wall and ceiling mounted low frequency
sounder
FH-400-LF-WW White wall and ceiling mounted low frequency
sounder
Notes
• DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN
ANY WAY.
• NE PAS PEINDRE OU MODIFIER LA FINITION
ORIGINALE.
• Use the information in this document to determine the total
current draw of the devices. The total current draw of the
devices must not exceed the power supply of the panel. In all
cases, the installer should consider the voltage drop to
ensure that the last device on the circuit operates within its
rated voltage.
• Wiring must be in accordance with CSA C22.1 Section 32
Description
The low frequency 400 series sounder provides a wide range of
low frequency audible settings in a single compact device. These
low frequency devices operate within a range of 520 Hz ± 10%
which address the NFPA 72 sleeping space requirements. The
low frequency sounder can be synchronized using an FACU or
PSU with the MGC protocol or through an external sync module
for compatibility with any UL/ULC listed FACU or PSU.
Sounder models are approved for wall and ceiling installations.
Specifications
Operating temperature:
Humidity range:
Nominal Voltage:
Operating Voltage Range
(RMS):
Frequency Range:
Input terminal wire gauge:
Installation environment:
1
0°C to 50°C (32°F to 122°F)
0% to 93%
Regulated 24 VDC / 24 VFWR
16 - 33 VDC / VFWR
520 Hz ± 10%
22 AWG to 12 AWG
For indoor use only
Low Frequency 400 Series
Notification Appliance - Sounder

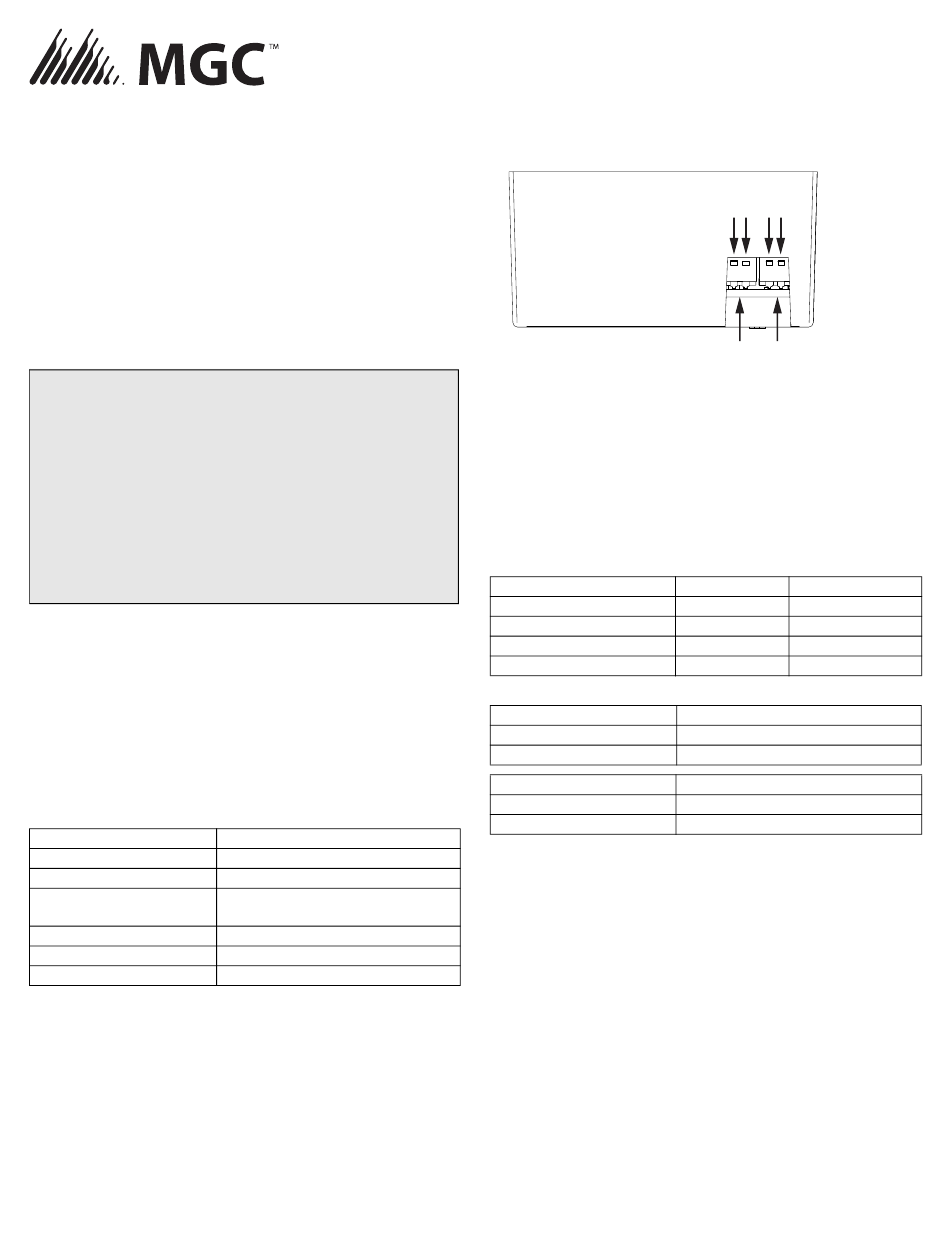

Setting the DIP Switches
NOTE for SW2: Use NON-SYNCHRONIZED when the
appliances do not need to be synchronized. Use
SYNCHRONIZED when synchronization is required, either
through a sync module or built-in synchronization on the
control unit.
When SYNCHRONIZED is selected, the settings for DIP
switch SW1 are ignored.
When NON-SYNCHRONIZED is selected, the sounder will
sound only the audible pattern as selected through DIP
switch SW1.
SW1
Signal Rate
Continuous
Temporal 4
Temporal 3
20 BPM
SW2
Input
SYNCHRONIZED
NON-SYNCHRONIZED
Sounder Volume
High
Normal
www.mircomgroup.com LT-6769 Rev. 0 July 2024
12 12
OFF
ON
SW1 SW2
1 2
OFF OFF
ON OFF
ON (default) ON (default)
OFF ON
1
OFF (default)
ON
2
ON
OFF (default)
