INSTALLATION AND MAINTENANCE INSTRUCTIONS
MIX-4003-LF LOW FREQUENCY SOUNDER BASE
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE
ABOUT THIS MANUAL
This manual is included as a quick reference for installation. For further
information on the use of this device with an FACP, please refer to the
panel's manual.
Note: This manual should be left with the owner or operator of this
equipment.
SOUNDER BASE DESCRIPTION
The MIX-4003-LF sounder base is designed to meet UL268/ULC S529
requirements for smoke detector, UL521/ULC S530 requirements for heat
detector, and UL464/ULC S525 requirements for audible notification
appliances.
The MGC MIX-4003-LF provides localized alarm sounding capability for
the MIX-4000 family of fire detection devices. They can be used in place
of external sounders to minimize installation cost and footprint while
allowing individual control of signal rate and on-off state for each device.
The MIX-4003-LF must be used with a compatible MGC control panel.
Operational mode and levels are selected at the Fire alarm panel through
the MGC MP configuration tool.
The MIX-4003-LF produces a low frequency alarm signal at sound
pressure levels shown in table 2.
1
25 Interchange way, Vaughan Ontario. L4K 5W3

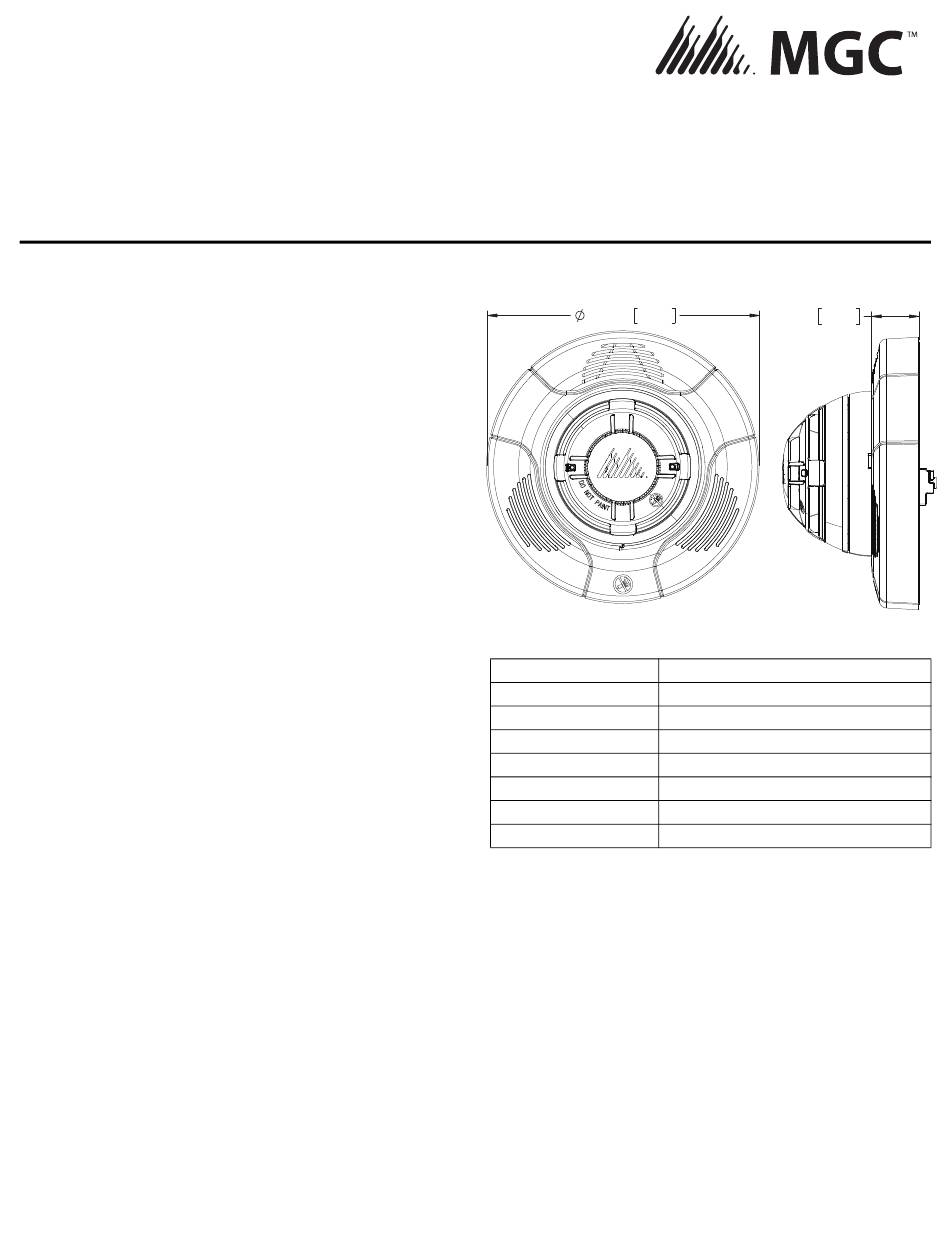

FIGURE 1:
MODEL FRONT AND SIDE VIEW WITH MIX-4000
SERIES DETECTOR
182mm 7.18in
Table 1:
SPECIFICATIONS
Operating Temperature
Humidity Range
Nominal Voltage
SLC Standby Current
SLC Alarm Current
Base Diameter
Base Height
Terminal wire gauge
Phone: 905.660.4655; Fax: 905.660.4113
Web: www.mircomgroup.com
32mm 1.26in
0°C to 49°C (32°F to 120°F)
0% to 93%
Regulated 24VDC/VFWR
1.56mA
2.34 mA
182mm (7-3/16 in)
32mm (1-1/4 in)
12-22 AWG
LT-6742 rev 1 9/11/24
Advertisement
Summary of Contents for MGC MIX-4003-LF
- Page 1 Operating Temperature 0°C to 49°C (32°F to 120°F) The MIX-4003-LF must be used with a compatible MGC control panel. Humidity Range 0% to 93% Operational mode and levels are selected at the Fire alarm panel through the MGC MP configuration tool.
-
Page 2: Key Components
KEY COMPONENTS WIRING FIGURE 2: SOUNDER BASE ASSEMBLY COMPONENTS Before installing this device seek guidance from the compatible control panel instructions for the device operation modes and the configuration requirements. It is recommended to remove power from SLC and NAC plate lines before performing the installation. - Page 3 FIGURE 5: DEVICE CONNECTION SLCin SLCout TO NEXT DEVICE OR FACP LOOP TO SLC DRIVER SLCin FOR CLASS A LINES POWER SUPPLY 16 - 33 Vdc/Vfwr TO NEXT DEVICE OR NAC + E.O.L OR LOOP TO NAC OUTPUT FOR CLASS A LINES Note: Wiring must be in accordance with CSA C22.1, Canadian Electrical FIGURE 6: MOUNTING DIAGRAM...
-
Page 4: Mounting The Detector
MOUNTING THE DETECTOR FIGURE 9: DETECTOR ALIGNMENT MARK If the detector type and address is required to be visible from the outside, break the address tab inside the detector base and insert it in the outer rim Alignment of the base. See figure 7. mark FIGURE 7: ADDRESS TAB INSERT... -
Page 5: Warranty
NOTE: For NFPA 72 Installations, the Temporal 3 tone should be used for emergency and public mode evacuation. The use of other tone styles will be at the discretion of the local Authority Having Jurisdiction (AHJ). Model Numbers MIX-4003-LF 4000 SERIES LOW FREQUENCY SOUNDER BASE Accessories MIX-4000 SERIES DETECTORS:...
