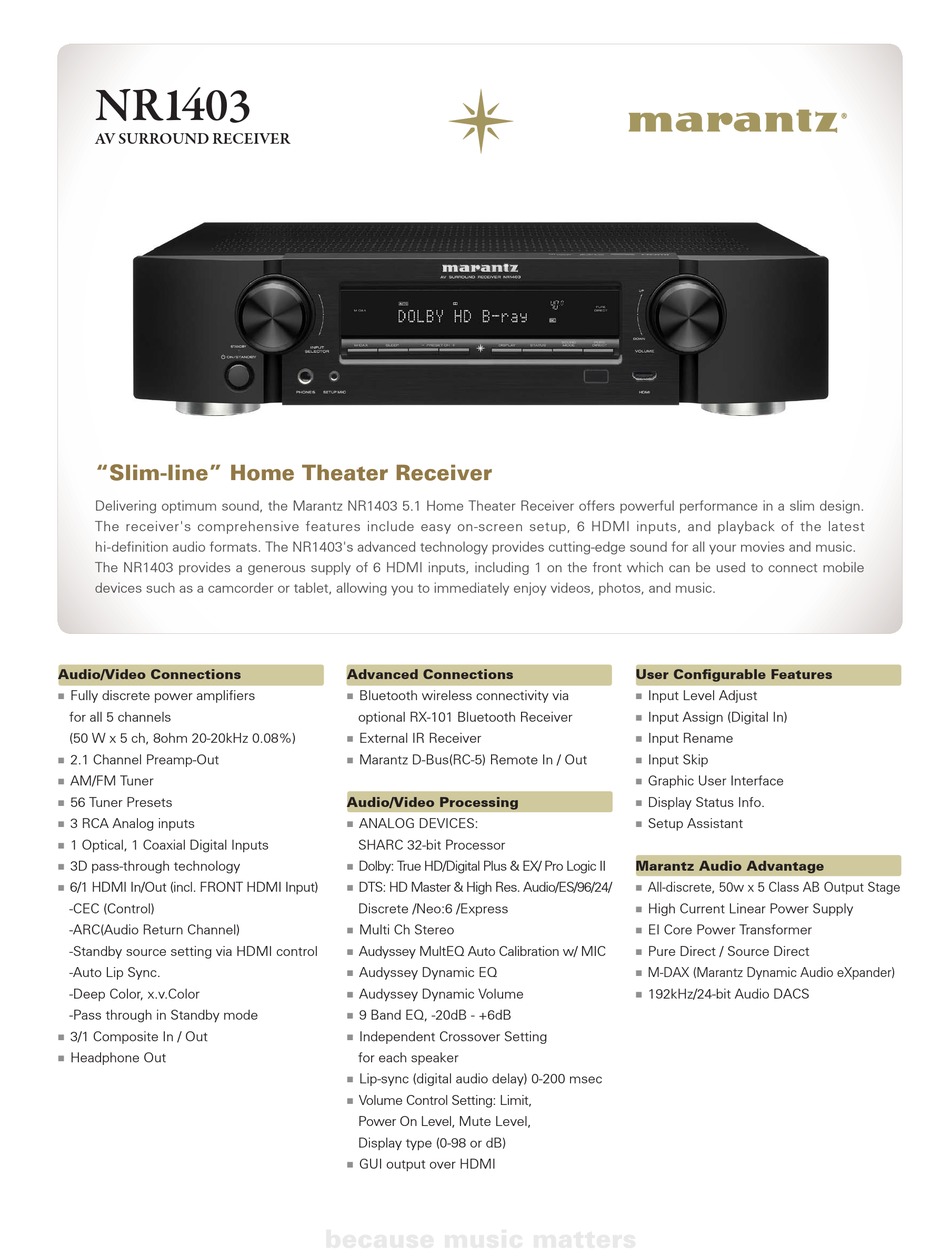

Marantz NR1403 Specifications

NR1403
AV SURROUND RECEIVER
"Slim-line" Home Theater Receiver
Delivering optimum sound, the Marantz NR1403 5.1 Home Theater Receiver offers powerful performance in a slim design.
The receiver's comprehensive features include easy on-screen setup, 6 HDMI inputs, and playback of the latest
hi-definition audio formats. The NR1403's advanced technology provides cutting-edge sound for all your movies and music.
The NR1403 provides a generous supply of 6 HDMI inputs, including 1 on the front which can be used to connect mobile
devices such as a camcorder or tablet, allowing you to immediately enjoy videos, photos, and music.
Audio/Video Connections
Fully discrete power amplifiers
n
for all 5 channels
(50 W x 5 ch, 8ohm 20-20kHz 0.08%)
2.1 Channel Preamp-Out
n
AM/FM Tuner
n
56 Tuner Presets
n
3 RCA Analog inputs
n
1 Optical, 1 Coaxial Digital Inputs
n
3D pass-through technology
n
6/1 HDMI In/Out (incl. FRONT HDMI Input)
n
-CEC (Control)
-ARC(Audio Return Channel)
-Standby source setting via HDMI control
-Auto Lip Sync.
-Deep Color, x.v.Color
-Pass through in Standby mode
3/1 Composite In / Out
n
Headphone Out
n
Advanced Connections
Bluetooth wireless connectivity via
n
optional RX-101 Bluetooth Receiver
External IR Receiver
n
Marantz D-Bus(RC-5) Remote In / Out
n
Audio/Video Processing
ANALOG DEVICES:
n
SHARC 32-bit Processor
Dolby: True HD/Digital Plus & EX/ Pro Logic II
n
DTS: HD Master & High Res. Audio/ES/96/24/
n
Discrete /Neo:6 /Express
Multi Ch Stereo
n
Audyssey MultEQ Auto Calibration w/ MIC
n
Audyssey Dynamic EQ
n
Audyssey Dynamic Volume
n
9 Band EQ, -20dB - +6dB
n
Independent Crossover Setting
n
for each speaker
Lip-sync (digital audio delay) 0-200 msec
n
Volume Control Setting: Limit,
n
Power On Level, Mute Level,
Display type (0-98 or dB)
GUI output over HDMI
n
User Configurable Features
Input Level Adjust
n
Input Assign (Digital In)
n
Input Rename
n
Input Skip
n
Graphic User Interface
n
Display Status Info.
n
Setup Assistant
n
Marantz Audio Advantage
All-discrete, 50w x 5 Class AB Output Stage
n
High Current Linear Power Supply
n
EI Core Power Transformer
n
Pure Direct / Source Direct
n
M-DAX (Marantz Dynamic Audio eXpander)
n
192kHz/24-bit Audio DACS
n
