FLOOR STANDING
DZDF4-3-XY D22 ÷ D80
DZDF5-3-XY D22 ÷ D80
DZGF3B-3-XY D22 ÷ D80
M0U300002-00 - 01/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DZDF4-3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kaysun DZDF4-3 Series

Summary of Contents for Kaysun DZDF4-3 Series

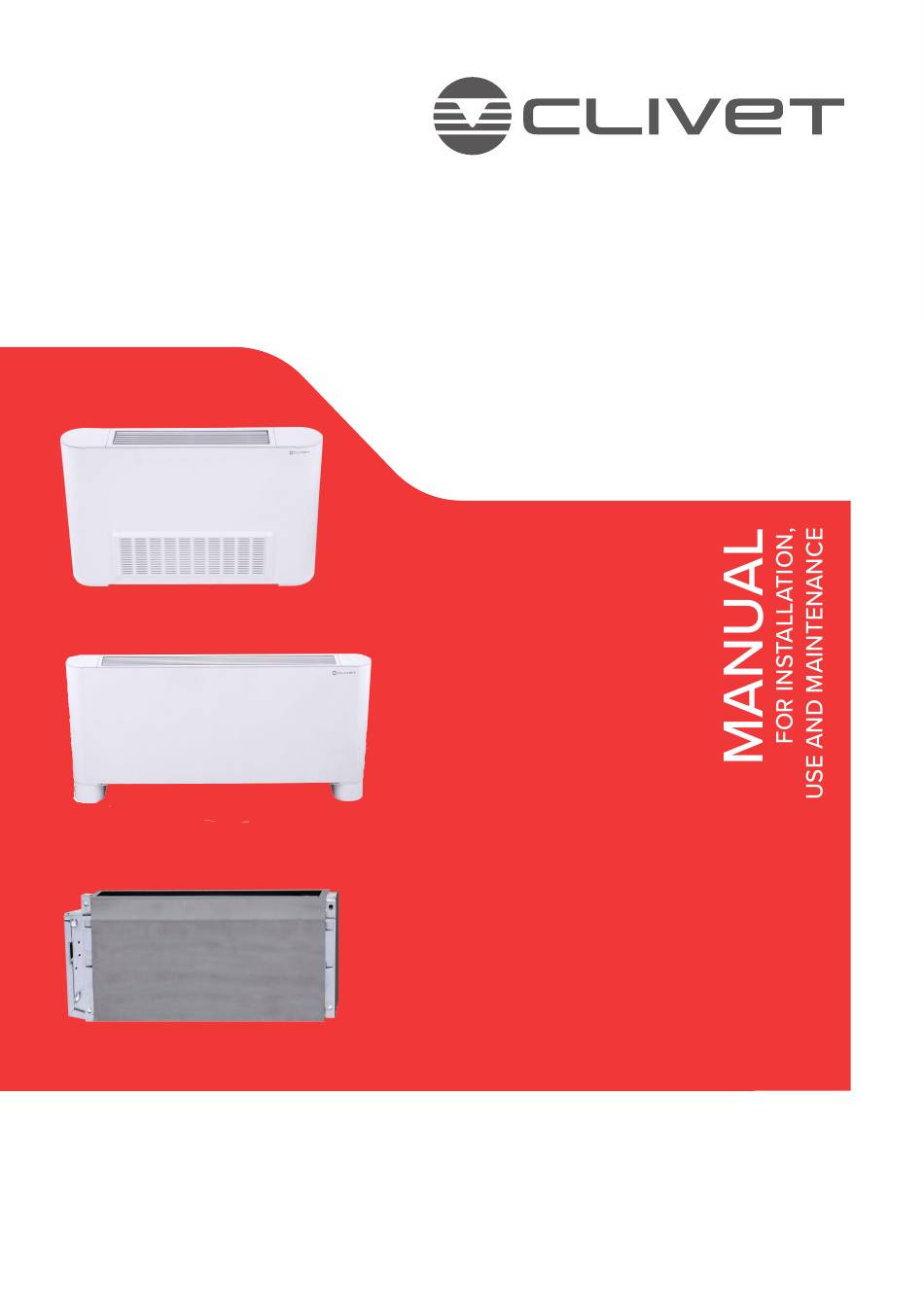

  • Page 1 FLOOR STANDING DZDF4-3-XY D22 ÷ D80 DZDF5-3-XY D22 ÷ D80 DZGF3B-3-XY D22 ÷ D80 M0U300002-00 - 01/2024...
