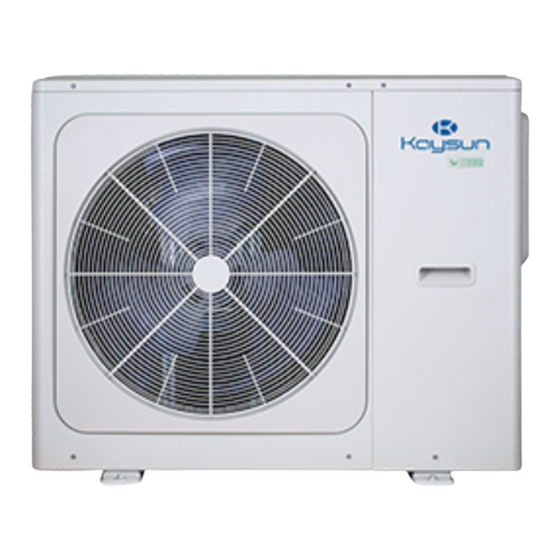

- Page 1 INSTALLATION & OWNER’S MANUAL Minichillers Full DC Inverter R-32 KEM-12 DVR KEM-14 DTR KEM-05 DVR KEM-12 DTR KEM-16 DVR KEM-07 DVR KEM-09 DVR KEM-14 DVR KEM-16 DTR Thank you very much for purchasing our product. Before use, please carefully read this manual and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS 1 SAFETY PRECAUTIONS GENERAL INTRODUCTION ACCESSORIES Accessories supplied with the unit Accessories avaliable from supplier BEFORE INSTALLATION IMPORTANT INFORMATION FOR THE REFRIGERANT INSTALLATION SITE Selecting a location in cold climates Selecting a location in direct sunlight INSTALLATION PRECAUTIONS Dimensions Installation requirements Drain hole position Servicing space requirements... - Page 3 11 MENU STRUCTURE: OVERVIEW 11.1 Setting parameters 12 FINAL CHECKS AND TEST RUN Final checks 12.1 12.2 Test run operation(manually) 13 MAINTENANCE AND SERVICE 14 TROUBLESHOOTING 14.1 General guidelines General symptoms 14.2 14.3 Error codes 15 TECHNICAL SPECIFICATIONS 15.1 General Electrical specifications 15.2 16 INFORMATION SERVICING...
- Page 4 Please remove the hollow plate after installation. NOTE Picture in this manual for reference only, please refer to the actual product. The backup heater can be customized outside the unit in accordance with demands，which contains 3kW(1-phase) , 4.5kW(1-phase), 4.5kW(3-phase), 6kW(3-phase) and 9kW(3-phase)（Please refer to the INSTALLATION & OWNER’S MANUAL of the backup heater for details).
-
Page 5: Safety Precautions
1 SAFETY PRECAUTIONS The precautions listed here are divided into the following types.They are quite important, so be sure to follow them carefully. Meanings of DANGER, WARNING, CAUTION and NOTE symbols. INFORMATION Read these instructions carefully before installation. Keep this manual in a handy for future reference. Improper installation of equipment or accessories may result in electric shock, short-circuit, leakage, fire or other damage to the equipment. - Page 6 DANGER Before touching electric terminal parts, turn off power switch. When service panels are removed, live parts can be easily touched by accident. Never leave the unit unattended during installation or servicing when the service panel is removed. Do not touch water pipes during and immediately after operation as the pipes may be hot and could burn your hands.
- Page 7 Do not install the unit in the following places: - Where there is mist of mineral oil, oil spray or vapors. Plastic parts may deteriorate, and cause them to come loose or water to leak. - Where corrosive gases (such as sulphurous acid gas) are produced. Where corrosion of copper pipes or soldered parts may cause refrigerant to leak.
-
Page 8: General Introduction
2 GENERAL INTRODUCTION These units are used for both heating and cooling applications and domestic hot water tanks.They can be combined with fan coil units, floor heating applications, low temperature high efficiency radiators, domestic hot water tanks and solar kits, which are all field supplied. -
Page 9: Accessories
3 ACCESSORIES 4 BEFORE INSTALLATION 3.1 Accessories supplied with the unit Before installation Be sure to confirm the model name and the serial number of the unit. Installation Fittings Transport Quantity Due to relatively large dimensions and heavy weight, the Name Shape unit should only be hoised by lifting tools with slings, please... -
Page 10: Important Information For The Refrigerant
5 IMPORTANT INFORMATION FOR THE REFRIGERANT This product has the fluorinated gas, which is forbidden to release to air. Refrigerant type: R32; Volume of GWP: 675. GWP=Global Warming Potential Factory charged refrigerant volume in the unit Model Refrigerant/kg Tonnes CO equivalent 1.25 0.85... -
Page 11: Selecting A Location In Cold Climates
In normal condition,refer to the figures below for installation of If you install the unit on a building the unit: frame, please install a waterproof tray (field supply) (about 100mm, on the underside of the unit) in order to avoid drain water dripping. (See the picture in the right). -
Page 12: Installation Precautions
7 INSTALLATION PRECAUTIONS 7.1 Dimensions (unit:mm) Model 5-16kW 1040 7.2 Installation requirements Check the strength and level of the installation ground so that the unit may not cause any vibrations or noise during its operation. In accordance with the foundation drawing in the figure, fix the unit securely by means of foundation bolts. (Prepare four sets each of Φ10 Expansion bolts, nuts and washers which are readily available in the market.) Screw in the foundation bolts until their length is 20 mm from the foundation surface. -
Page 13: Servicing Space Requirements
NOTE It's necessary to install an electrical heating belt if water can't drain out in cold weather even the big drain hole has opened. 7.4 Servicing space requirements 7.4.1 In case of stacked installation 1) In case obstacles exist in front of the air outlet side. 2) In case obstacles exist in front of the air inlet side. -
Page 14: Typical Applications
8 TYPICAL APPLICATIONS The application examples given below are for illustration only. 8.1 Application 1 Indoor Outdoor FHL1 FHL2 FHLn Modbus Code Assembly unit Code Assembly unit Main unit Filter(Accessory) User interface Shut-off valve(Field supply) Buffer tank(Field supply) Filling valve(Field supply) Automatic air purge valve Drainge valve(Field supply) Drainge valve... -
Page 15: Application
8.2 Application 2 ROOM THERMOSTAT control for space heating or cooling need to be set on the user interface. It can be set in three ways: MODE SET/ONE ZONE/DOUBLE ZONE. The unit can be connected to a low voltage room thermostat. - Page 16 8.2.2 Mode set control Indoor Outdoor FCU1 FCU2 FCUn FHL1 FHL2 FHLn Assembly unit Assembly unit Code Code Main unit Filling valve (Field supply) Drainage valve (Field supply ) User interface Buffer tank (Field supply ) Collector/distributor Bypass valve (Field supply) Automatic air purge valve Drainage valve SV2: 3...
- Page 17 8.2.3 Double zone control Indoor Outdoor RAD.1 ZONE1 RAD.2 RAD.n ZONE2 23.1 23.2 Modbus FHL1 FHL2 FHLn Assembly unit Assembly unit Code Code Drainage valve (Field supply ) Main unit User interface Collector/distributor (Field supply) Buffer tank (Field supply) Mixing station (Field supply) Automatic air purge valve SV3: Mixing valve (Field supply) 23.1...
-
Page 18: Cascade System
NOTE Drainage valve must be installed at the lowest position of the piping system. 8.3 Cascade system 12.1 12.2 Code Assembly unit Code Assembly unit Collector/distributor(Field supply) Master unit Bypass valve (Field supply) 1.2...n Slave unit Mixing station(Field supply) User interface 12.1 SV3:Mixing valve(Field supply) Buffer tank(Field supply) - Page 19 Space heating All units can operate in space heating mode. The operation mode and setting temperature are set on the user interface(2). Due to changes of the outdoor temperature and the required load indoors, multiple outdoor units may operate at different times.
-
Page 20: Buffer Tank Volume Requirement
1. In cascade system, Tbt sensor must be connected to master unit and set Tbt vaild on user interface，otherwise all slave units will not work. 8.4 Buffer tank volume requirement Buffer tank(L) 5~9 kW 9 OVERVIEW OF THE UNIT 9.1 Main components 9.1.1 Hydraulic module Code Assembly unit... -
Page 21: Control Board
9.2 Control board 9.2.1 Hydraulic module board CN24 CN28 CN23 CN37 CN15 CN21 CN64 CN27 CN25 CN32 CN66 CN33 CN29 CN31 CN35 CN42 CN36 CN22 CN17 14 15 CN11 CN30 Order Port Code Assembly unit Order Port Code Assembly unit POWER 10V GND Output port for 0-10V CN21... - Page 22 9.2.2 Main control board COMM H-SEN CN45 P E Q Code Assembly unit Code Assembly unit Power input port from Main control board (CN1) Reserved(CN42) Port for communication with Inverter module Reserved(CN41) (CN43) Port for high pressure switch (CN18) OUT1 (CN40) Port for low pressure switch (CN17) Port for crankcase heating tape(CN38) Port for high pressure sensor(CN3)
- Page 23 9.2.3 1-phase for 5-16kW units 1) 5/7/9kW， Inverter module CN10 CN12 CN13 Code Assembly unit Assembly unit Code Compressor connection port U Port for high pressure switch (CN12)（Reserved） Compressor connection port V Port for power supply(CN13) Compressor connection port W Input port L for rectifier bridge(CN501) Port for fan(CN32) Input port N for rectifier bridge(CN502)
- Page 24 9.2.4 3-phase for 12/14/16 kW units 1) Inverter module CN12 CN16 CN22 CN15 CN39 CN17 CN18 CN19 CN10 Code Assembly unit Assembly unit Code Compressor connection port W (CN19) Power Input port L1 (CN16) Compressor connection port V (CN18) Input port P_in for IPM module (CN1) Port for communication with main control board (CN43) Compressor connection port U (CN17) PED board(CN22)
- Page 25 2) Filter board CN204 CN205 CN206 CN30 CN214 CN202 CN203 CN200 CN201 PCB C 3-phase 12/14/16kW Code Assembly unit Code Assembly unit Power supply L1(CN202) Power filtering output L3’(CN204) Power filtering L2’(CN205) Power supply L2(CN201) Power filtering L1’(CN206) Power supply L3(CN200) Power supply N(CN203) Port for voltage detection(CN30) Power supply port for main control board(CN214)
-
Page 26: Water Piping
9.3 Water piping All piping lengths and distances have been taken into consideration. The maximum allowed thermistor cable length is 20m. If there is no glycol (anti-freeze) in the system or there is a power supply failure or pump failure, drain the system (as shown in the figure below). - Page 27 Before continuing installation of the unit, check the following: The maximum water pressure ≤ 3 bar. The maximum water temperature ≤ 70°C according to safety device setting. Always use materials that are compatible with the water used in the system and with the materials used in the unit. Ensure that components installed in the field piping can withstand the water pressure and temperature.
-
Page 28: Filling Water
9.3.3 Water circuit connection Water connections must be made correctly in accordance with labels on the outdoor unit, with respect to the water inlet and water outlet. CAUTION Be careful not to deform the unit’s piping by using excessive force when connecting the piping. -
Page 29: Water Piping Insulation
9.5 Water piping insulation The complete water circuit including all piping, water piping must be insulated to prevent condensation during cooling operation and reduction of the heating and cooling capacity as well as prevention of freezing of the outside water piping during winter. The insulation material should at least of B1 fire resistance rating and complies with all applicable legislation. - Page 30 CN31 AHS1 AHS2 1OFF 2OFF 3OFF X/HA Y/HB 14 15 16 IBH1 IBH2 C1 C1 CN11 CN30 Main Item Description AC/DC Required number of conductors Maximum running current 200mA User interface cable Room thermostat cable 200mA(a) Outside circulation pump control cable 200mA(a) SV2: 3-way valve control cable 200mA(a)
- Page 31 NOTE Please use H07RN-F for the power wire, all the cable are connect to high voltage except for thermistor cable and cable for user interface. Equipment must be grounded. All high-voltage external load, if it is metal or a grounded port, must be grounded. All external load current is needed less than 0.2A, if the single load current is greater than 0.2A, the load must be controlled through AC contactor.
- Page 32 Table 9-1 Rated current Nominal cross-sectional area (mm ) of appliance:（A） Flexible cords Cable for fixed wiring 0.5 and 0.75 and 2.5 ≤ 0.75 and 1 and 2.5 > ≤ and 1.5 and 2.5 > ≤ 10 and 1.5 and 2.5 1.5 and 4 >...
- Page 33 Slave unit Master unit X/HAX/HB Please use the shielded wire, and the shield layer must be grounded. H1 H2 H1 H2 H1 H2 ..Master unit Slave unit 1 Slave unit 2 Slave unit x Only the last IDU requires adding the build-out resistor at H1 and H2.
- Page 34 When connecting to the power supply terminal, use the circular wiring terminal with the insulation casing (see Figure 9.1). Use power cord that conforms to the specifications and connect the power cord firmly. To prevent the cord from being pulled out by external force, make sure it is fixed securely. If circular wiring terminal with the insulation casing cannot be used, please make sure that: •...
- Page 35 9.6.6 Connection for other components Control signal port of hydraulic module: The CN11contains Unit 5-16kW terminals for 3-way valve, pump,booster heater , etc. See 9.2.1for detailed port description. The parts wiring is illustrated below: Port provide the control signal to the load.Two kind of control signal 1) For additional heat source control(AHS)：...
- Page 36 2) For 3-way valve SV2 and SV3: 2OFF CN11 CN11 Power supply 7 5 3 1 3OFF outside circulation pump P_o CN11 Voltage 220-240VAC Maximum running current(A) Wiring size(mm 0.75 Control port signal type Type 2 a) Procedure Connect the cable to the appropriate terminals as shown in the picture.
- Page 37 internal backup heater (IBH) 6) For room thermostat: Room thermostat (Low voltage) : "POWER IN" provide the voltage to the RT. NOTE IBH1 CN11 The room thermostat must low voltage. Room thermostat (Low voltage): CN24 CN28 CN23 Power supply CN13 CN37 CN15 7 5 3 1...
- Page 38 C.2 When unit detect voltage is 12VDC between CL and COM, zone2 turn on according to climate temp curve. When unit CN24 CN28 detect voltage is 0V between CL and COM, zone2 turn off. CN23 C.3 When HT-COM and CL-COM are detected as 0VDC, unit CN13 turn off.
-
Page 39: Start-Up And Configuration
10.3 Failure diagnosis at first installation 10 START-UP AND CONFIGURATION If nothing is displayed on the user interface, it is The unit should be configured by the installer to match the necessary to check for any of the following installation environment (outdoor climate, installed options, etc.) abnormalities before diagnosing possible error codes. - Page 40 10.4.3.2 Wiring CAUTION Do not place the wired remote controller near the lamps, to avoid the remote signal of the X1/HB controller to be disturbed. (refer to the right X/HA Y/HB P Q E1 H1 H2 X2/HA figure) Hydraulic module 10.4.2 Other Precautions Wired Controller A+ B-...
-
Page 41: Field Settings
Screw hole installed on the Putty Putty three M4X20 Putty Trap Trap Trap Screw hole installed on 86 Electrician box, use two M4X25 Avoid the water enter into the wired remote controller, use trap and putty to seal the connectors of wires during wiring installation. -
Page 42: Menu Structure: Overview
11 MENU STRUCTURE : OVERVIEW MENU OPERATION MODE HEAT OPERATION MODE COOL PRESET TEMPERATURE AUTO SCHEDULE OPTIONS PRESET TEMPERATURE CHILD LOCK PRESET TEMP. SERVICE INFORMATION WEATHER TEMP. SET OPERATION PARAMETER ECO MODE FOR SERVICEMAN WLAN SETTING SCHEDULE SN VIEW TIMER WEEKLY SCHEDULE SILENT MODE SCHEDULE CHECK... - Page 43 FOR SERVICEMAN 1 DHW MODE SETTING 2 COOL MODE SETTING 3 HEAT MODE SETTING 7 OTHER HEATING SOURCE 4 AUTO MODE SETTING 7.1 IBH FUNCTION 5 TEMP. TYPE SETTING 6 ROOM THERMOSTAT 7.2 IBH LOCATE 7.3 dT1_IBH_ON 7 OTHER HEATING SOURECE 8 HOLIDAY AWAY SETTING 7.4 t_IBH_DELAY 8 HOLIDAY AWAY SETTING...
-
Page 44: Setting Parameters
11.1 Setting parameters The parameters related to this chapter are shown in the table below. Order Unit Code State Default number COOL MODE Enable or disable the cooling mode:0=NON,1=YES t_T4_FRESH_C The refresh time of climate related curves for cooling mode hours T4CMAX The highest ambient operation temperature for cooling mode... - Page 45 Order Code State Default Unit number Room thermostat type : 0=NON,1=MODESET,2=ONE ZONE ROOM THERMOSTAT 3=DOUBLE ZONE Select the priority mode in ROOM THERMOSTAT： MODE SET PRIORITY 0=HEAT,1=COOL Select the mode that IBH（BACKUP HEATER） can run： 0（DHW=valid） IBH FUNCTION 0=HEAT+DHW,1=HEAT 1（DHW=invalid） IBH LOCATE The installation location of IBH（PIPE LOOP=0）...
- Page 46 Order Code State Default Unit number The present START DATE The start date of floor drying up d/m/y date AUTO RESTART Enable or disable the auto restart cooling/heating 13.1 COOL/HEAT MODE mode. 0=NON,1=YES POWER INPUT 14.1 The type of power input limitation LIMITATION Define the function of the M1M2 switch：0= REMOTE 15.1...
-
Page 47: Final Checks And Test Run
12 FINAL CHECKS AND TEST RUN Press ▼ ▲ to scroll to the components you want to check The installer is obliged to verify correct operation of unit and press after installation. 12.1 Final checks CAUTION Before switching on the unit, read following recommendations: Before using POINT CHECK, make sure that the water system is filled with water, and air is When the installation and parameter setting are... -
Page 48: Maintenance And Service
11 TEST RUN Press to scroll the cursor to YES and press . The TEST RUN IS ON. test run will turn off. COOL MODE IS ON. 11 TEST RUN(AIR PURGE) LEAVING WATER TEMPERATURE IS 15°C. AIR PURGE PUMPI OUTPUT AIR PURGE RUNNING TIME 20min CONFIRM... -
Page 49: Troubleshooting
The following checks must be performed at least once a year by qualified person. Water pressure -Check the water pressure, if it is below 1 bar,fill water to the system. Water filter -Clean the water filter. Water pressure relief valve -Check for correct operation of the pressure relief valve by turning the black knob on the valve counter-clockwise: If you do not hear a clacking sound, contact your local dealer. -
Page 50: General Symptoms
14.2 General symptoms Symptom 1: The unit is turned on but the unit is not heating or cooling as expected CORRECTIVE ACTION POSSIBLE CAUSES Check the parameters (T4HMAX, T4HMIN in heating mode; T4CMAX, T4CMIN The temperature setting is not correct. in cooling mode). - Page 51 Symptom 6: Space heating capacity shortage at low outdoor temperatures POSSIBLE CAUSES CORRECTIVE ACTION • Check if that the "OTHER HEATING SOURCE/ IBH FUNCTION" is enabled. Backup heater operation • Check whether or not the thermal protector of the backup heater has been is not activated.
-
Page 52: Error Codes
14.3 Error codes A series of error codes and corresponding meaning can be found in the table below. Reset the unit by turning the unit ON or OFF. If Resetting the unit is invalid, contact your local dealer. UPPER UNIT ERROR MALFUNCTION UPPER UNIT... - Page 53 UPPER UNIT ERROR MALFUNCTION DISPLAY No. CODE OR PROTECTION High temperature protection of air side heat exchanger temperature(T3). High temperature protection of inverter module DC bus low voltage protection Inverter or compressor protection DC bus low voltage protection. DC bus high voltage protection Current sampling error of PFC circuit...
-
Page 54: Technical Specifications
15 TECHNICAL SPECIFICATIONS 15.1 General 1-phase 3-phase 1-phase Model 5/7/9 kW 12/14/16 kW 12/14/16 kW Nominal capacity Refer to the Technical Data Dimensions HxWxD 865×1040×410mm 865×1040×410mm 865×1040×410mm Packing Dimensions 970×1190×560mm 970×1190×560mm 970×1190×560mm HxWxD Weight Net weight 87kg 106kg 120kg Gross weight 103kg 122kg 136kg... -
Page 55: Information Servicing
16 INFORMATION SERVICING 1) Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minmised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 56 10) Repairs to sealed components a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 57 16) Charging procedures In addition to conventional charging procedures, the following requirements shall be followed: Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. Cylinders shall be kept upright.
- Page 58 Water outlet Water inlet ⑨ ⑩ ⑨ ④ ③ ⑦ ② ⑥ ⑧ ① ⑤ Cooling Heating Description Description Item Item Compressor Plate heat exchanger Discharge temperature sensor Gas refrigerant temperature sensor High pressure switch Pressure sensor 4-way valve Suction temperature sensor Ambient temperature sensor Low pressure switch Air side heat exchanger...
- Page 59 ANNEX B: To install the E-heating tape at the drainage outlet (by client) Connect the heating tape wire at the drainage outlet to the wire joint XT3. To the heating tape of drainage outlet The picture is for reference only, please refer to the actual product. The power of the E-heating tape shall not exceed 40W/200mA, supply voltage 230VAC.
- Page 60 NOTE...
- Page 64 MAIN OFFICE MADRID Blasco de Garay, 4-6 Senda Galiana, 1 08960 Sant Just Desvern Polígono Industrial Coslada (Barcelona) Coslada (Madrid) Tel.+ 34 93 480 33 22 Tel. +34 91 669 97 01 http://www.frigicoll.es/ Fax. +34 91 674 21 00 http://www.kaysun.es/en/ madrid@frigicoll.es...
