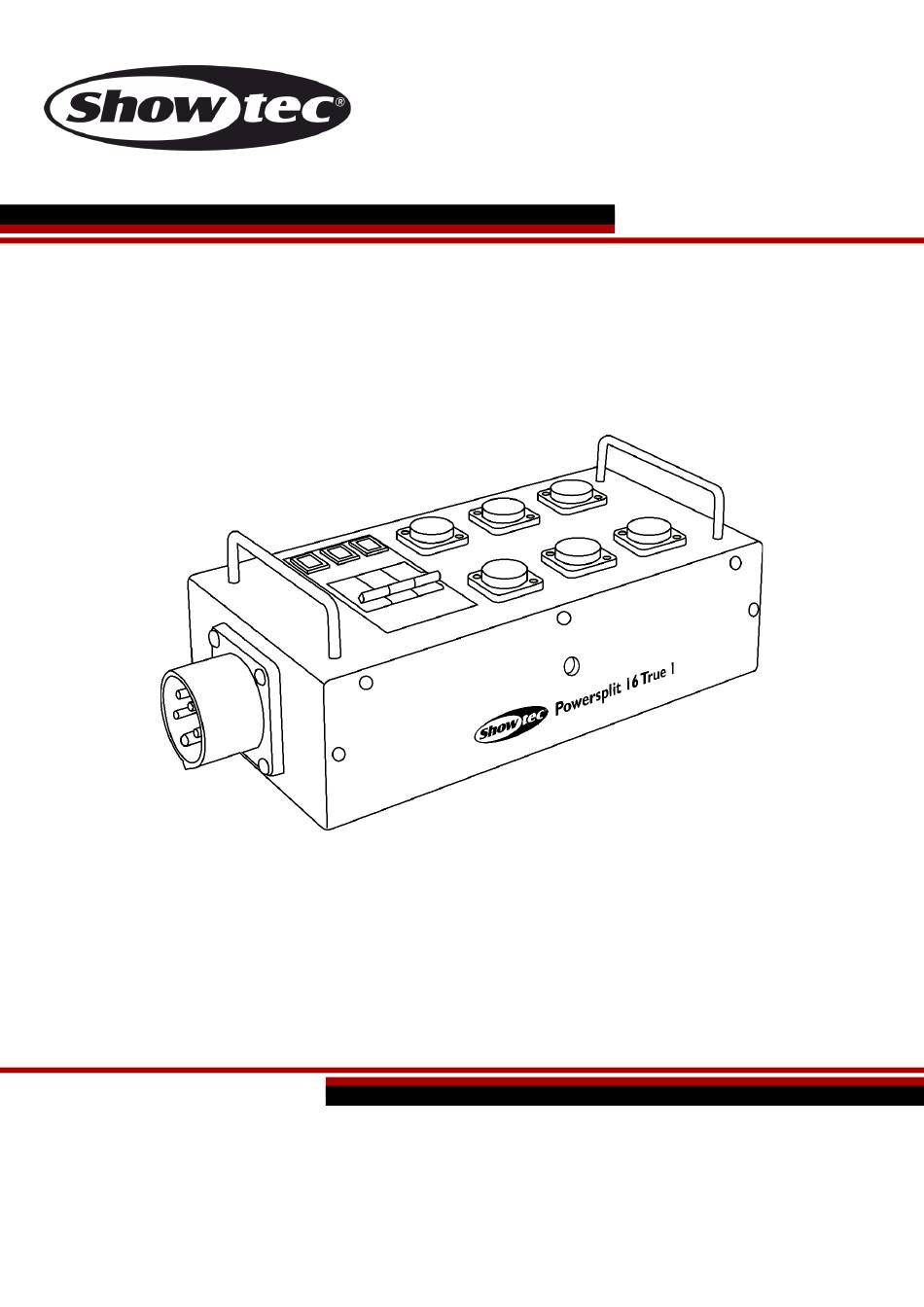

- Page 1 MANUAL ENGLISH Powersplit 16 True1 Product code: 91135 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Powersplit 16 True1 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Connection with the Three Phase Power Network ....................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Side .................................... -
Page 3: Warning
Your shipment includes: ● Showtec Powersplit 16 True1 ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... -
Page 4: Operating Determinations
● If your Showtec device fails to work properly, discontinue use immediately. Pack the device securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Connection With The Three Phase Power Network
Powersplit 16 True1 Connection with the Three Phase Power Network Connect the device to the 3-phase Power Socket with a CEE-form power-plug. Always make sure that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN BLACK... -
Page 6: Description Of The Device
Powersplit 16 True1 Description of the device Features The Showtec Powersplit 16 True1 is a professional power splitter. ● MCB pins: 2 ● MCB class: B ● MCB rated current: 16 A ● Rated current: 16 A ● Power connector IN/OUT: 5-pin 16 A CEE ●... -
Page 7: Side
Powersplit 16 True1 Side Fig. 02 04) 16 A CEE power IN Connect to the three phase mains. Make sure that the total load connected to the Powersplit does not exceed 16 A per phase. The CEE input should be connected to the power source which is equipped with its own RCCB protection. -
Page 8: Setup And Operation
01) If the device does not operate properly, unplug the device. 02) Check power from the wall and all cables. 03) Plug the device in again. 04) If nothing happens after 30 seconds, unplug the device. 05) Return the device to your Showtec dealer. Product code: 91135... -
Page 9: Product Specifications
Powersplit 16 True1 Product Specifications Model: Showtec Powersplit 16 True1 Dimensions: 412 x 162 x 125 mm (LxWxH) Weight: 3,5 kg Operation Input: 5-pin 16 A CEE Output: 5-pin 16 A CEE, 6 x Pro power True1 MCB pins: MCB class:... -
Page 10: Notes
Powersplit 16 True1 Notes Product code: 91135... - Page 11 Powersplit 16 True1 Product code: 91135...
- Page 12 ©2021 Showtec...
