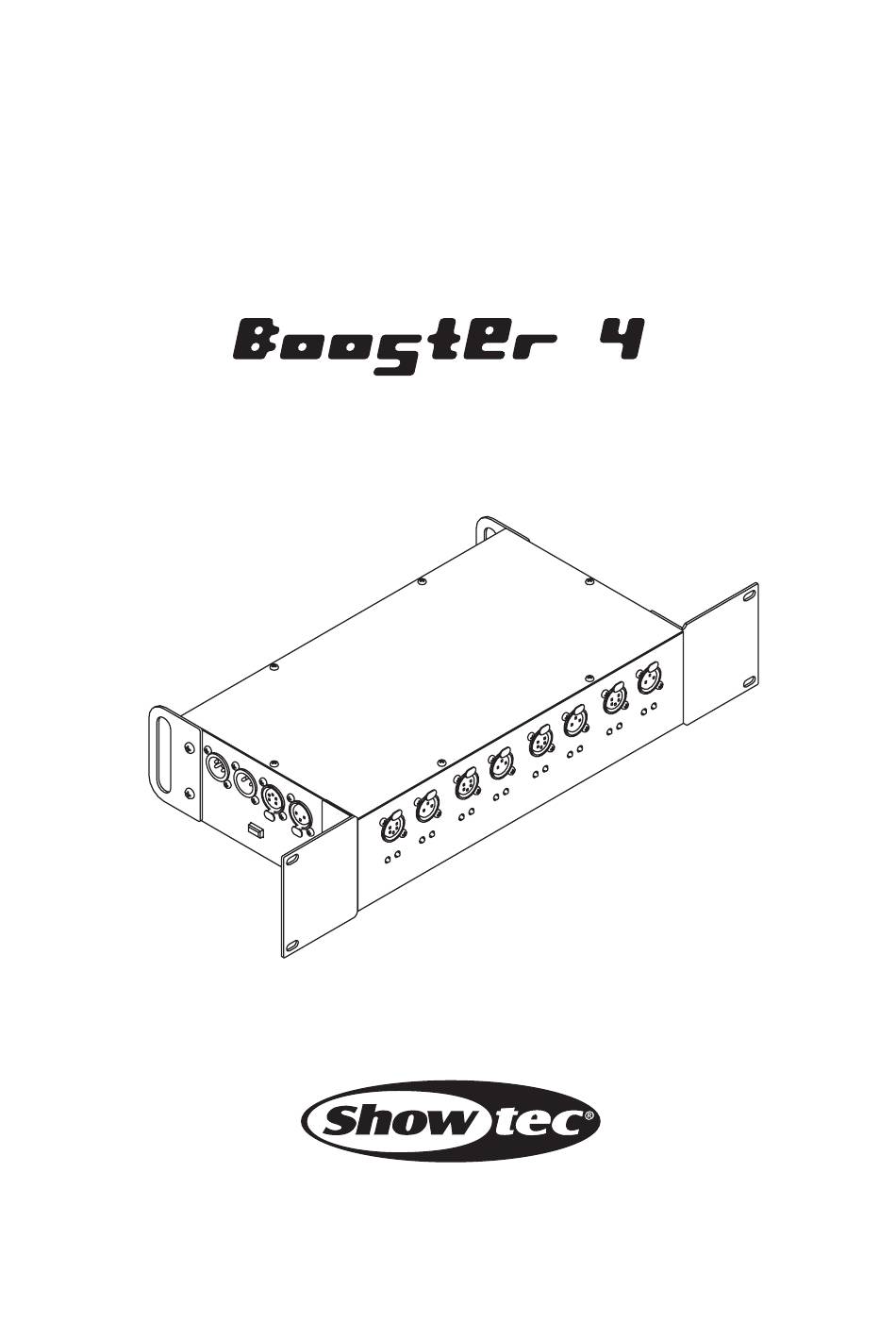

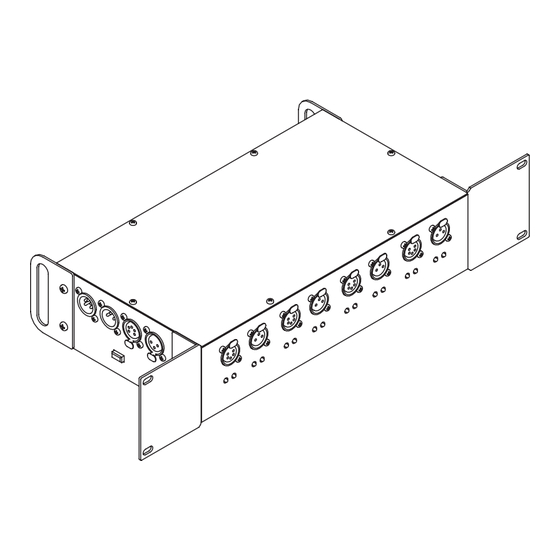

- Page 1 Service Manual DMX BOOSTER / SPLITTER BOM code(26-024-0041-00) Rev1.0 Website:www.highlite.nl E-male sales:slaes@highlite.nl E-mail export:export@highlite.nl...
- Page 2 Complete Exploded View & Parts List...
- Page 3 Physical Dimensions...
- Page 4 Complete Exploded View...
- Page 5 Complete Exploded View Parts List Item part Number Description 22-003-0015-00 Screws 23-150-0030-00 Top Cover 22-001-0037-00 Screws 27-001-0290-00 KIT DD-4 27-001-0534-00 KIT DMX-F DMX SOCKET 5PIN 27-001-0533-00 KIT DMX-M DMX SOCKET 5PIN 27-001-0532-00 KIT DMX-M DMX SOCKET 3PIN 27-001-0531-00 KIT DMX-F DMX Socket 3PIN 20-001-0018-00 Fuse 20-002-0019-00...
- Page 6 PCB Schematic Diagrams...
- Page 12 Bill of Materials for KIT DD-4(27-001-0290-00) Item Part Number Description Location 01-003-0050-00 IC 74HC04 DIP14 01-004-0001-00 Regulator L7805CV 1.5A U3,U7,U9,U18,U23 01-005-0004-00 IC LM339N DIP14 U6,U12,U16,U21 01-005-0008-00 IC SN75176 DIP8 TI U1,U5,U8,U11,U13,U15,U17,U20,U22 01-006-0015-00 IC 6N137 QTC DIP8 U4,U10,U14,U19 02-001-0030-00 CF-Resistance 120 OHM 1/4W 02-001-0038-00 CF-Resistance 330 OHM 1/4W R2,R4-R6,R10-R13,R15-R17,R20-R24,R26- R28,R30-R32,R34,R35...
- Page 13 Schematic Diagram for DMX-F...
- Page 14 Bill of Materials for KIT DMX-F(27-001-0531-00) Item Part Number Description Location 16-001-0121-00Header 2.00mm 3pin 16-001-0210-00XLR 3Pin 18-001-0248-00PCB DMX-F...
- Page 15 Bill of Materials for KIT DMX-F(27-001-0534-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0214-00 XLR 5Pin 18-001-0248-00 PCB DMX-F...
- Page 16 Schematic Diagram for DMX-M...
- Page 17 Bill of Materials for KIT DMX-M(27-001-0532-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0209-00 XLR Chassis Connectors 3Pin 18-001-0249-00 PCB DMX-M...
- Page 18 Bill of Materials for KIT DMX-M(27-001-0533-00) Item Part Number Description Location 16-001-0121-00 Header 2.00mm 3pin 16-001-0213-00 XLR 5Pin 18-001-0249-00 PCB DMX-M...
