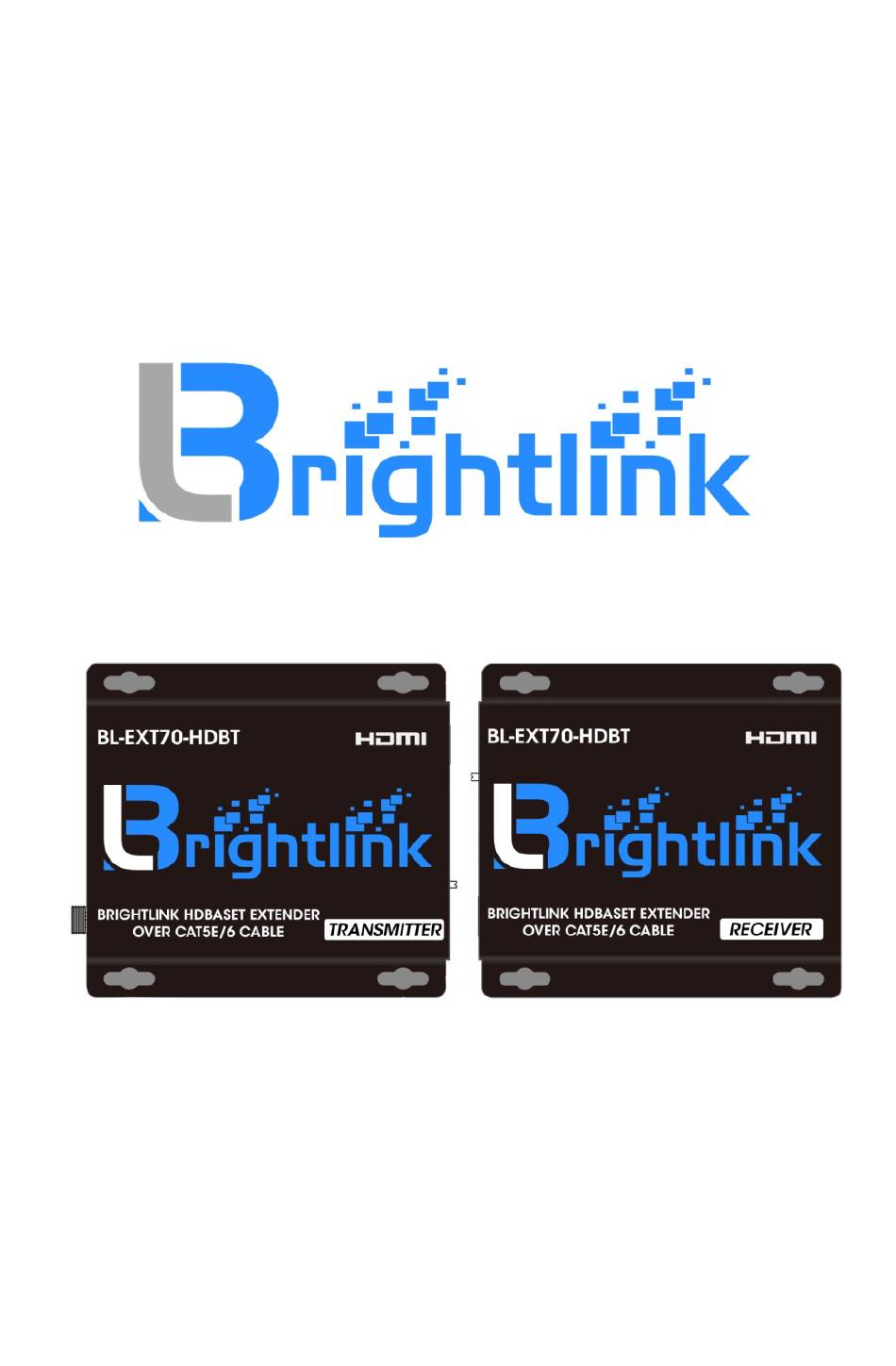

BRIGHTLINK HDBASET EXTENDER OVER
CAT5E/6 CABLE
Model: BL-EXT70-HDBT
Operating Instructions
BRIGHTLINKAV.COM
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
1
Advertisement
Table of Contents
Related Manuals for Brightlink BL-EXT70-HDBT
Summary of Contents for Brightlink BL-EXT70-HDBT
- Page 1 BRIGHTLINK HDBASET EXTENDER OVER CAT5E/6 CABLE Model: BL-EXT70-HDBT Operating Instructions BRIGHTLINKAV.COM Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
- Page 2 FEATURES: One pair as a full functional module, no need for setting. Use single UTP/STP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission. UTP/STP cable termination follows the standard of IEEE-568B. Transmission distance reaches up to 70 meters under ...
- Page 3 Notice Our company reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth.
-
Page 4: Package Contents
4) Connect the IR TX UNIT into BL-EXT70-HDBT-TX IR-Out port; Connect the IR RX UNIT into BL-EXT70-HDBT-RX IR-In port. 5) Connect the IR RX UNIT into BL-EXT70-HDBT-TX IR-In port; Connect the IR TX UNIT into BL-EXT70-HDBT-RX IR-Out port. 6) Phoenix RS232 Port can be set for firmware update or RS232 control signal transmission (Default set for RS232). -
Page 5: Setting Instruction
④ Extract the zipped file from the burn package to a directory (e.g. C:\dir_name). ⑤ Browse to the directory (e.g. C:\dir_name\) and double click the batch file Update Source. bat (for BL-EXT70-HDBT-TX) or Update Sink. bat (for BL-EXT70-HDBT-RX). ⑥ A short description of the link created between the PC and the board appears on the screen, followed by the burn progress percentage report. -
Page 6: Specifications
For RS232 control signal transmission, just connect two RS232 cables to both RS232 ports of BL-EXT70-HDBT-TX and BL-EXT70-HDBT-RX, they work like an RS232 extension cable. Specifications Operating Temperature Range -5 to +35°C (-41 to +95 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5-1.0 volts p-p... - Page 7 Panel Descriptions 1. BL-EXT70-HDBT-TX (Transmitter) Left Panel ① Indicator of HDMI Input. ② HDMI input port. ③ Connect IR RX cable to IR-In port. ④ Connect IR TX cable to IR-Out port. ⑤ Indicator of power Input. ⑥ DC power input.
- Page 8 2. BL-EXT70-HDBT-RX (Receiver) Left Panel ① The switch is for bypassing RS232 signal or for firmware updating. ② Cat5e/6 In. ③ HDBaseT Link indicator. ④ RS232 Input. Right Panel ① Indicator of HDMI Output. ② HDMI output port. ③ Connect IR RX cable to IR-In port.
-
Page 9: Typical Application
Typical Application MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... -
Page 10: Mail-In Service
replace it with a new of a refurbished product. The decision to repair or replace will be made by the warrantor. During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period.
