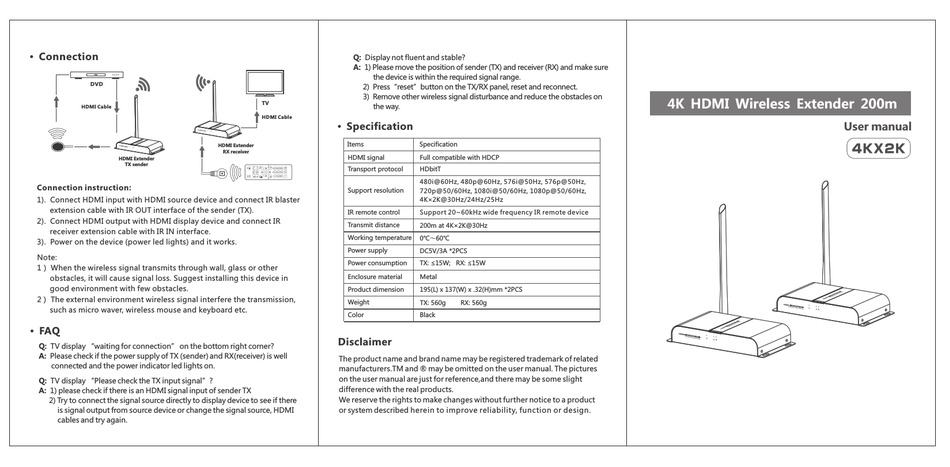

Brightlink BL388A User Manual

• Connection
DVD
HDMI Cable
HDMI Extender
TX sender
Connection instruction:
1). Connect HDMI input with HDMI source device and connect IR blaster
extension cable with IR OUT interface of the sender (TX).
2). Connect HDMI output with HDMI display device and connect IR
receiver extension cable with IR IN interface.
3). Power on the device (power led lights) and it works.
Note:
1） When the wireless signal transmits through wall, glass or other
obstacles, it will cause signal loss. Suggest installing this device in
good environment with few obstacles.
2） The external environment wireless signal interfere the transmission,
such as micro waver, wireless mouse and keyboard etc.
• FAQ
Q: TV display "waiting for connection" on the bottom right corner?
A: Please check if the power supply of TX (sender) and RX(receiver) is well
connected and the power indicator led lights on.
Q: TV display "Please check the TX input signal"?
A: 1) please check if there is an HDMI signal input of sender TX
2) Try to connect the signal source directly to display device to see if there
is signal output from source device or change the signal source, HDMI
cables and try again.
Q: Display not fluent and stable?
A: 1) Please move the position of sender (TX) and receiver (RX) and make sure
the device is within the required signal range.
2) Press"reset"button on the TX/RX panel, reset and reconnect.
3) Remove other wireless signal disturbance and reduce the obstacles on
TV
the way.
HDMI Cable
• Specification
Items
HDMI Extender
RX receiver
HDMI signal
Transport protocol
Support resolution
IR remote control
Transmit distance
Working temperature
Power supply
Power consumption
Enclosure material
Product dimension
Weight
Color
Disclaimer
The product name and brand name may be registered trademark of related
manufacturers.TM and ® may be omitted on the user manual. The pictures
on the user manual are just for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.
Specification
Full compatible with HDCP
HDbitT
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
4K×2K@30Hz/24Hz/25Hz
Support 20~60kHz wide frequency IR remote device
200m at 4K×2K@30Hz
0℃～60℃
DC5V/3A *2PCS
TX: ≤15W; RX: ≤15W
Metal
195(L) x 137(W) x .32(H)mm *2PCS
TX: 560g RX: 560g
Black
4K HDMI Wireless Extender 200m

User manual
