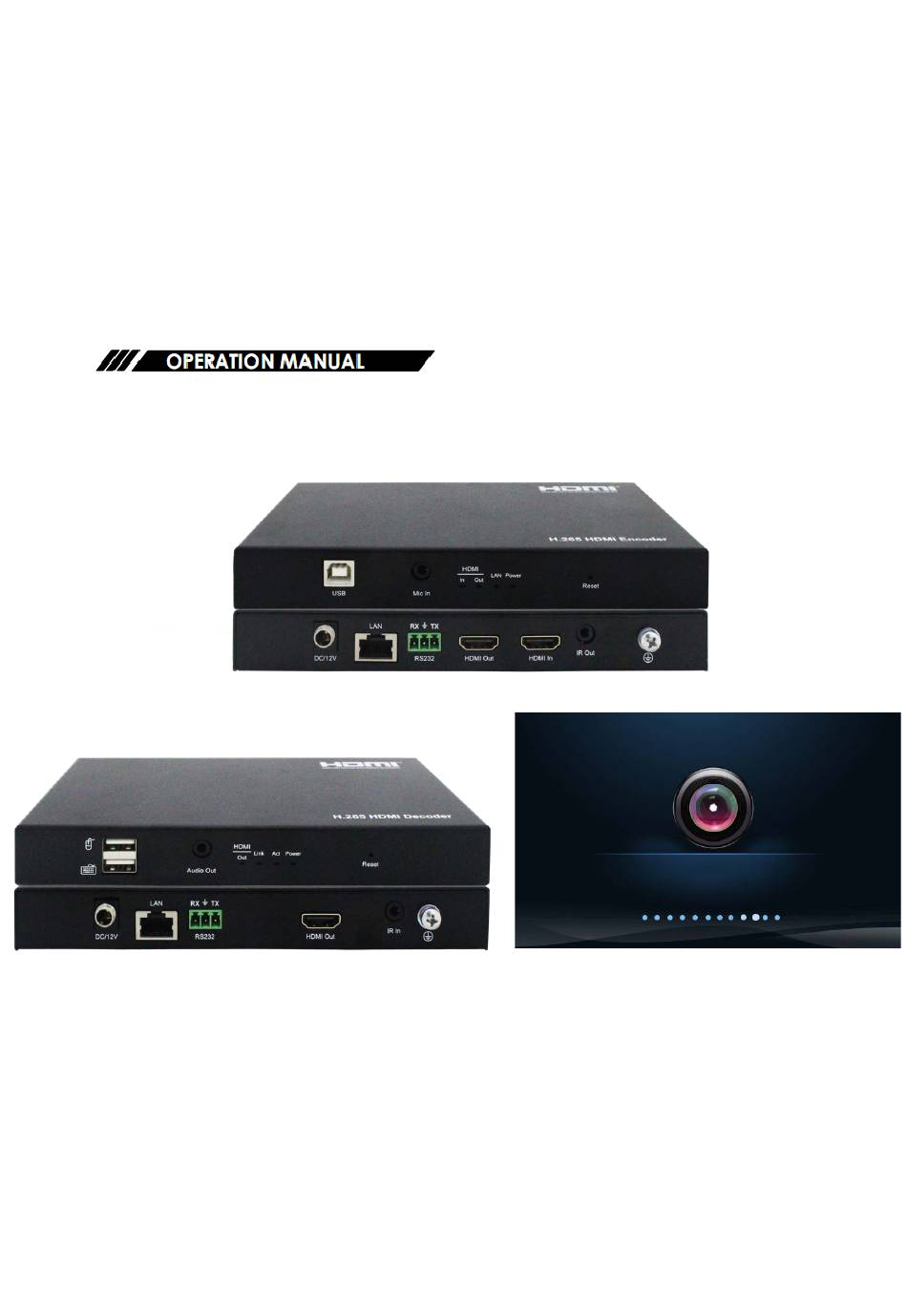

- Page 1 120M H.265 AV over IP Extender work with CMP System Max resolution 4K@30HZ,4:4:4 Support Video Wall, Multi Viewer, Matrix Encoder Decoder...
-
Page 2: Table Of Contents
Operating Instruction Catalogue Dear Customer ............................ 3 1. Features ............................3 2. Specifications ..........................3 3. Package Contents ..........................3 4. Panel Descriptions ........................... 4 4.1. Encoder: ..........................4 4.2. Decoder: ..........................4 5. Application: ............................. 5 6. CMP System: ..........................5 6.1. -
Page 3: Dear Customer
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features Ø Compression Technology: H.265 Ø... -
Page 4: Panel Descriptions
Operating Instruction 4. Panel Descriptions 4.1. Encoder: ① USB Type B input ② Analog Input ③ Indicator of HDMI; LAN; Power ④ Reset button ⑤ DC/12V input ⑥ Cat5/6 output ⑦ RS232 pass through ⑧ HDMI Loop output ⑨ HDMI Input ⑩... -
Page 5: Application
Operating Instruction 5. Application: CMP System: 6.1. Installation process description: Before connecting the product, copy "CMP plate-setup" from the CD, double-click the software in the installation package to run, and install the platform on the computer. Take Win7 operating system as an example, the installation process is as follows CMP (P1) - Page 6 Operating Instruction CMP (P2) CMP (P3)
- Page 7 Operating Instruction CMP (P4) CMP (P5)
-
Page 8: Registration And Login Platform
Operating Instruction 6.2. Registration and login platform 6.2.1. Registration Double-click the mouse to open imp-1000 integrated management platform, and the registration window will pop up when it is opened for the first time.Enter username, password, confirmation password, and any questions and answers.To retrieve the password if you forget. 6.2.2. -
Page 9: Retrieve The Password
Operating Instruction 6.2.3. Retrieve the Password If you enter a wrong password or forget your password in the login interface, the system will automatically pop up a prompt to retrieve your password. You can enter the password retrieval interface, enter the answer to the question you filled in during registration, and reset your password. 6.2.4. -
Page 10: Add Device Instruction
Operating Instruction 6.3. Add Device Instruction According to the above diagram, connect the products to the switch. And the router LAN port is connected to the switch through the network cable. And the network property IPV4 is set as automatic acquisition. Because the product default DHCP is ON, the router DHCP address pool can automatically assign IP addresses to the product and computer. -
Page 11: Specific Steps
Operating Instruction 6.3.1. Specific steps 3.1 Open the software of the control platform, enter the account and password, enter the verification into the main interface, and click "Add Device" with the mouse. Quick add: Click refresh key will automatically search all product IP address in LAN Manually add: Enter known IP address, protocol (TX/RX), port, default username/password admin. - Page 12 Operating Instruction...
- Page 13 When the device is restarted or reassigned to a new IP address, the original IP address will be temporarily invalid (reassigned to a new IP address requires the device to be added), and the platform will indicate that the device is not online with a dialog box and online status, gray means not online, and green means online 3.2 Edit: Operating Instruction...
- Page 14 In Edit page, device parameters can be configured. 3.2.1 After each device was set, click “View or Edit the Information of Other Devices” to return, and select other devices for parameter setting. 3.2.2 Edit device Name, Edit Device Address, Edit Device Port Number, Edit Device Password (the default user name/password of all devices is admin), change the password of the login device, and it will take effect immediately after it is confirmed.The above change function is only used for the platform when the device is manually added, the parameter error can be quickly modified here, and...
- Page 15 3.2.4 Edit Network Configuration 1. UDP port, RTSP port, Auto get IP address, IP address, Sub-net mask, Gateway and Domain name server can be implemented in the network configuration. Once the network configuration is modified, need manually restart of the device to take effect. 2.
- Page 16 3.2.5 Video Configuration In video configuration, the parameters of the main and sub streams can be set as shown in the figure.Once the parameter modification is confirmed, it can take effect immediately Note: these Settings are valid only if the encoding type is set to h.264. Operating Instruction...
- Page 17 3.2.6 Audio Configuration 3.2.7 OSD Configuration Operating Instruction...
- Page 18 3.2.8 System Status 3.2.9 Password Configuration Operating Instruction...
- Page 19 1. The default password for communication between platform and device is admin 2. After the device password is changed, the connection between the platform and the device will go offline 3. Return to the device function panel, select the login device password input, enter the newly modified password to enter confirmation 4.
- Page 20 3.3.2 Upgrade Device Select the path to find the upgrade file (bin format) and complete the software upgrade after confirmation.The platform upgrade device will not change the previous parameter configuration. Successful upgrade will be prompted and restart. Operating Instruction...
-
Page 21: User Management Instruction
6.4. User Management Instruction: Access to user accounts and permissions through the function panel, you can create accounts, edit or delete user accounts, set account permissions, edit account password 6.4.1. Create Account: Super administrators can create other administrators or operators and set permissions as needed.To login to the created account, you must either logout of the current user or switch the user to the login screen in the upper right corner of the screen. - Page 22 Operating Instruction...
-
Page 23: Live Preview Instruction
6.5. Live Preview Instruction: The Live Preview can monitor the input signal source image in real time, so that it can be used as a monitoring function. Live Preview area: can accommodate 1-100 groups of signal source devices access and view at the same time (with one key to close all and full screen) Each group of devices can select the following functions by right mouse button: 1. - Page 24 Operating Instruction...
-
Page 25: Basic Instruction
6.6. Basic Instruction: 6.6.1. Select Language: The platform supports switching between Chinese and English. If the switching is completed, the platform needs to be restarted. 6.6.2. OSD Switch: For large screen segmentation, large screen splicing, matrix configuration to find RX IP address and other information, in order to quickly operate the configuration. -
Page 26: Video Scheme Instruction
6.7. Video Scheme Instruction: 6.7.1. Matrix Configuration Before use RX with the platform. Set up the matrix configuration on the platform. Many-to-many or one-to-many can be preset as video matrix. Factory default OSD interface is as follows: The current software version information, RX IP address and RX MAC address are displayed in the light blue background Specific steps are as follows: 1. -
Page 27: Screen Divide
6.7.2. Screen Divide: Large screen divide means that multiple groups of signal sources are displayed in one screen. See the example image below： 1). Each group of video sources is presented as a sub stream within the large screen divide. 2). -
Page 28: Screen Splice
Specific steps are as follows: 1) open the CMP integrated management platform and enter the main interface of the functional panel; 2) select the "OSD switch" option, check the OSD switch and return to the main interface of the functional panel; 3) select the "Screen Divide"... - Page 29 2). The current maximum support is 9×9 splicing 3). Edge shielding (screen width, screen height, display width and display height) can be set separately for each group of spliced images. Specific steps are as follows: 1) Open the CMP integrated management platform and enter the main interface of the functional panel;...
- Page 30 Operating Instruction...
-
Page 31: Kvm/Ir/Rs232 Configuration
6.7.4. KVM/IR/RS232 configuration: KVM: Devices can be pre-configured one to one, one to many, or many to many when paired with KVM capabilities. Specific operating instructions: 1) open the CMP integrated management platform and enter the main functional interface; 2) select the option of "KVM, infrared and serial port configuration" to enter the interface of KVM, infrared and serial port configuration;... - Page 32 RS232: Operating Instruction...
-
Page 33: Maintenance
MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 34 installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God. 2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".
