PLEASE NOTE: This system was specifically designed to optimize light
uniformity for double-ended lamps. Do not attempt to install any other
wattage lamps into this system. This system is intended for commercial
applications.
THIS SYSTEM WILL OPERATE:
• 1000 watt double-ended grow lamps
CONTENTS
1. EYE HORTILUX® 1000 watt DE HPS grow lamp
2. 120-240V EYE HORTILUX fixture
3. Power cord with either NEMA 5-15 (120V) or NEMA 6-15 (240V)
4. Mounting hardware
5. 3-way control cable splitter (for use with controller, sold separately)
6. 2x interconnect/drop cable, 5 ft (1.5 m) (for use with controller,
sold separately)
READ AND FOLLOW ALL SAFETY INSTRUCTIONS BEFORE INSTALLATION.
WARNING - RISK OF SHOCK - DISCONNECT POWER BEFORE INSTALLING or SERVICING SYSTEM.
WARNING - Do not drape power cords over the reflector to avoid damage to cord.
CAUTION - RISK OF BURN: Do not touch grow lamp or reflector when in operation
or during cool-off period.
• The installation and use of the fixture is the responsibility of the end user. Incorrect use or
installation can lead to injury or death and damage to the fixture and electronic circuitry
and revokes the warranty.
• Always adhere to the applicable electrical code, local rules and regulations when installing
or using the fixture.
• DO NOT open or disassemble the fixture, it contains no serviceable parts inside. Opening
the fixture will void the warranty and can cause electrical shock or electrocution.
• This product may cause interference to radio equipment and should not be installed near
maritime safety communications equipment or other critical navigation or communication
equipment operating between 0.45 - 30 MHz.
• DO NOT use the system when either its lamp or its power cord is damaged. Replace the
power cord only with original certified cords. Contact your local retail store if the power cord
is damaged.
• DO NOT modify cords. Modifications to the cords can lead to unwanted electromagnetic
effects which makes the product not comply with legal requirements.
• Avoid coiled cords. Coiled cords may lead to electromagnetic interference.
• DO NOT use the fixture near flammable, explosive or reactive substances.
• Always install lamp before connecting the fixture to the main power supply.
• Allow 30 minute cool down before handling lamp.
• Allow 30 minute cool down before handling reflector.
• Wear safety glasses and provided glove when installing lamps or servicing the system.
• DO NOT expose any component of this lighting system to condensing humidity, fog or direct
spray to avoid breakage and/or thermal shock.
• Make sure system is properly supported with supporting chains and/or hooks.
• DO NOT pull the cord to unplug the system, pull the plug only.
• DO NOT lift the system by any cords.
• DO NOT hang system by cord.
• DO NOT mount luminaire directly touching any surface (maintain at least 3" from the
top of the luminaire to mounting surface).
• DO NOT operate in ambient temperatures above 95°F/35°C. Note: Maintain the
temperature within the growing space below 86°F/30°C, otherwise ventilation/cooling
system may be required.
• Note: Until the lamp has achieved at least 10 hours of operation, the lamp should never be
turned off sooner than 2 minutes after starting lamp. The lamp may require 10-30 minutes
cooling time before restarting.
• Before you dim or boost your DE lamp, make sure that you run it at nominal value (100%)
for at least 100 hours to stabilize the lamp. Failing to so do may lead to sub-optimal light
levels and premature failure of your lamp.

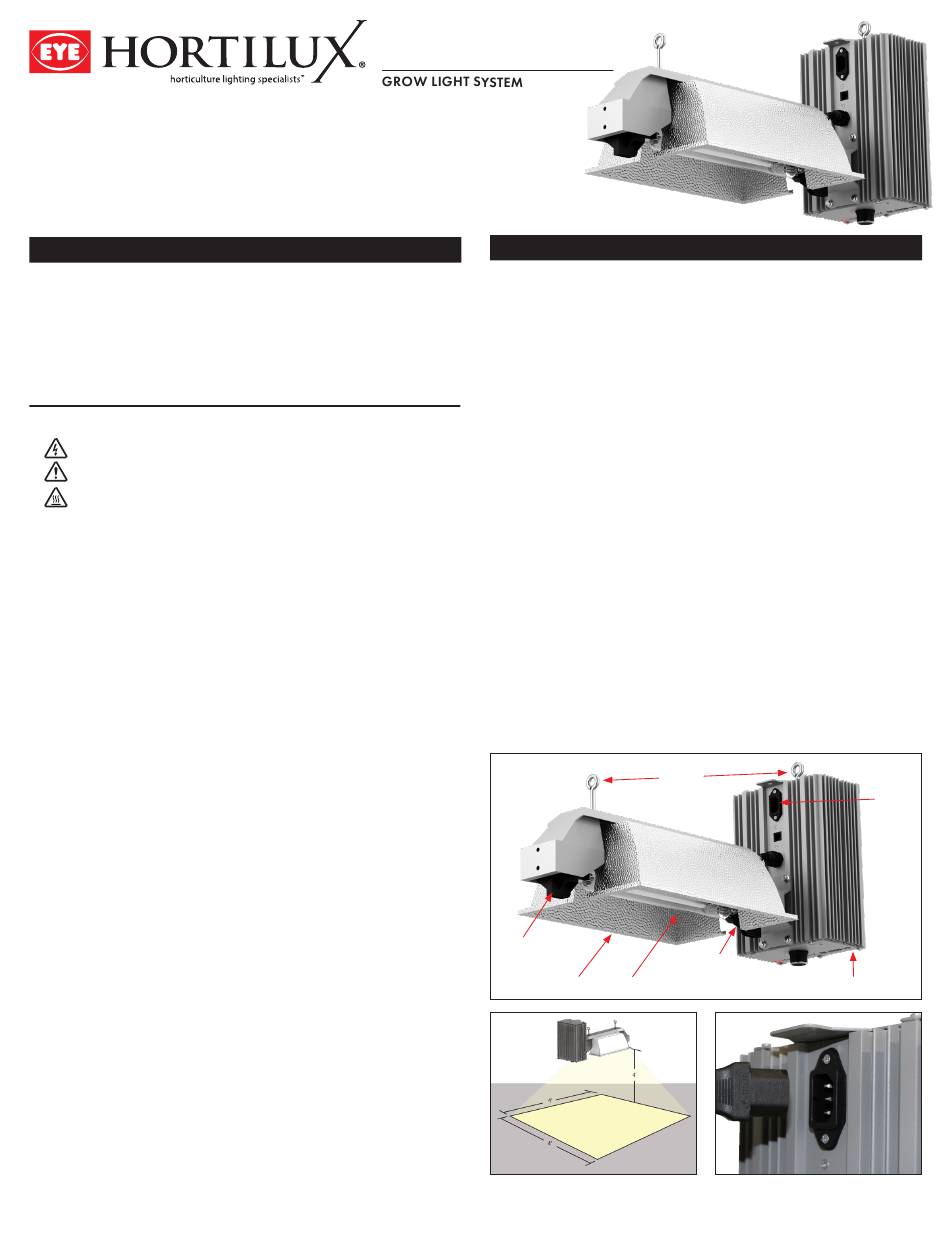

DE 1000-VS
SYSTEM INSTALLATION INSTRUCTIONS
NOTE: Inspect system for defects prior to installation. If defects are
noticed do not install and contact the retail store where purchased.
1. Remove system from packaging.
2. Remove plastic film from reflector.
3. Inspect 1000 watt DE grow lamp for damage. If lamp is
damaged do not install. Inspect outer envelope of lamp - if
lamp shows scratches or cracks, do not install and contact retail
store where purchased.
4. Use fabric glove provided to carefully install the lamp into the
socket. See page 2 for lamp installation instructions.
5. Use mounting hardware suitable for the surface involved, attach
chain. Hardware and chain are to be capable of supporting
100 lbs. Mount system by the hanger eyelets. (Figure 1)
• For optimal performance, position the bottom of the system
48 inches above the plant canopy. (Figure 2)
• For optimal light uniformity, position multiple systems
4 feet apart from one another from lamp center to next
lamp center.
6. Select the proper input power cord that matches your
voltage supply.
7. Switch off main power supply.
8. Plug female end of the input power cord into the ballast. (Figure 3)
9. Plug male end of the input power cord into the electrical outlet.
10. The system is now ready for operation.
11. Switch on main power supply.
(Figure 1)
lamp
socket
reflector
(Figure 2)
eyelets
lamp
socket
lamp
(Figure 3)
canopy
Device complies with Part 18 of the FCC rules.
Visit eyehortilux.com for the latest installation instructions.
input
power
outlet
ballast
EQS4440
