Thank you for purchasing our product.  Carefully read all instructions listed below.  Doing so will ensure years of safe and reliable
operation of this product.
PLEASE NOTE:  During lamp start up you will hear sounds coming from the lamp/ballast.  This is normal for low frequency operation
and is NOT a problem with the lamp or ballast.  Once the lamp warms up to normal operating temperature the sound will be
reduced significantly.
WARNING:
RISK OF ELECTRIC SHOCK
Disconnect  power before inspection, installation or removal
receptacle
 Do not exceed rated input ballast voltage ratings
operating
 Do not attempt to disconnect lamp cord while ballast is operating
Remote output connection shall not exceed 15 feet from ballast to lamp socket
The ballast and associated components must be mounted and wired in accordance with National, State and Municipal Codes.

RISK OF FIRE
Suitable for indoor use only
to‐side, and end‐to‐end distance between other ballasts and/or obstructions.
lamp types S52 or M47 only

_______________________________________________________________________________________
Contents:   Carefully unpack all contents:
1. HORTILUX Platinum Series 1000 Watt Electronic Ballast
2. 120 volt power cord (240 volt sold separately)

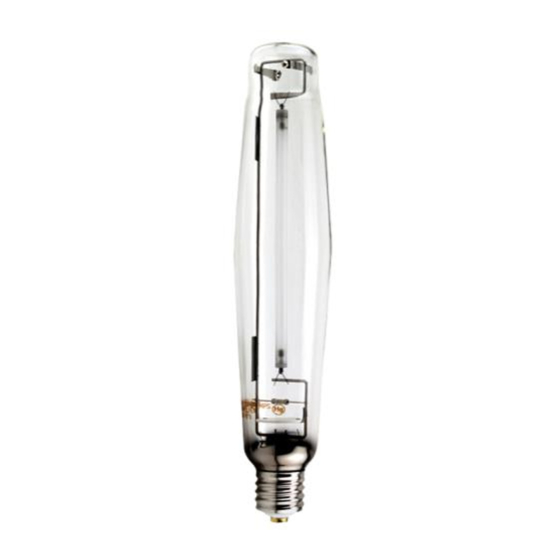

3. HORTILUX LU1000B/HTL/EN lamp
_________________________________________________________________________________

Mounting:   Find a suitable location to locate/mount your HORTILUX Platinum series electronic ballast.
1. This location must be protected against moisture and within 23
2. This location must be within outlet reach for the 6 foot power cord (1.82 Meters).
3. The ballast can be set on a flat surface such as a workbench or floor.
4. Wall mounting Options:
Mounting screws are NOT included; use suitable screws appropriate for the mounting surface and ballast weight
Vertical wall mounting‐ cooling fan MUST face upward with cord sets facing downward for proper airflow
Horizontal wall mounting‐ fan can face left or right
MULTIPLE electronic ballast mounting.  Be sure to space ballasts 8 inches (20.3 cm) apart to allow sufficient
cooling.
New Installation:
1. Determine main power supply you are going to use:
a.
120V (power cord included)
b. 240V (power cord sold separately)
2. Make sure the ON/OFF switch on the electronic ballast is in the OFF position
3. Install your new HORTILUX LU1000 lamp into your reflector/socket
4. Connect the main power cord to your ballast and to a grounded outlet.   (Marked "Input")

 Keep combustible materials away from ballast during operation
 For use only with products having this manufacturer's mating connector (adaptors are available)

 Input power cord shall be plugged into an electrically grounded
 Ensure power cord and lamp cord are properly connected before
 Do not operate ballast without lamp installed
 Use provided 14/3 AWG input power cord only
 Use with a fixture rated for this product
0
0
 to 104
 Fahrenheit  temperature range (‐5
(over)

 Maintain a minimum 8 inches side‐
0
C to 40


 Use with
0
C)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eye Hortilux Platinum Series

  • Page 1   Thank you for purchasing our product.  Carefully read all instructions listed below.  Doing so will ensure years of safe and reliable  operation of this product.    PLEASE NOTE:  During lamp start up you will hear sounds coming from the lamp/ballast.  This is normal for low frequency operation  and is NOT a problem with the lamp or ballast.  Once the lamp warms up to normal operating temperature the sound will be  reduced significantly.     WARNING:    RISK OF ELECTRIC SHOCK   • Disconnect  power before inspection, installation or removal    Input power cord shall be plugged into an electrically grounded  • • receptacle    Do not exceed rated input ballast voltage ratings    Ensure power cord and lamp cord are properly connected before  • • • operating    Do not attempt to disconnect lamp cord while ballast is operating    Do not operate ballast without lamp installed     • • Remote output connection shall not exceed 15 feet from ballast to lamp socket    Use provided 14/3 AWG input power cord only     The ballast and associated components must be mounted and wired in accordance with National, State and Municipal Codes.     RISK OF FIRE   • • Suitable for indoor use only   Keep combustible materials away from ballast during operation   Maintain a minimum 8 inches side‐ • • to‐side, and end‐to‐end distance between other ballasts and/or obstructions.   Use with a fixture rated for this product    Use with ...
  • Page 2   5. Connect the lamp cord (not included) which runs from your reflector/lamp to the electronic ballast (Marked “Output”).   This is the plug just below the ON/OFF switch.  NOTE:  If using a SunSystem  reflector/hood, be sure to connect the plug  “ears” to prevent accidental lamp cord disconnection.  6. Turn ON the electronic ballast.  The lamp should start within several seconds.   Existing Light System Installation:    1. Turn OFF your existing ballast  2. Disconnect power to existing ballast  3. Disconnect the lamp cord that runs from the ballast to your fixture/lamp  4. Follow the instructions listed above for NEW installations  Remote Mounting:  The HORTILUX Platinum series electronic ballast may be installed up to 15 feet away from the reflector/lamp.  Distances greater  than 15 feet may cause potential starting issues that can result in damage to the ballast and/or lamp.  Operating Instruction:    Turn the ON/OFF switch to the ON position to start the lamp.   If using an automatic timer it must be rated for 15 amps.  Troubleshooting:   • This electronic ballast is built with an internal circuit breaker.  If the circuit breaker trips OFF.  Please check for any electrical  problems on your system.  To reset the circuit breaker, cycle the ON/OFF switch ON then OFF to reset the circuit breaker.   Turning the switch ON will restart power to the lamp.    • Metal Halide and High Pressure Sodium lamps may require up to 15 minutes to restart after shutdown.  Please allow  sufficient time for the lamps to cool down prior to restarting.  _____________________________________________________________________________________________________  EYE LIGHTING INTERNATIONAL OF NORTH AMERICA INC. EXCLUSIVE PLATINUM SERIES E‐BALLAST LIMITED  WARRANTY AND EXCLUSIVE REMEDY  The following exclusive limited warranty and remedy shall apply to EYE Lighting International of North America’s HORTILUX™  Platinum Series e‐Ballasts.  EYE Lighting International of North America (“EYE Lighting”) warrants HORTILUX™ Platinum Series e‐Ballasts to be free from defects  in material and workmanship during the period ending five years after the date of sale or, if unknown, after the date of manufacture  provided that such e‐ballasts are operated to Iwasaki Electric and EYE Lighting specifications as written on the Installation Instruction  Sheet within the ballast packaging.  WARRANTY ADMINISTRATION POLICY  1. EYE Lighting International offers this warranty ONLY to purchasers of HORTILUX™ Platinum e‐ballasts who purchased their e‐...
