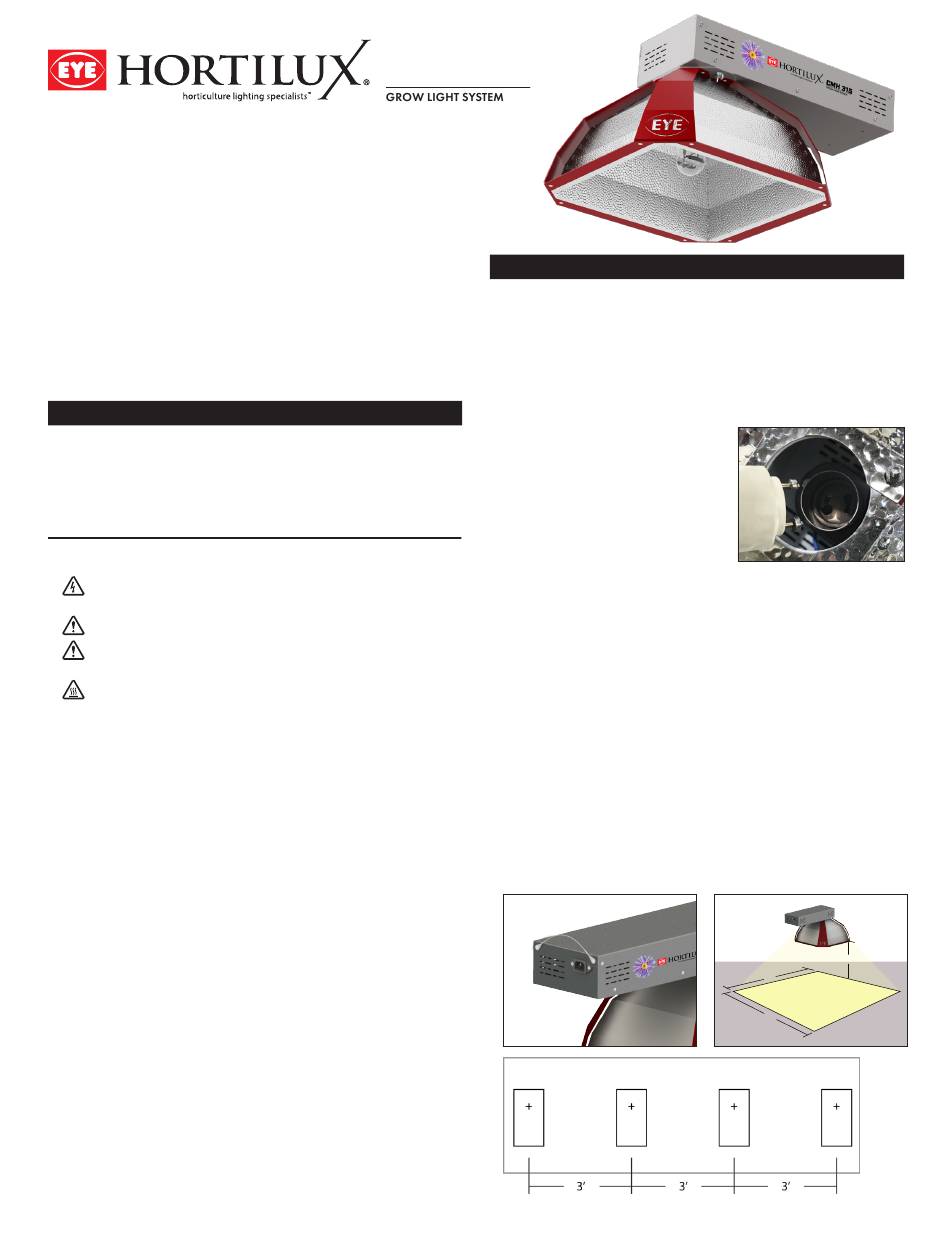

Eye Hortilux CMH 315 Installation Instructions

PLEASE NOTE: This system was specifically designed to optimize light
uniformity for 315 watt lamps. Do not attempt to install any other wattage
lamps into this system. The ballast included with this system only operates
315 watt lamps.
THIS SYSTEM WILL OPERATE:
• 315 watt Ceramic Metal Halide (CMH) grow lamps -
PGZX18 Bi-Pin base
CONTENTS
1. EYE HORTILUX 315 watt Ceramic Metal Halide grow lamp
2. EYE HORTILUX fixture
3. 120 volt power cord
4. 240 volt power cord
READ AND FOLLOW ALL SAFETY INSTRUCTIONS BEFORE INSTALLATION.
• CAUTION – DANGER - RISK OF SHOCK - DISCONNECT POWER BEFORE INSTALLING
or SERVICING SYSTEM.
• CAUTION – DANGER - Do not drape power cords over the reflector.
• CAUTION – Must only operate 315W CMH grow lamps that are rated for "Open" system
operation, ANSI type "O".
• CAUTION - RISK OF BURN: Do not touch grow lamp or reflector when in operation.
• Allow lamp to cool before handling.
• Allow reflector to cool before handling.
• Wear safety glasses and gloves when installing lamps or servicing the system. DO NOT use
the system when either its lamp or its power cord are damaged.
• DO NOT expose any component of this lighting system to contact with liquids to avoid
breakage and/or thermal shock.
• Make sure system is properly supported with supporting chains and/or hooks.
• Keep away from all flammable materials.
• DO NOT pull the cord to unplug the system, pull the plug only.
• DO NOT lift the system by any cords.
• DO NOT expose the system to: condensing humidity, fog or direct spray.
• DO NOT hang system by cord.
• DO NOT mount luminaire directly touching any surface (maintain at least 1" from the
top of the luminaire to mounting surface).
• DO NOT operate in ambient temperatures above 95°F/35°C. Note: Maintain the
temperature within the growing space below 81°F/27°C, otherwise ventilation/cooling
system may be required.
• Note: Until the lamp has achieved at least 10 hours of operation, the lamp should never be
turned off sooner than 2 minutes after starting lamp. The lamp may require 10-30 minutes
cooling time before restarting.
CMH 315
SYSTEM INSTALLATION INSTRUCTIONS
NOTE: Inspect system for defects prior to installation. If defects are
noticed do not install and contact the retail store where purchased.
1. Remove system from packaging.
2. Inspect 315 watt Ceramic Metal Halide grow lamp for damage.
If lamp is damaged do not attempt to install. Inspect outer
envelope of lamp - if lamp shows scratches or cracks, do not
install and contact retail store where purchased.
3. Use a fabric glove to carefully
install the lamp into the socket
by inserting pins into matching
shaped holes in socket and
turning lamp to right (clockwise).
When lamp is properly installed,
the base will stop turning.
(Glove not included)
4. Use mounting hardware suitable for the surface involved, attach
chain. Hardware and chain are to be capable of supporting
100 lbs. Mount system by the Hanger Cords. (Figure 1)
• For optimal performance, position the bottom of the system
36 inches above the plant canopy. (Figure 2)
• For optimal light uniformity, position multiple systems
3 feet apart from one another from lamp center to next
lamp center. (Figure 3)
5. Select the proper input power cord that matches your
voltage supply.
6. Plug socket cord into ballast.
7. Switch off main power supply.
8. Plug female end of the input power cord into the ballast.
9. Plug male end of the input power cord into the electrical outlet.
10. The system is now ready for operation.
11. Switch on main power supply.
(Figure 1)
(Figure 3)
(Figure 2)
3'
3'
3'
EQS4268 r0718
