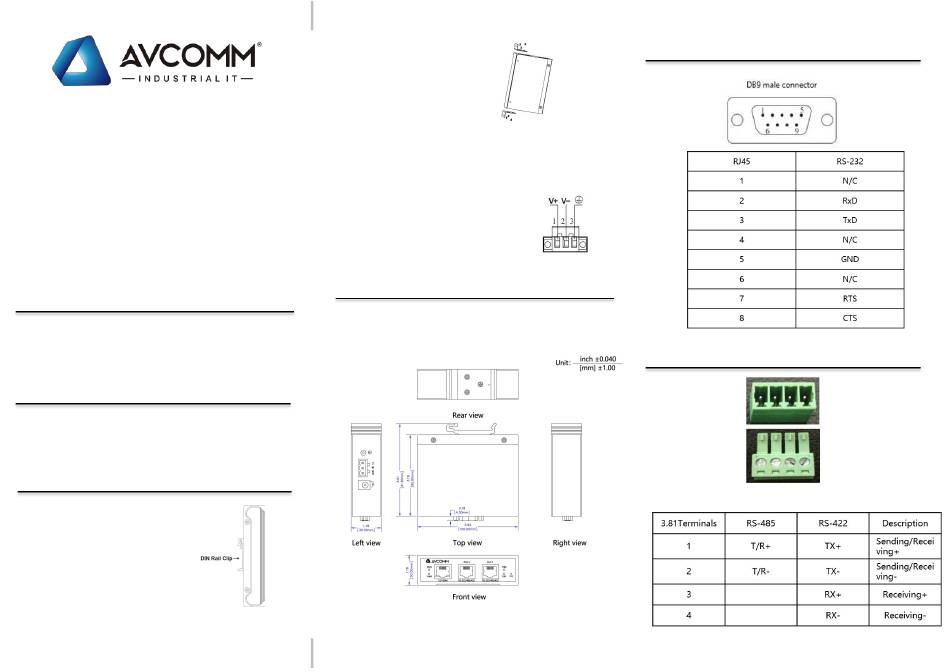

AVCOMM SEVR-M2 Quick Installation Manual

Quick Installation Guide
SEVR-M2
10/100M to 2 Ports RS-232/485/422
Serial Device Server
www.avcomm.us
・Overview
SEVR-M2 device server provides serial port to Ethernet port
function. lt converts RS-232/485/422 port to TCP/IP port, allows
bidirectional data transmission between RS-232/485/422&TCP/IP.
This makes the serial device support TCP/IP function. It supports
IEEE 802.3AF standard, thePOE function greatly extend the
communication of serial devices.
・Package Checklist
• 1 x Product Unit
• 2 x Mounting plate
• 6 x Screw
1 x Quick Installation Guide
•
・Installation
DIN Rail-mounted
To mount the switch on the DIN Rail
t r a c k , i n s e r t t h e u p p e r e n d o f t h e
DI N‐ Rai l c l i p i nt o t he bac k of t he
DIN‐ Rail track from its upper side and
lightly push the bottom of the DIN‐ Rail
clip into the track. The DIN Rail should
comply with DIN EN50022 standard.
Using wrong DIN rail may cause unsafe
installation.
AVCOMM Technologies, Inc
Wall-mounted
T i g h t e n t h e m e t a l
fixation plate by , then
hang the machine with
locked metal strip onto
wall or machine cabinet.
Grounding Screw
For avoiding system damage by noise or electric shock, establish a
direct connection between the grounding screw and the grounding
surface prior to connecting devices.
Wiring the Power Input
1) Insert the positive and negative wires into
the V+ and V- contact on the terminal block
connector.
2) Tighten screws when the wire is connected.
3) Connect the power wires to suitable DC
Switching type power supply.
・Installation dimensions
・SEVR-M2 RS-232 Pin Definitions
・SEVR-M2 Serial Server RS-485/422 Pin Definitions
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
