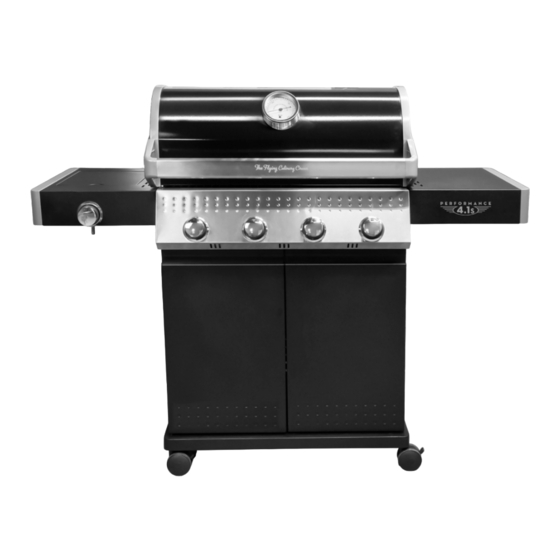

INSTRUCTION MANUAL & MAINTENANCE
FCC-G-18230-41 / GD4843S
!
OUTDOOR USE ONLY
READ THE OPERATING INSTRUCTIONS
BEFORE USING THE APPLIANCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PERFORMANCE 4.1s and is the answer not in the manual?

Questions and answers

Related Manuals for FCCBBQ PERFORMANCE 4.1s

Summary of Contents for FCCBBQ PERFORMANCE 4.1s

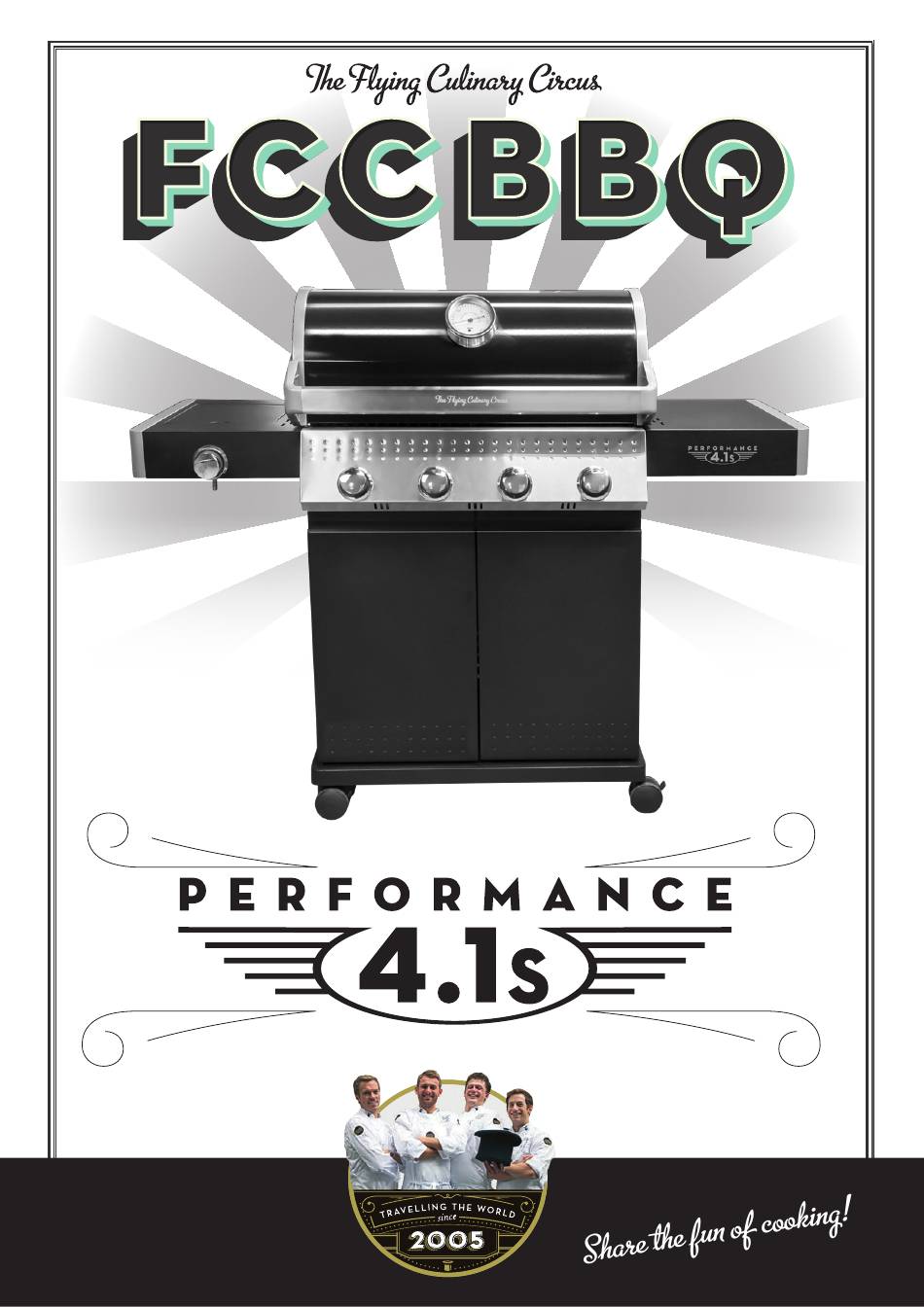

  • Page 1 INSTRUCTION MANUAL & MAINTENANCE FCC-G-18230-41 / GD4843S OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.

  • Page 2: Table Of Contents

    Contents Warnings......................3 Technical data Performance 4.1s ............4 Gas category ....................4 Exploded drawing ..................5 Parts list ......................6 Assembly instructions ................7 Gas leak test ....................14 Regulator and hose ...................15 Last Check ....................16 Lighting instructions................. 17 Warnings ......................18 Maintenance .....................19 Grease fire ....................20 Singapore Chili Crab................21...

  • Page 3: Warnings

    Read carefully WARNINGS • FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS. • THE BBQ IS INTENDED FOR OUTDOOR USE ONLY IN WELL- VENTILATED AREAS. NEVER BBQ IN ENCLOSED SPACES OR UNDER A ROOF, DUE TO THE DANGER OF THE LACK OF OXYGEN.

  • Page 4: Gas Category

    Technical information Height: 120 cm Width: 146 cm Total Heat input: 17.2 kW (main burner 14 kW + side burner 3.2 kW. Gas consumption: 1253 gram/hour (main burner: 1020 g/h + side burner: 233 g/h) Gasbottle (not included): Use standard bottle approved for use in the Nordic Region. Even though butane and propane gas can be used, we recommend propane for use in the Nordic Region.

  • Page 5: Exploded Drawing

    Exploded drawing Please follow these instructions step by step. A screwdriver is necessary when assembling the BBQ. The BBQ should be assembled by two persons. WARNING! EXERCISE CAUTION WHEN USING ELECTRIC TOOLS – THEIR STRENGTH CAN DAMAGE THE SCREWS.

  • Page 6: Parts List

    Parts List CODE DESCRIPTION MAIN BURNER ASSEMBLY FLAME TAMER WARMING RACK CAST IRON GRILL MULTIFUNCTION CAST IRON COOKING GRILL MULTIFUNCTION CAST IRON ROUND COOKING GRILL SIDE BURNER WELD ASSEMBLY IDE BURNER DECORATION BOARD DECORATION RING SIDE BURNER SIDE BURNER VALVE ASSEMBLY SIDE BURNER BRACKET KNOBS ASSEMBLY LEFT SIDE PANEL...
  • Page 7 Assembly 1. To assemble 4 castors (number 30 & 29, 2 with break and 2 without) on the bottom panel, please tighten up the screws. 4PCS 2PCS 2. Use screw A to assemble left side panel (16) and right side panel (32) to the bottom panel(27), and assembly the pivot(B) assembly on the bottom as well.
  • Page 8 Assembly 5PCS 3. Use screw (A) to assemble back panel (24) to left side panel (16) and right side panel (32) and bottom panel (27) 6PCS 4. Firstly use the screw (A) to fix the door girder to the left side side panel (16) and right side panel (32), then use screw (A) to fix the left stator of oil tray (19) on the left side panel (16), use screw (A) to fix the right stator of oil tray (21) to the right side panel (32), shown in the illustration above.
  • Page 9 Assembly 4PCS 5. Use screw A to assemble door pillar (25) to the door girder (22) and bottom assembly (27), shown as the illustration above. 4PCS 6. Use screw A to fix the cabinet divider (17) to the door pillar (25) and back panel (24), shown as shown in illustration above.
  • Page 10 Assembly 4PCS 7. Use screw A to assemble the cabinet stiffening board (23) upper to the door girder (22) and left side weld assembly (16); use the screw to assemble the cabinet stiffening board (23) upper to the door girder (22) and right side weld assembly (32). 8PCS 8.
  • Page 11 Assembly 4PCS 9. Use Screw (A) to fix the main burner assembly (01) upper to the left side shelf assembly (16) and right side shelf assembly (32), shown as below picture. 8PCS 10. Use screw D to assemble the right shelf decoration board (35) on the right shelf (34), use screw D to assemble the left shelf decoration board (10).
  • Page 12 Assembly × 2PCS 11. Use the screw (A) to assemble the foldable right shelf weld assembly to the main burner assembly (01), shown as n the illustration above. 12. Firstly pre-assemble 3pcs screws (M6*16), and fix the left side burner assembly, then use 2pcs screws A to fix the side burner assembly, at the same time to tighten up the preassembly screws, shown as below.
  • Page 13 Assembly 2PCS 13. Use screw D to assemble the side burner valve assembly (13) and decoration ring (11) to the left side burner assembly, and assemble the knobs (15). 2PCS 14. Firstly insert the side burner assembly (12) to the side burner valve assembly (13), and then use the screw D to fix it to the side burner assembly.
  • Page 14 Assembly 15. Put the pot support (14) into the holes of left side burner table. 16. Lay the Flame Tamer (02) into the body.
  • Page 15 Assembly 17. Please put the cast iron grill (04) and multifunction cast iron grill (05) into the firebox, and then the multifunction round cast iron grill (06) into the round opening of the multifunctional cast iron grill (05). 18. Insert warming rack (03) making sure that the tabs on the warming rack fit into the predrilled holes in the firebox.
  • Page 16 Assembly 20. To assemble the shelves (31) upper to the right side shelf (32) and cabinet partition (17) please note that to sideling the shelf before insert inside the cabinet. 21. Assemble the two sets of the door assembly (28) to the cabinet, please note that must insert the holes under the door to the pin, and press the spring catch, then to insert the hole from the door assemble to the spring catch.
  • Page 17 Assembly 22. Hang the single loop end of matchstick holder (33) onto the screw on right firebox. 23. Connect the correct flexible hose to the gas inlet connection. 1) If the gas inlet is a nozzle, plug in the hose and fix it with a clamp firmly. 2) If the gas inlet is a thread type, connect the flexible hose with left thread connector.

  • Page 18: Gas Leak Test

    Gas Leak Testing WARNING ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER THE GAS BOTTLE IS REMOVED OR REPLACED. ALWAYS PERFORM A LEAK TEST IN A WELL-VENTILATED AREA. MAKE A MIXED SOLUTION ( WATER AND LIQUID DETERGENT / SOAP).

  • Page 19: Regulator And Hose

    Regulator and gas hose HOSE Connect the gas hose to the gas rail inlet on the left hand side of the barbecue. Do not overtighten. Do not use any sealing tape, paste or liquid on the connection. Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions.
  • Page 20 Final Check LOCATION Ensure that the BBQ is placed at least 150cm in all directions from house walls, trees, plants and other flammable materials or liquids when in use. Do not place the BBQ under a roof or overhang Ensure the BBQ is placed where there is plenty of ventilation. Do not BBQ below normal ground level.

  • Page 21: Lighting Instructions

    Lighting Instruction MANUAL IGNITION IGNITION You can light the burner 1. Open the lid (lid must always be open manually if the ignition fails. when igniting). Wearing a protective glove. 2. Check that all controls are in the "off" 1. Read instructions before position.

  • Page 22: Warnings

    Read Carefully WARNING • ALWAYS KEEP AN EYE ON THE BBQ WHEN IN USE. NEVER ALLOW CHILDREN OR OTHERS WHO REQUIRE SUPERVISION NEAR THE BBQ WHEN IN USE. • THIS BBQ IS ONLY INTENDED FOR OUTDOOR USE AND MUST NOT BE USED UNDER A ROOF.

  • Page 23: Maintenance

    Maintenance MAINTENANCE INSECTS AND VERMIN After long-term storage, insects and other vermin can Check that the burners are burning be found in the BBQ. If you experience problems with correctly regularly. lighting or irregular flames, it can be due to unwanted Remove the BBQ grate and flame guards.

  • Page 24: Grease Fire

    Grease fire Lack of maintenance may result in a grease fire because old fat and grease takes fire when it reaches high temperatures. PREVENT GREASE FIRE • Clean the BBQ regularly to avoid grease fires. Always, remove residues of grease and food after the BBQ has been used. IN CASE OF GREASE FIRE In case of grease fire, close the gas supply and disconnect the control- ler.

  • Page 25: Singapore Chili Crab

    Recipe CHILI CRAB SINGAPORE CHILI CRAB Start with the sauce. Sauté shallots, ginger, chili and King crab loins split in half garlic with some cooking oil. Add chopped and canned Chinese buns tomatoes along with the sweet chili sauce. Let it simmer Fresh coriander for 5 minutes.
  • Page 26 The Flying Culinary Circus Our story In 2005 four talented young chefs left for New York, asked to cook at an event in Central Park. They enjoyed working together and the guests really appreciated the food. One of the guests was so enthusiastic he booked the four chefs for another event in Los Angeles.

  • Page 27: Troubleshooting

    Trouble Shooting PROBLEM POSSIBLE CAUSE SOLUTION GAS BOTTLE IS EMPTY REPLACE GAS BOTTLE CHECK/REPLACE THE DAMAGED REGULATOR REGULATOR BURNER IS BLOCKED CLEAN THE BURNER CLEAN GAS VENTURY GAS SUPPLY IS BLOCKED OR HOSE ELECTRODE IS BROKEN OR CLEAN THE ELECTRODE BURNER WILL NOT DIRTY LIGHT...

  • Page 28: Consumer Contact

    Consumer contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
