K-Drill IDRL60 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Safety and Usage Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDRL60 and is the answer not in the manual?

Questions and answers

Related Manuals for K-Drill IDRL60

Summary of Contents for K-Drill IDRL60

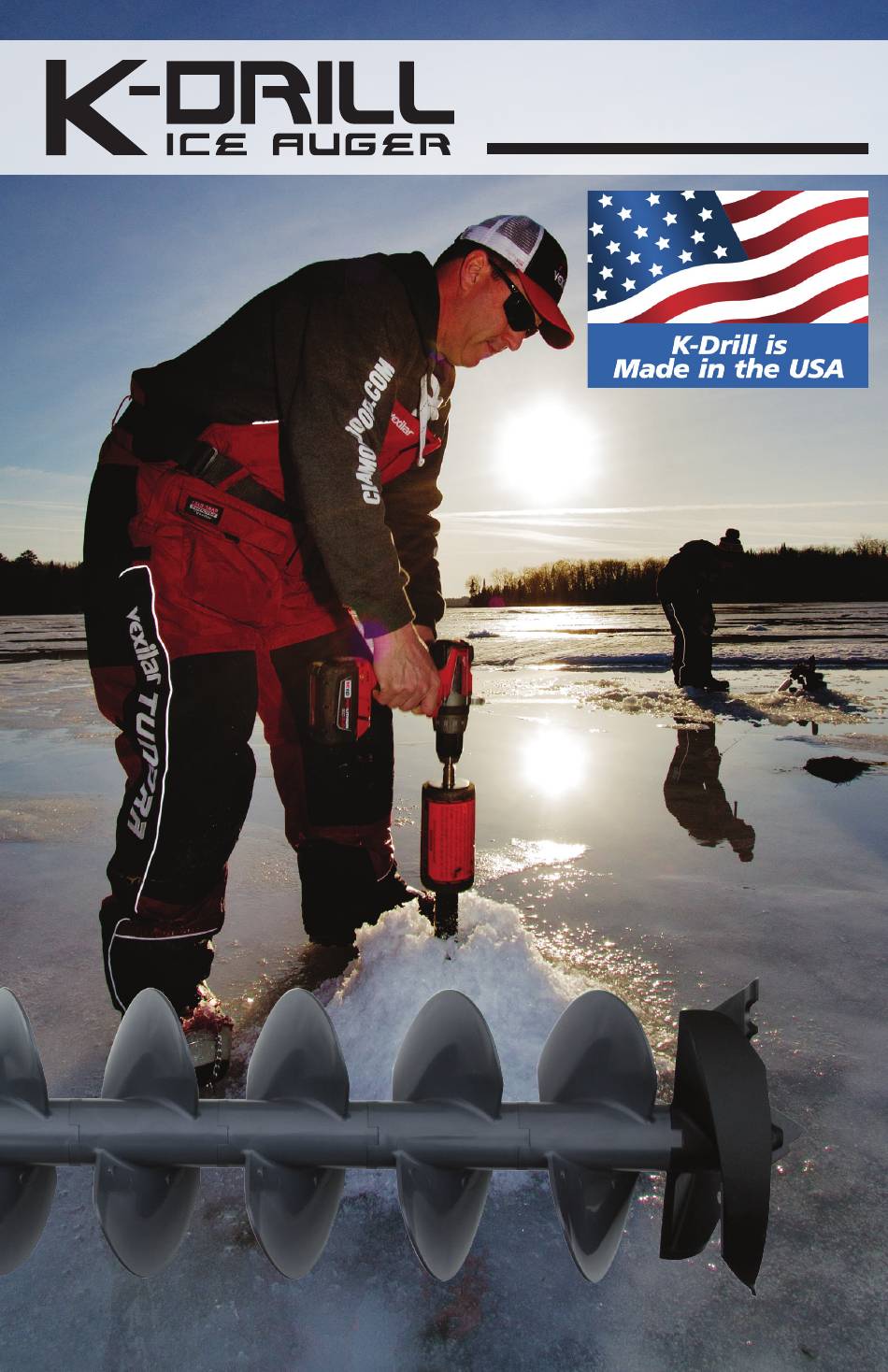

  • Page 1 Owner’s Manual Safety and Usage Information...

  • Page 3: Table Of Contents

    Introducing the K-Drill Ice Auger Efficiency and light weight performance best describes the K-Drill Ice Auger. The 6”, 7.5” and 8.5” K-Drill Ice Augers are all designed to be driven with rechargeable electric drills or gas power heads. The unique center tip and high carbon steel chipper blades allow for quick and clean holes under all ice conditions.
  • Page 4 Drill Drive Adapter (#IDRL28) Safety Float (#IDRLFLT) Thermal Wrap (#LBLA02) Locking Collar (#IDRL19) Modular Flighting (Patent Pending) 6” - #IDRL17 7.5” - #IDRL48 8.5” - #IDRL64 Head Replaceable Blade Set Each set uses two chipper blades and one center tip blade. 6”...

  • Page 5: Drill Setup

    IMPORTANT - At the end of the ice fishing season, before storing for summer, please spray WD-40 on the blades. This simple maintenance prevents rusting during storage. Also, K-Drill offers free blade sharpening. See page 9 for details. CAUTION - Always place protective cover over blades when not drilling.

  • Page 6: Drilling Ice Holes

    IMPORTANT: At no time is it safe to insert the K-Drill into the chuck and power-up the drill to tighten it onto the shaft. The same also holds true of removing the K-Drill from the chuck. Do it manually for your own safety and the safety of others.

  • Page 7: Redrilling Holes

    Owner’s Manual Redrilling of Holes in the Ice Before explaining how to re-drill an old hole you must first understand how an existing hole refreezes. 1) It will begin refreezing from the top and outside edges 2) As it continues to freeze, the ice will continue thickening in from the sides with more ice at the top of the hole than the bottom 3) Given enough time and the right freezing conditions the hole would become a solid water...

  • Page 8: Safety & Usage Tips

    Sharpening as long as the blades remain within specifications. Free Lifetime Blade Sharpening does NOT cover negligence or misuse. If you have problems or have a defective K-Drill, DO NOT return it to the retailer. Contact K-Drill directly for all warranty issues.
  • Page 9 New Stem Stripped Stem Storage & Maintenance Make sure to store the K-Drill auger in a safe location, and out of reach of children and animals. MAKE SURE THE SAFETY COVER IS IN PLACE DURING STORAGE! At the end of the ice fishing season before storing for summer, spray WD-40 on the...

  • Page 10: Replacing The Blades

    6) Torque bolt of center tip to 115 in/lbs. K-Drill Extension Installation The standard K-Drill can drill through up to 36” of ice. The K-Drill extension can be added for thicker ice conditions. Extensions can be “stacked” if needed to create a very long ice auger.

  • Page 11: Free Lifetime Sharpening

    Owner’s Manual Free Lifetime Blade Sharpening K-Drill blade sharpening is FREE for the life of the product unless the blades have been abused by drilling into rock, gravel, sand, etc., or until the blades can no longer be sharpened. Refer to the warranty policy at the back of this manual.

  • Page 12: Parts & Accessories

    Parts and Accessories To purchase other parts and accessories for the K-Drill Ice Auger Systems please contact K-Drill customer service at 952-224-3649 or visit kdrillauger.com to place an order online. Replacement Parts IDRLBL60: 6” Replacement Blades (Set of 3 blades) IDRLBL75: 7.5”...

  • Page 13: Cordless Drill Requirements

    5) 500-750 RPM with a minimum of 725 in/lbs of torque (or higher) Most of the Milwaukee M18 fuel series and most DeWalt MX XR series can be used with the K-Drill. Before you buy, please visit kdrillauger.com to see a complete list of specifically approved and tested drill models.
  • Page 14 Wear Truckers Cap 2-tone grey and black with Hoody Sweatshirt K-Drill embroidered logo, mesh top with snap back. Our charcoal K-drill hoodies #KAP002 are definitely one of the • Grey / Black heaviest and warmest • Mesh top hoodies around. • Snap back • Screen printed logo •...

  • Page 15: Limited Warranty

    1 Year Limited Warranty from the Date of Purchase For the time period shown, from the date of purchase, K-Drill will, at its option as the exclusive remedy, either repair or replace for the original purchaser, free of charge, any part found, upon examination by K-Drill, to be DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP, except as provided below.
  • Page 16 © 2020 - K-Drill - A Division of AWC, Inc. 6667 West Old Shakopee Road, Suite 102, Bloomington, MN 55438 kdrillauger.com...

This manual is also suitable for:

Idrl75
