IMPORTANT
Please read this manual and follow its instructions carefully.
The words WARNING, CAUTION, and IMPORTANT carry special
meanings and should be carefully reviewed.
WARNING - Failure to read, understand and follow all
warnings and instructions listed could result in serious injury
or death to self or others.
CAUTION - These instructions point out special safety
procedures or precautions that must be followed to avoid
damaging the augers, injuries to self and others.
IMPORTANT - This provides special information to make usage of the
K-Drill easier and important instructions more clear.

Table of Contents

Limited Warranty
MADE IN THE USA
K-Drill Patent #7,946,355
Owner's Manual
2
4
5
6
7
8
10
11
11
13
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDRL24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for K-Drill IDRL24

Summary of Contents for K-Drill IDRL24

  • Page 1: Table Of Contents

    IMPORTANT - This provides special information to make usage of the K-Drill easier and important instructions more clear. Table of Contents Product Introduction...

  • Page 2: Product Introduction

    CAUTION - Always place protective cover over blades when not drilling. Keep the electric drill assembly out of the water. IMPORTANT - At the end of the ice fishing season, before storing for summer, please spray WD-40 on the blades. This simple maintenance prevents rusting during storage. Also, K-Drill offers free blade sharpening. See page 9 for details.

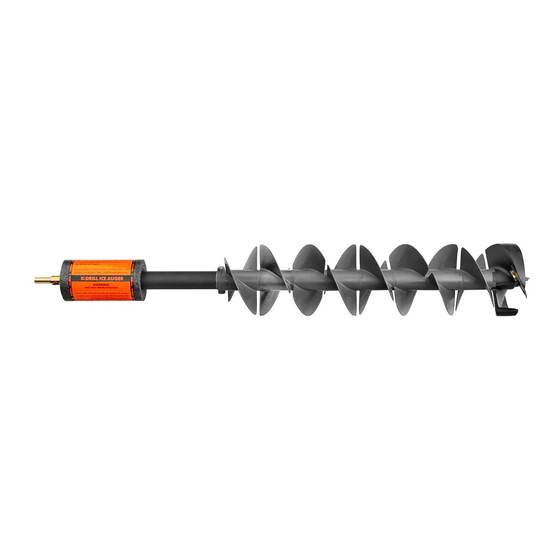

  • Page 3 Safety Float #IDRL26 Aluminum Shaft with Thermal Wrap Modular Flighting (Patent Pending) Head Replaceable Blade Set Each set uses two chipper blades and one center tip blade. #IDRLBL6 - 6” Blade Set #IDRLBL8 - 8” Blade Set Universal Safety Cover #IDRL24...

  • Page 4: Drill Setup

    K-Drill Ice Auger Operation WARNING - You must read and understand the following instructions before you can safely use the K-Drill ice auger. Proper Drill Setup 1) Ensure that you have an adequate drill, meaning a half- inch chuck and at least 725 in/lbs of torque.

  • Page 5: Drilling Ice Holes

    Too much slush in the hole can cause the K-Drill to bind and possibly get stuck in the ice hole. 5) Drill additional holes as needed, THEN put the Blade Protector back onto the auger.

  • Page 6: Safety & Usage Tips

    Safety and Usage Tips • DO NOT use the K-Drill Auger for anything else except for which it is intended-for drilling ice! It was not designed to drill into soil or lumber. • When drilling, keep a firm hold on the drill handle and side-arm. Also maintain proper footing and balance at all times.
  • Page 7 Blade Sharpening of the product unless damaged. Free Lifetime Blade Sharpen- ing does NOT cover negligence and misuse of equipment. • If you have problems or have a defective K-Drill, DO NOT return it to a retail- er. Contact K-Drill directly for all warranty issues.

  • Page 8: Replacing The Blades

    5) Torque bolt of center tip to 115 in/lbs. K-Drill Extension Installation The standard K-Drill can drill through up to 36” of ice. The K-Drill extension can be added for thicker ice conditions. Extensions can be “stacked” if needed to create a very long ice auger.
  • Page 9 Owner’s Manual Free Lifetime Blade Sharpening* *Blade sharpening for the K-Drill is FREE unless the blades have been abused drilling into rock, gravel, sand, etc, or until the blades can no longer be sharpened. READ the warranty policy at the back of this manual.

  • Page 10: Parts & Accessories

    Parts and Accessories To purchase other parts and accessories for the K-Drill Ice Auger Systems please contact K-Drill customer service at 952-224-3649 or visit kdrillauger.com place an order online. Replacement Parts IDRLBL6: 6” Replacement Blades (Set of 3 blades) IDRLBL8: 8”...

  • Page 11: Cordless Drill Requirements

    Owner’s Manual K-Drill Cordless Drill Requirements You can use any cordless drill brand you choose, as long as it meets the following minimum requirements: 1) Side Stabilizer Arm (for a secure two-handed grip) 2) 1/2” Drill Chuck 3) 18 Volt/4 Amp Litium Ion Battery (or higher)
  • Page 12 Check Out Vexilar’s Ice Fishing Today Television Series Hosted by Hall of Fame angler Tom Zenanko, Ice Fishing Today gives you easy access to fun and educational info to help you become a better ice fisherman. You can watch all of the episodes for free online! Plus, there are many more bonus videos that support each show.
