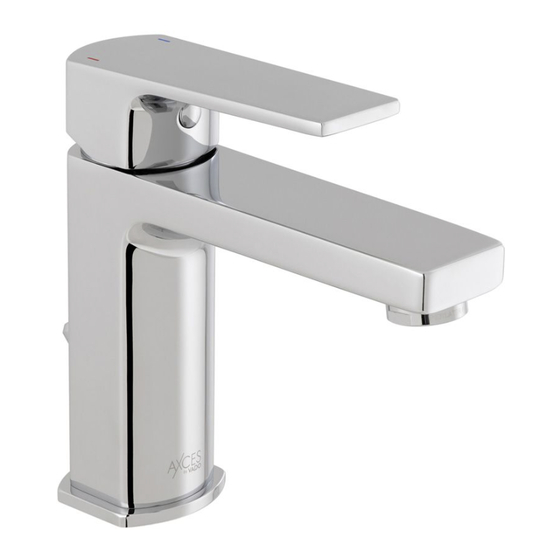

- Page 1 KEEP FOR FUTURE REFERENCE This instruction booklet covers model: AX-EKO-100-CP INSTALLATION / USER MANUAL VADO Wedmore Road, Cheddar, Somerset, England BS27 3EB MONO BASIN MIXER WITH tel 01934 744466 fax 01934 744345 POP-UP WASTE www.vado.com sales@vado.com Version 1, 1-8-19...
-
Page 2: Important - Please Read
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Dimensions Installation - Quick guide 159mm 120mm 50mm 48mm 60mm...
-
Page 4: Installation
Installation - Quick guide Installation Before installing your new mixer, flush Control handle through the pipe work to ensure removal of debris, turn off the water supply. Ensure the seal is in place in the bottom of the mixer body. Position the mixer on the basin. - Page 5 Installation - Pop-up waste Operation - mixer Dissemble the pop-up waste and Fig 1 Control reassemble onto the basin. (see Fig 1) Insert the vertical control rod down through the hole in the back Cold of the mixer body. Slide the bearing (lip nearest the ball) over the short end of the Plug horizontal control rod, push into...
-
Page 6: Cleaning Instructions
•The extended guarantee is only available if you have completed the Guarantee Registration Process. This can be done via the VADO website or via phone to our aftersales team. Registration must be completed within 6 months from date of purchase.
