- Page 1 [en] Instructions on mounting an use 5IX99290AU...
- Page 2 < 150 mm ≥ 150 mm...
- Page 4 X + 513 X + 488 X - 17 ( X ) MIN 827 / MAX 982 X + 86 X - 10 X + 213 X - 32 X + 211 106.5 97.1 R 20...

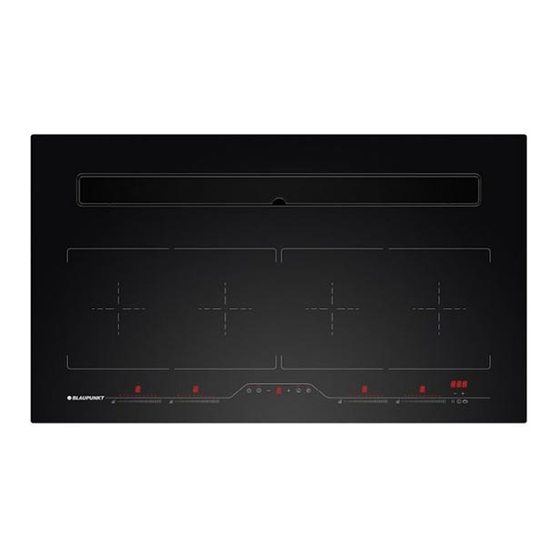

- Page 5 5IX99290 can be installed in 4 different modes to better suit the layout of every kitchen; choose the mounting type that is more suitable for your furniture.
- Page 6 Installation Version 1 optional...
- Page 7 Installation Version 1 MIN 827 / MAX 982 X-17,5 ( X ) R 10...
- Page 8 Installation Version 2 optional...
- Page 9 Installation Version 2 MIN 827 / MAX 982 X - 17,5 ( X ) R 10...
-
Page 10: Min
Installation Version 3 optional... -
Page 11: 340 Maxr
Installation Version 3 MIN 827 / MAX 982 X - 187,5 ( X ) R 10... - Page 12 Installation Version 4 optional...
-
Page 13: Maxr
Installation Version 4 MIN 827 / MAX 982 X -187,5 ( X ) R 10... - Page 14 Flush Cooktop Notes about Installation A flush cooktop is only appropriate for installation in counters made of natural stone (granite or marble), solid wood or those counters that have tiled. For counters made of other materials, ask the respective manufacturer, if their product is appropriate for the installation of a flush cooktop.
- Page 15 SEZ. A-A X-12.5 R 10 Netzanschlusskasten...
- Page 16 From this point on, the assembly instructions apply to each of the four setup modes; be careful to the position of the motor and the fitting, specific to the type of installation chosen...
- Page 17 AFV0010 optional optional optional...
- Page 18 X>140mm optional...
- Page 19 X<140mm optional optional...
- Page 20 optional optional...
- Page 21 optional pay attention! place exactly at 255mm...
- Page 24 90°...
- Page 27 VT02WA...
- Page 28 VT02WA...
- Page 29 Only for the “motion” version...
- Page 30 Only for the “motion” version...
- Page 31 It is strictly prohibited to place limbs or any other part of the human body or that of any animal in the vicinity of the range of motion of the baffle. Do not place pots, pan handles or any other object in the range of motion of the baffle.
- Page 33 optional...
- Page 34 optional optional...
- Page 35 pay attention! place exactly at 258 mm...
- Page 42 Charcoal filter installation and replacement SEZ. A-A Charcoal Filter optional optional...
- Page 43 Electrical connection diagram 220-240V 220-240V 220-240V The induction hob is composed of 2 modules, each one can absorb 3.7kW max. The total rated power of the product is 14,8kW (3,7kW+3,7kW+3,7kW+3,7kW)
- Page 44 ANWEISUNGEN WARNINGS Caution his instruction handbook is conserved together with the 5IX99290 for future consultation. If the equipment is sold or transferred to another person, make certain the instruction handbook is supplied together with it, so that the new user can become aware of the operation of the cooker hood and related warnings.
- Page 45 ANWEISUNGEN WARNINGS leaning and maintenance must not be carried out by children without proper supervision. f the power cord is damaged, it must be replaced by a qualified service centre or technician only. he electrical installation must have a breaker upstream from the appliance which ensures that all poles are disconnected with a contact gap of at least 3mm.
- Page 46 ANWEISUNGEN WARNINGS he induction hob should not be used as a work surface. The rough underside of food containers can scratch the surface of the cooktop. lways keep the cooking areas and underside of food containers perfectly dry. Fire hazard il and grease that are too hot will catch fire quickly.
- Page 47 ANWEISUNGEN WARNINGS Burn hazard AUTION: This appliance and its accessible parts become very hot during use. ay attention to avoid touching the heating elements. eep children under 8 years of age away from the appliance, unless they are continually monitored. o not place objects such as knives, forks, spoons or lids on the induction top, as they may overheat.
- Page 48 ANWEISUNGEN WARNINGS Non-suitable food containers ever use recipients made of: normal finegrained steel, glass, pottery, copper and aluminium. Do not place empty containers on the cooking zone, as they may cause damage. o not place hot recipients on the control panel, in the area of the pilot lights or on the edge of the cooking top, as they may cause damage.
- Page 49 ANWEISUNGEN WARNINGS ny interventions or repairs on the unit during the warranty period must be carried out solely by the manufacturer’s authorised service centre; conversely, the warranty will be is invalidated and terminated immediately. The manufacturer will not recognise any warranties under any circumstances for any problems subsequently encountered.
- Page 50 ANWEISUNGEN WARNINGS Noise emissions nduction can generate slight noise emissions, which can vary depending on the material, type of pot and power setting selected. When the cooktop is used frequently, the cooling fan turns itself on to protect the electronics, generating a buzzing sound: this is perfectly normal.
- Page 51 FUNZIONAMENTO OPERATION Aspira is equipped with touch sensitive electronic sensor keys. Switching on the cooktop Press the power button If no other control is enabled, the hob turns off automatically for safety reasons. Activating the desired cooking zones Every cooking zone is equipped with its own dedicated slider. The hob automatically detects which cooking zone to activate, based on the position of the pot.
- Page 52 FUNZIONAMENTO OPERATION Power Operating limit in minutes Toggle Fun- ction Liv.1- Bridged mode If the pot used is large enough to cover two adjacent cooking zones, the slider of each zone turns on; at this point, touch both sliders simultaneously to activate the Bridge function, indicated by the symbols [ and ], that allows you to control both cooking zones simultaneously, as a single larger zone.
- Page 53 FUNZIONAMENTO OPERATION Pod detection Place on the cooking zones a pot, of suitable material and diameter, as shown in the section on suitable cookware. The zones will activate. If the pots used are not suitable, hence not recognized by the various cooking zones, the potdetection function will indicate this problem with the symbol “u”...
- Page 54 FUNZIONAMENTO OPERATION By pressing this key with at least one cooking zone active, the pause function is activated; this function stops temporarily (for a maximum of 10 min.) any plane activity including any active timers. To disable this function press again the pause key and unlock by acting on the right slider. If the cooking plane is unintentionally extinguished (with at least one of the cooking zones active) it is possible to call up all the functions previously activated with the recall function.
- Page 55 FUNZIONAMENTO OPERATION Display This device allows you to choose the operating mode (suction or filtration), depending on the installation. Upon first start-up, the display shows which operating mode is enabled. Filtration: the display shows the letters C and the filter reset button flashes quickly. Suction: the display indicates the letter C and the filter reset button is off.
- Page 56 FUNZIONAMENTO OPERATION A:Timer key: when touching the key, the timer will be enabled, regardless of the selected suction speed. Upon first touch, the time will be 5 minutes (shown by a flashing button on the key), the second touch corresponds to 10 minutes (double flashing time) and the third touch to 20 minutes (triple flashing time) The timer key will flash throughout the entire operation.
- Page 57 CLEANING AND MAINTENANCE FUNZIONAMENTO Cooking top The cooking top must be cleaned after each use. Allow the appliance to cool before cleaning it. Prior to cleaning the ceramic glass cooking hob, it is advisable to activate the Child Lock function, so that the cooking top is not switched on accidentally (see Child Lock function).
- Page 58 CLEANING AND MAINTENANCE FUNZIONAMENTO OPERATION TABLE OF COOKING TOP ERRORS These errors appear on the cooking top display. Error code Description Possible causes Solution Continuous activation of one or more keys. The Liquids or cookware on Clean the control zone or flashing control turns off after 10 the control zones.
- Page 59 Service 1800 252 878 658 www.blaupunkt-einbaugeraete.com Australia CustomerCare@blaupunktAU.com...
